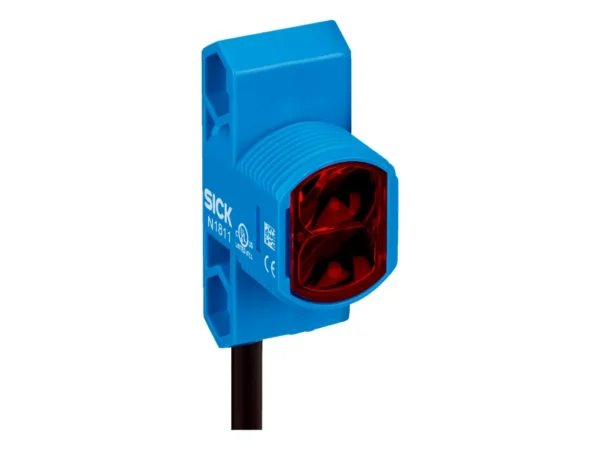

Home Fotoelektrik Sensörler ZTE18-2AB1G2 – 1095833 🔍 ZTE18-2AB1G2 – 1095833 ✉ Teklif Al Teklif Al Stok kodu: 1095833 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Energetic Dimensions (W x H x D) 13.6 mm x 34.8 mm x 21.9 mm Housing design (light emission) Hybrid Thread diameter (housing) M18 Mounting system type M18, head/side (24.1 … 25.4 mm) Housing color Blue Sensing range max. 0 mm … 700 mm Sensing range 0 mm … 520 mm Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 25 mm (1,000 mm) Wave length 625 nm Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 10 % Current consumption ≤ 15 mA Switching output Push-pull: PNP/NPN Switching mode Light switching, Dark switching Switching output detail Switching output Q1 Push-pull: PNP/NPN, Light switching Switching output Q2 Push-pull: PNP/NPN, Dark switching Output current Imax. 100 mA Response time ≤ 1 ms Switching frequency 500 kHz Connection type Cable open end, 4-wire, 2,000 mm Cable material PVC Conductor cross section 0.13 mm² Circuit protection A B D Protection class III Weight 4.54 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270903 ECLASS 5.1.4 27270903 ECLASS 6.0 27270903 ECLASS 6.2 27270903 ECLASS 7.0 27270903 ECLASS 8.0 27270903 ECLASS 8.1 27270903 ECLASS 9.0 27270903 ECLASS 10.0 27270903 ECLASS 11.0 27270903 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Cable open end, 4-wire, 2,000 mm Connection type Detail Conductor cross section 0.13 mm² Cable material PVC Pinouts BN + (L+) WH Q2 BU – (M) BK Q1 İlgili ürünler Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 50 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA2-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Accessories, Mounting, Kit – 129-135ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 80 mm Gap, Plastic, 3 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA3-P3ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git 18 mm Cylindrical Sensor, 18 mm Cylindrical, Transmitted Beam Receiver, Infrared, Manually Adjustable, PNP, DC Complementary LO/DO, 4 Pin Micro Quick Disconnect, Plastic, 18mm Mount, 1.00 ms, 3 mm Minimum Sensing Distance, 16000 mm Operating Distance, 160 – 42CA-R1MPA1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Energetic Dimensions (W x H x D) 13.6 mm x 34.8 mm x 21.9 mm Housing design (light emission) Hybrid Thread diameter (housing) M18 Mounting system type M18, head/side (24.1 … 25.4 mm) Housing color Blue Sensing range max. 0 mm … 700 mm Sensing range 0 mm … 520 mm Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 25 mm (1,000 mm) Wave length 625 nm Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 10 % Current consumption ≤ 15 mA Switching output Push-pull: PNP/NPN Switching mode Light switching, Dark switching Switching output detail Switching output Q1 Push-pull: PNP/NPN, Light switching Switching output Q2 Push-pull: PNP/NPN, Dark switching Output current Imax. 100 mA Response time ≤ 1 ms Switching frequency 500 kHz Connection type Cable open end, 4-wire, 2,000 mm Cable material PVC Conductor cross section 0.13 mm² Circuit protection A B D Protection class III Weight 4.54 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270903 ECLASS 5.1.4 27270903 ECLASS 6.0 27270903 ECLASS 6.2 27270903 ECLASS 7.0 27270903 ECLASS 8.0 27270903 ECLASS 8.1 27270903 ECLASS 9.0 27270903 ECLASS 10.0 27270903 ECLASS 11.0 27270903 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Cable open end, 4-wire, 2,000 mm Connection type Detail Conductor cross section 0.13 mm² Cable material PVC Pinouts BN + (L+) WH Q2 BU – (M) BK Q1
