| Features |
| Functional principle |

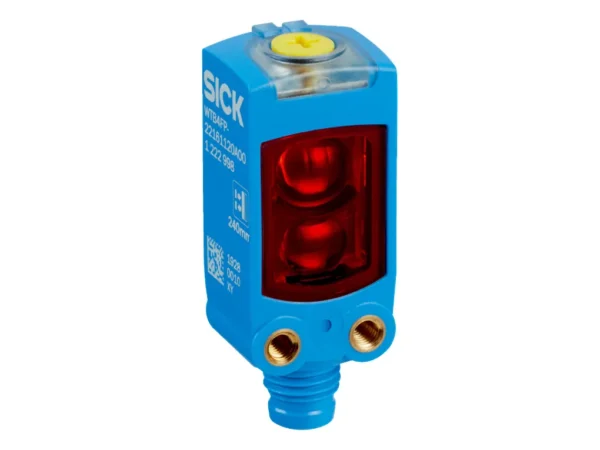

Photoelectric proximity sensor |
| Functional principle detail |
Background suppression, MultiSwitch |
| Sensing range |
|
| Sensing range min. |
4 mm |
| Sensing range max. |
220 mm |
| Adjustable switching threshold for background suppression |
15 mm … 220 mm |
| Reference object |
Object with 90% remission factor (complies with standard white according to DIN 5033) |
| Minimum distance between set sensing range and background (black 6% / white 90%) |
3 mm, at a distance of 80 mm |
| Recommended sensing range for the best performance |
40 mm … 140 mm |
|
| Distance value |
|
| Measuring range |
15 mm … 220 mm |
| Resolution |
1 mm |
| Repeatability |
0,3 mm … 2,2 mm |
| Accuracy |
Typ. 3.0 mm at 15 … 50 mm distance, Typ. 4.5 mm at 50 … 100 mm distance, Typ. 6.5 mm at 100 … 150 mm distance, Typ. 12 mm at 150 … 220 mm distance |
| Distance value output |
Via IO-Link |
| Update rate of the distance value |
20 ms |
|
| Emitted beam |
|
| Light source |
PinPoint LED |
| Type of light |
Visible red light |
| Shape of light spot |
Point-shaped |
| Light spot size (distance) |
Ø 4.2 mm (130 mm) |
| Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) |
< +/- 1.5° (at Ta = +23 °C) |
|
| Key LED figures |
|
| Normative reference |
EN 62471:2008-09 | IEC 62471:2006, modified |
| LED risk group marking |
Free group |
| Wave length |
635 nm |
| Average service life |
100,000 h at Ta = +25 °C |
|
| Smallest detectable object (MDO) typ. |
|
|
0.2 mm (At 130 mm distance (object with 90% remission (complies with standard white according to DIN 5033))) |
|
| Adjustment |
|
| Teach-in button |
BluePilot: For setting the sensing range |
| IO-Link |
For configuring the sensor parameters and Smart Task functions |
|
| Indication |
|
| LED blue |
BluePilot: Display of mode, display of output states QL1 (LED 1-3 permanently on) and QL2 (LED 5-7 permanently on) |
| LED green |
Operating indicator
Static on: power on
Flashing: IO-Link mode |
| LED yellow |
Status of received light beam
Static on: object present
Static off: object not present |
|
|
| Safety-related parameters |
| MTTFD |
642 years |
| DCavg |
0 % |
| TM (mission time) |
20 years (EN ISO 13849, rate of use: 60 %) |
|
| Communication interface |
| IO-Link |
✔ , IO-Link V1.1 |
| Data transmission rate |
COM2 (38,4 kBaud) |
| Cycle time |
2.3 ms |
| Process data length |
16 Bit |
| Process data structure |
Bit 0 = switching signal QL1 |
|
Bit 1 = switching signal QL2 |
|
Process data structure: A: Bit 2 … 15 = Current receiver level (live). Process data structure B: Bit 2 … 15 = Distance to object. Can be switched between A and B via IO-Link. |
| VendorID |
26 |
| DeviceID HEX |
0x8002B4 |
| DeviceID DEC |
8389300 |
| Compatible master port type |
A |
| SIO mode support |
Yes |
|
|
| Electrical data |
| Supply voltage UB |
10 V DC … 30 V DC |
| Ripple |
≤ 5 Vpp |
| Usage category |
DC-12 (According to EN 60947-5-2)
DC-13 (According to EN 60947-5-2)
|
| Current consumption |
≤ 25 mA, without load. At UB = 24 V |
| Protection class |
III |
| Digital output |
|
| Number |
2 (individually adjustable) |
| Type |
Push-pull: PNP/NPN |
| Signal voltage PNP HIGH/LOW |
Approx. UB-2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW |
Approx. UB / < 2.5 V |
| Output current Imax. |
≤ 100 mA |
| Circuit protection outputs |
Reverse polarity protected |
|
Overcurrent protected |
|
Short-circuit protected |
| Response time |
≤ 1,000 µs |
| Repeatability (response time) |
360 µs |
| Switching frequency |
500 Hz |
|
| Pin/Wire assignment |
|
| Function of pin 4/black (BK) |
Digital output, dark switching, object present → output QL1 LOW; IO-Link communication C |
| Function of pin 4/black (BK) – detail |
The pin 4 function of the sensor can be configured, Additional possible settings via IO-Link |
| Function of pin 2/white (WH) |
Digital output, dark switching, object present → output QL2 LOW |
| Function of pin 2/white (WH) – detail |
The pin 2 function of the sensor can be configured, Additional possible settings via IO-Link |
|
|
| Mechanical data |
| Housing |
Rectangular |
| Design detail |
Flat |
| Dimensions (W x H x D) |
16 mm x 40.1 mm x 12.1 mm |
| Connection |
Male connector M8, 4-pin |
| Material |
|
| Housing |
Plastic, VISTAL® |
| Front screen |
Plastic, PMMA |
| Male connector |
Plastic, VISTAL® |
|
| Weight |
Approx. 30 g |
| Maximum tightening torque of the fixing screws |
0.4 Nm |
|
| Ambient data |
| Enclosure rating |
IP66 (EN 60529)
IP67 (EN 60529)
|
| Ambient operating temperature |
–40 °C … +60 °C |
| Ambient temperature, storage |
–40 °C … +75 °C |
| Typ. Ambient light immunity |
Artificial light: ≤ 50,000 lx
Sunlight: ≤ 50,000 lx
|
| Shock resistance |
30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27)) |
| Vibration resistance |
10 Hz … 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6)) |
| Air humidity |
35 % … 95 %, Relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) |
EN 60947-5-2 |
| Resistance to cleaning agent |
ECOLAB |
| UL File No. |
NRKH.E181493 & NRKH7.E181493 |
|
| Smart Task |
| Smart Task name |
Base logics |
| Logic function |
Direct
AND
OR
Window
Hysteresis
|
| Timer function |
Deactivated
On delay
Off delay
ON and OFF delay
Impulse (one shot)
|
| Inverter |
Yes |
| Switching frequency |
SIO Logic: 450 Hz
IOL: 450 Hz
|
| Response time |
SIO Logic: 1100 µs
IOL: 1100 µs
|
| Repeatability |
SIO Logic: 400 µs
IOL: 450 µs
|
| Switching signal |
|
| Switching signal QL1 |
Switching output |
| Switching signal QL2 |
Switching output |
|
|
| Diagnosis |
| Device temperature |
|
| Measuring range |
Very cold, cold, moderate, warm, hot |
|
| Device status |
Yes |
| Detailed device status |
Yes |
| Operating hour counter |
Yes |
| Operating hours counter with reset function |
Yes |
| Quality of teach |
Yes |
|
| Classifications |
| ECLASS 5.0 |
27270904 |
| ECLASS 5.1.4 |
27270904 |
| ECLASS 6.0 |
27270904 |
| ECLASS 6.2 |
27270904 |
| ECLASS 7.0 |
27270904 |
| ECLASS 8.0 |
27270904 |
| ECLASS 8.1 |
27270904 |
| ECLASS 9.0 |
27270904 |
| ECLASS 10.0 |
27270904 |
| ECLASS 11.0 |
27270904 |
| ECLASS 12.0 |
27270903 |
| ETIM 5.0 |
EC002719 |
| ETIM 6.0 |
EC002719 |
| ETIM 7.0 |
EC002719 |
| ETIM 8.0 |
EC002719 |
| UNSPSC 16.0901 |
39121528 |
|
