| Features |
| Functional principle |

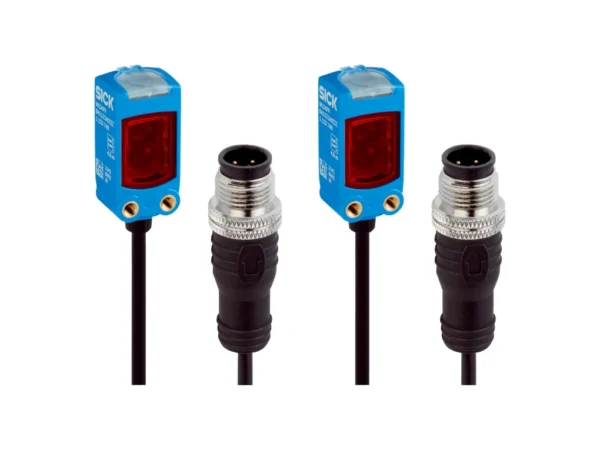

Through-beam photoelectric sensor |
| Sensing range |
|
| Sensing range min. |
0 m |
| Sensing range max. |
10 m |
| Maximum distance range from receiver to sender (operating reserve 1) |
0 m … 10 m |
| Recommended distance range from receiver to sender (operating reserve 2) |
0 m … 7.5 m |
| Recommended sensing range for the best performance |
0 m … 7.5 m |
|
| Emitted beam |
|
| Light source |
PinPoint LED |
| Type of light |
Visible red light |
| Shape of light spot |
Point-shaped |
| Light spot size (distance) |
Ø 40 mm (1,000 mm) |
| Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) |
< +/- 1.5° (at Ta = +23 °C) |
|
| Key LED figures |
|
| Normative reference |
EN 62471:2008-09 | IEC 62471:2006, modified |
| LED risk group marking |
Free group |
| Wave length |
635 nm |
| Average service life |
100,000 h at Ta = +25 °C |
|
| Adjustment |
|
| IO-Link |
For configuring the sensor parameters and Smart Task functions |
| Wire/pin |
For deactivation of the sender and execution of test logic |
|
| Indication |
|
| LED blue |
BluePilot: Alignment aid |
| LED green |
Operating indicator
Static on: power on
Flashing: IO-Link mode |
| LED yellow |
Status of received light beam
Static on: object not present
Static off: object present |
|
| Part number of individual components |
WSO4FP-843ZZ1A0ZZZ, 2126123
WEO4FP-84161100A00, 2126122
|
|
| Safety-related parameters |
| MTTFD |
574 years |
| DCavg |
0 % |
| TM (mission time) |
20 years |
|
| Communication interface |
| IO-Link |
✔ , IO-Link V1.1 |
| Data transmission rate |
COM2 (38,4 kBaud) |
| Cycle time |
2.3 ms |
| Process data length |
16 Bit |
| Process data structure |
Bit 0 = switching signal QL1 |
|
Bit 1 = switching signal QL2 |
| VendorID |
26 |
| DeviceID HEX |
0x800193 |
| DeviceID DEC |
8389011 |
| Compatible master port type |
A |
| SIO mode support |
Yes |
|
|
| Electrical data |
| Supply voltage UB |
10 V DC … 30 V DC |
| Ripple |
≤ 5 Vpp |
| Usage category |
DC-12 (According to EN 60947-5-2)
DC-13 (According to EN 60947-5-2)
|
| Current consumption |
≤ 20 mA, without load. At UB = 24 V |
| Protection class |
III |
| Digital output |
|
| Number |
2 (Complementary) |
| Type |
Push-pull: PNP/NPN |
| Signal voltage PNP HIGH/LOW |
Approx. UB-2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW |
Approx. UB / < 2.5 V |
| Output current Imax. |
≤ 100 mA |
| Circuit protection outputs |
Reverse polarity protected |
|
Overcurrent protected |
|
Short-circuit protected |
| Response time |
≤ 500 µs |
| Switching frequency |
1,000 Hz |
|
| Pin/Wire assignment, sender |
|
| Function of pin 4/black (BK) |
Input, sender off, LOW active |
|
| Pin/Wire assignment, receiver |
|
| Function of pin 4/black (BK) |
Digital output, dark switching, object present → output ǬL1 HIGH; IO-Link communication C |
| Function of pin 4/black (BK) – detail |
The pin 4 function of the sensor can be configured, Additional possible settings via IO-Link |
| Function of pin 2/white (WH) |
Digital output, dark switching, object present → output ǬL1 HIGH |
| Function of pin 2/white (WH) – detail |
The pin 2 function of the sensor can be configured, Additional possible settings via IO-Link |
|
|
| Mechanical data |
| Housing |
Rectangular |
| Design detail |
Flat |
| Dimensions (W x H x D) |
16 mm x 40.1 mm x 12.1 mm |
| Connection |
Cable with M12 male connector, 4-pin, 182 mm |
| Connection detail |
|
| Deep-freeze property |
Do not bend below 0 °C |
| Conductor size |
0.14 mm² |
| Cable diameter |
Ø 3.4 mm |
| Length of cable (L) |
140 mm |
|
| Material |
|
| Housing |
Plastic, VISTAL® |
| Front screen |
Plastic, PMMA |
| Cable |
PVC |
| Male connector |
Plastic, VISTAL® |
|
| Weight |
Approx. 30 g |
| Maximum tightening torque of the fixing screws |
0.4 Nm |
|
| Ambient data |
| Enclosure rating |
IP66 (EN 60529)
IP67 (EN 60529)
|
| Ambient operating temperature |
–40 °C … +60 °C |
| Ambient temperature, storage |
–40 °C … +75 °C |
| Typ. Ambient light immunity |
Artificial light: ≤ 15,000 lx
Sunlight: ≤ 50,000 lx
|
| Shock resistance |
30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27)) |
| Vibration resistance |
10 Hz … 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6)) |
| Air humidity |
35 % … 95 %, Relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) |
EN 60947-5-2 |
| Resistance to cleaning agent |
ECOLAB |
| UL File No. |
NRKH.E181493 & NRKH7.E181493 |
|
| Smart Task |
| Smart Task name |
Base logics |
| Logic function |
Direct
AND
OR
|
| Timer function |
Deactivated
On delay
Off delay
ON and OFF delay
Impulse (one shot)
|
| Inverter |
Yes |
| Switching frequency |
SIO Logic: 800 Hz
IOL: 750 Hz
|
| Response time |
SIO Logic: 600 µs
IOL: 650 µs
|
| Repeatability |
SIO Logic: 200 µs
IOL: 250 µs
|
| Switching signal |
|
| Switching signal QL1 |
Switching output |
| Switching signal ǬL1 |
Switching output |
|
|
| Diagnosis |
| Device temperature |
|
| Measuring range |
Very cold, cold, moderate, warm, hot |
|
| Device status |
Yes |
| Detailed device status |
Yes |
| Operating hour counter |
Yes |
| Operating hours counter with reset function |
Yes |
| Quality of teach |
Yes |
|
| Classifications |
| ECLASS 5.0 |
27270901 |
| ECLASS 5.1.4 |
27270901 |
| ECLASS 6.0 |
27270901 |
| ECLASS 6.2 |
27270901 |
| ECLASS 7.0 |
27270901 |
| ECLASS 8.0 |
27270901 |
| ECLASS 8.1 |
27270901 |
| ECLASS 9.0 |
27270901 |
| ECLASS 10.0 |
27270901 |
| ECLASS 11.0 |
27270901 |
| ECLASS 12.0 |
27270901 |
| ETIM 5.0 |
EC002716 |
| ETIM 6.0 |
EC002716 |
| ETIM 7.0 |
EC002716 |
| ETIM 8.0 |
EC002716 |
| UNSPSC 16.0901 |
39121528 |
|
