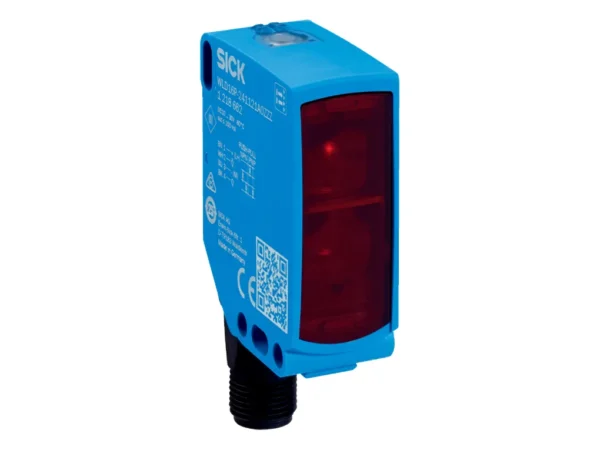

| Features |
| Functional principle |
Photoelectric retro-reflective sensor |
| Functional principle detail |
Dual lens |
| Sensing range |
|
| Sensing range min. |
0.25 m |
| Sensing range max. |
14 m |
| Maximum distance range from reflector to sensor (operating reserve 1) |
0.25 m … 14 m |
| Recommended distance range from reflector to sensor (operating reserve 3,75) |
0.25 m … 10 m |
| Reference reflector |
Reflector PL80A |
| Recommended sensing range for the best performance |
0.25 m … 10 m |
|
| Polarisation filters |
Yes |
| Emitted beam |
|
| Light source |
PinPoint LED |
| Type of light |
Visible red light |
| Shape of light spot |
Point-shaped |
| Light spot size (distance) |
Ø 16 mm (1 m) |
| Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) |
< +/- 1.0° (at Ta = +23 °C) |
|
| Key LED figures |
|
| Normative reference |
EN 62471:2008-09 | IEC 62471:2006, modified |
| LED risk group marking |
Free group |
| Wave length |
635 nm |
| Average service life |
100,000 h at Ta = +25 °C |
|
|
|
| Indication |
|
| LED green |
Operating indicator
Static on: power on |
| LED yellow |
Status of received light beam
Static on: object not present
Static off: object present
Flashing: Below the 1.5 function reserve |
|
|
| Safety-related parameters |
| MTTFD |
2,009 years |
| DCavg |
0% |
| TM (mission time) |
20 years (EN ISO 13849, rate of use: 60 %) |
|
| Electrical data |
| Supply voltage UB |
10 V DC … 30 V DC |
| Ripple |
≤ 5 Vpp |
| Usage category |
DC-12 (According to EN 60947-5-2)
DC-13 (According to EN 60947-5-2)
|
| Current consumption |
≤ 30 mA, without load. At UB = 24 V |
| Protection class |
III |
| Digital output |
|
| Number |
2 (Complementary) |
| Type |
Push-pull: PNP/NPN |
| Signal voltage PNP HIGH/LOW |
Approx. UB-2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW |
Approx. UB / < 2.5 V |
| Output current Imax. |
≤ 100 mA |
| Circuit protection outputs |
Reverse polarity protected |
|
Overcurrent and short-circuit protected |
| Response time |
≤ 500 µs |
| Repeatability (response time) |
150 µs |
| Switching frequency |
1,000 Hz |
|
| Pin/Wire assignment |
|
| Function of pin 4/black (BK) |
Digital output, light switching, object present → output Q LOW |
| Function of pin 2/white (WH) |
Digital output, dark switching, object present → output Ǭ HIGH |
|
|
| Mechanical data |
| Housing |
Rectangular |
| Dimensions (W x H x D) |
20 mm x 55.7 mm x 42 mm |
| Connection |
Male connector M12, 4-pin |
| Material |
|
| Housing |
Plastic, VISTAL® |
| Front screen |
Plastic, PMMA |
| Male connector |
Plastic, VISTAL® |
|
| Weight |
Approx. 50 g |
| Maximum tightening torque of the fixing screws |
1.3 Nm |
|
| Ambient data |
| Enclosure rating |
IP66 (EN 60529)
IP67 (EN 60529)
IP69 (EN 60529)
|
| Ambient operating temperature |
–40 °C … +60 °C |
| Ambient temperature, storage |
–40 °C … +75 °C |
| Shock resistance |
50 g, 11 ms (25 positive and 25 negative shocks per axis, for X, Y, Z axes, 150 shocks in total (EN60068-2-27))
50 g, 6 ms (5,000 positive and 5,000 negative shocks per axis, for X, Y, Z axes, 30,000 shocks in total (EN60068-2-27))
|
| Vibration resistance |
10 Hz … 2,000 Hz (Amplitude 0.5 mm / 10 g, 20 sweeps per axis, for X, Y, Z axes, 1 octave/min, (EN60068-2-6)) |
| Air humidity |
35 % … 95 %, Relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) |
EN 60947-5-2 |
| Resistance to cleaning agent |
ECOLAB |
| UL File No. |
NRKH.E181493 & NRKH7.E181493 |
|
| Classifications |
| ECLASS 5.0 |
27270902 |
| ECLASS 5.1.4 |
27270902 |
| ECLASS 6.0 |
27270902 |
| ECLASS 6.2 |
27270902 |
| ECLASS 7.0 |
27270902 |
| ECLASS 8.0 |
27270902 |
| ECLASS 8.1 |
27270902 |
| ECLASS 9.0 |
27270902 |
| ECLASS 10.0 |
27270902 |
| ECLASS 11.0 |
27270902 |
| ECLASS 12.0 |
27270902 |
| ETIM 5.0 |
EC002717 |
| ETIM 6.0 |
EC002717 |
| ETIM 7.0 |
EC002717 |
| ETIM 8.0 |
EC002717 |
| UNSPSC 16.0901 |
39121528 |
|
