Tecnichal data

Features

Items supplied

Accessories not included with delivery, please order seperately.

Performance

Type

48 mm installation housing – IN cylinder mounting

Pressure pipe/End cap

10 mm / Flat

Connection type

Connecting cable, 3-wire, 500 mm

Direction of connection

Radial

Measuring range
Measured values	Positioning
Position (F.S.)	0 mm … 300 mm
Null zone	30 mm
Damping zone	30 mm

Operating conditions
Fluid temperature	–30 °C … +95 °C
Air humidity	90 % (Condensation not permitted)
Operating pressure P_N	400 bar
Supply voltage	12 V DC (8 … 16 V DC)
Switch-on time	< 250 ms
Switch-on current	Typ. 2.5 A/ 50 µs
Measuring frequency (internal)	2 ms
Transmission rate (cycle time)	Steady

Accuracy
Setpoint tolerance	≤ ± 1 mm
Resolution	Typ. 0.1 mm (noise-free)
Hysteresis	± 0,1 mm
Repeatability	Typ. ± 0.2 mm
Linearity	Typ. ± 0.25 mm (measuring range 50 to 500 mm)
	Typ. ± 0.04% F.S. (measuring range from 500 to 2,500 mm)

Temperature drift
Warming up phase	Typ. ≤ ± 0.25 mm (2 min)
In the operational status	Typ. ± 0.25 mm (measuring range 50 to 500 mm)
	Typ. ± 0.04% F.S. (measuring range from 500 to 2,500 mm)

MTTFd

69 years (EN ISO 13849-1)

Interfaces

Communication interface	Analog
Communication Interface detail	Voltage
Voltage output	0.5 V DC … 4.5 V DC

Electrical data

Connection type

Connecting cable, 3-wire, 500 mm

Electrical operation
Supply voltage	12 V DC (8 … 16 V DC)
Residual ripple	< 1% S-S
Power consumption	≤ 0.75 W
Current consumption	≤ 60 mA
Load resistance	RL ≥ 10 kΩ

Overvoltage protection during power-up (60 s)

≤ 18 V at all poles during power-up (60 s)

≤ 24 V To GND during power-up (60 s)

Reverse polarity protection

≤ 36 V (at all poles) (ISO 16750-2)

Insulation resistance

Riso ≥ 10 MΩ, 60 s (ISO 16750-2)

Dielectric strength

500 V DC, 0 V DC (60 s) to housing (R_ISO ≥ 1 MΩ) (ISO 16750-2)

Short-circuit protection

V_S – GND on housing

Mechanical data

Dimensions
Housing	48 mm, 48f7 for IN cylinder mounting – cylinder bore hole 48H8
Ø pressure pipe	10 mm
Ø O-ring	40.87 mm x 3.53 mm
Ø support ring	42.6 mm x 48 mm x 1.4 mm
Ø connecting cable	Ø 5.0 mm; 3 x 0.38 mm² (AWG22), stripped
Length of cable	500 mm

Material
Housing	Stainless steel 1.4305 (AISI 303)
Pressure pipe	Stainless steel 1.4404, AISI 316L
O-ring	NBR 70
Support ring	PTFE
Sheath	PUR

Ambient data

EMC	EU Directive 2014/30 / EU CE marking
Generic standards	EN 61000-6-2/61000-6-3
Agricultural and forestry machinery	EN ISO 14982
Transient pulses	ISO 7637-2/ISO 16750-2
ESD (air and contact discharge)	ISO 61000-4-2
	ISO 10605

Vibration
Sine	20 g (sine) / 55 … 2,000 Hz / 3×24 h (IEC 60068-2-6 Fc)
Sine over noise	18 g (r.m.s) / 10 … 2,000 Hz / 3×36 h (IEC 60068-2-80 Fi)
Broadband noise (resonance peaks removed)	20 g (r.m.s) / 10 … 2,000 Hz / 3×48 h (IEC 60068-2-64 Fh)

Pressure load
Operating pressure P_N	400 bar
Overload pressure P_max = P_N x 1.2	480 bar
Test pressure P_stat = P_N x 1.5	600 bar

Temperature and air humidity
Storage	–20 °C … +65 °C
Operation (electronics)	–40 °C … +105 °C
Maximum air humidity	90 % (Condensation not permitted)

Enclosure rating
Housing	IP67 (EN 60529)

Classifications

eCl@ss 5.0	27270705
eCl@ss 5.1.4	27270705
eCl@ss 6.0	27270705
eCl@ss 6.2	27270705
eCl@ss 7.0	27270705
eCl@ss 8.0	27270705
eCl@ss 8.1	27270705
eCl@ss 9.0	27270705
eCl@ss 10.0	27270705
eCl@ss 11.0	27270705
eCl@ss 12.0	27274304
ETIM 5.0	EC002544
ETIM 6.0	EC002544
ETIM 7.0	EC002544
ETIM 8.0	EC002544
UNSPSC 16.0901	41111613

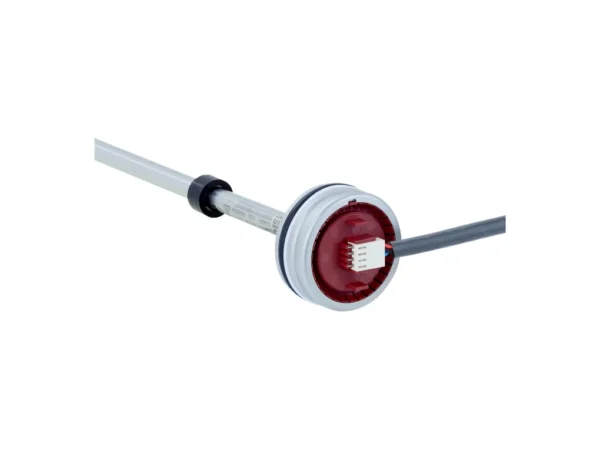

MAX48N-11V10K20300 – 1219720
