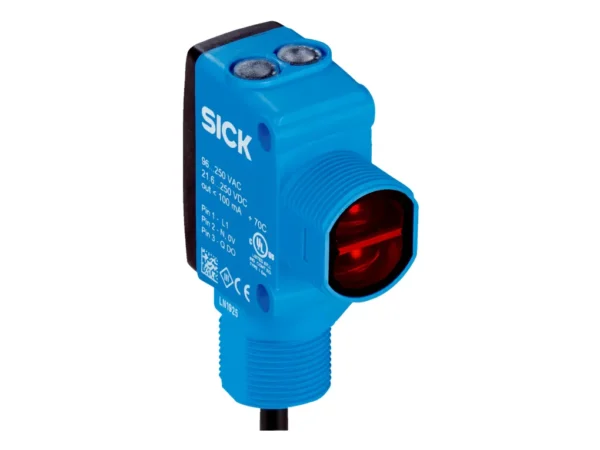

Home Fotoelektrik Sensörler HTB18B-M1G2AB – 1105099 🔍 HTB18B-M1G2AB – 1105099 ✉ Teklif Al Teklif Al Stok kodu: 1105099 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Dimensions (W x H x D) 16.2 mm x 50.1 mm x 34.4 mm Housing design (light emission) Hybrid Thread diameter (housing) M18 Mounting system type M18, head/M18, base/side (24.1 … 25.4 mm) Housing color Blue Sensing range max. 5 mm … 300 mm Sensing range 5 mm … 150 mm Type of light Visible red light Light source PinPoint LED Light spot size (distance) 7 mm (300 mm) Wave length 631 nm Adjustment Potentiometer, right Sensing range Potentiometer, left None Special features – Mechanics/electronics Supply voltage 21.6 V DC … 250 V DC, 96 V AC … 250 V AC Current consumption ≤ 10 mA Switching output MOSFET Switching mode Dark switching Switching output detail Switching output Q1 MOSFET, Dark switching Output current Imax. ≤ 100 mA Response time ≤ 0.5 ms Switching frequency 1,000 Hz Connection type Cable open end, 2,000 mm Cable material PVC Conductor cross section 0.2 mm² Circuit protection A B D Protection class II Weight 18 g Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP67 IP69K Items supplied Fastening nut (1x), M18, plastic, black, flat Electromagnetic compatibility (EMC) EN 60947-5-2 (The sensor complies with the Radio Safety Requirements (EMC) for the industrial sector (Radio Safety Class A). It may cause radio interference if used in a residential area.) Ambient operating temperature –40 °C … +65 °C Ambient temperature, storage –40 °C … +75 °C UL File No. E189383 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270904 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Cable open end, 2,000 mm Connection type Detail Conductor cross section 0.2 mm² Cable material PVC Pinouts BN L1 BU N BK Q İlgili ürünler 18 mm Cylindrical Sensor, 18 mm Cylindrical, Transmitted Beam Receiver, Infrared, Manually Adjustable, PNP, DC Complementary LO/DO, 4 Pin Micro Quick Disconnect, Plastic, 18mm Mount, 1.00 ms, 3 mm Minimum Sensing Distance, 16000 mm Operating Distance, 160 – 42CA-R1MPA1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Cylindrical Style, Diffuse, 100-100 mm Sensing Range, Visible Red LED, Light Operate – Dark Operate Output, PNP Output, Smooth Barrel, 18 mm Barrel, 4 Pin Micro M12 Integral Quick Disconnect Connector, Adjustable Sensitivity, 42CS – 42CSS-D2MPA1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 120 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA4-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Accessories, Reflector, Fog Resistant, 100X100 mm – 92-108ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Dimensions (W x H x D) 16.2 mm x 50.1 mm x 34.4 mm Housing design (light emission) Hybrid Thread diameter (housing) M18 Mounting system type M18, head/M18, base/side (24.1 … 25.4 mm) Housing color Blue Sensing range max. 5 mm … 300 mm Sensing range 5 mm … 150 mm Type of light Visible red light Light source PinPoint LED Light spot size (distance) 7 mm (300 mm) Wave length 631 nm Adjustment Potentiometer, right Sensing range Potentiometer, left None Special features – Mechanics/electronics Supply voltage 21.6 V DC … 250 V DC, 96 V AC … 250 V AC Current consumption ≤ 10 mA Switching output MOSFET Switching mode Dark switching Switching output detail Switching output Q1 MOSFET, Dark switching Output current Imax. ≤ 100 mA Response time ≤ 0.5 ms Switching frequency 1,000 Hz Connection type Cable open end, 2,000 mm Cable material PVC Conductor cross section 0.2 mm² Circuit protection A B D Protection class II Weight 18 g Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP67 IP69K Items supplied Fastening nut (1x), M18, plastic, black, flat Electromagnetic compatibility (EMC) EN 60947-5-2 (The sensor complies with the Radio Safety Requirements (EMC) for the industrial sector (Radio Safety Class A). It may cause radio interference if used in a residential area.) Ambient operating temperature –40 °C … +65 °C Ambient temperature, storage –40 °C … +75 °C UL File No. E189383 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270904 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Cable open end, 2,000 mm Connection type Detail Conductor cross section 0.2 mm² Cable material PVC Pinouts BN L1 BU N BK Q
