Name: SICK 1100057 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1100057
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle

Photoelectric retro-reflective sensor

Functional principle detail

Dual lens

Dimensions (W x H x D)

16.2 mm x 48.5 mm x 31.8 mm

Housing design (light emission)

Hybrid

Thread diameter (housing)

M18

Mounting system type

M18, head/side (24.1 … 25.4 mm)

Housing color

Blue

Sensing range max.

0.1 m … 12 m

Sensing range

0.1 m … 10 m

Type of light

Visible red light

Light source

Laser

Light spot size (distance)

2 mm (2 m)

Wave length

655 nm

Laser class

Adjustment
Potentiometer, right	Teach-in
Potentiometer, left	None

Special applications

Detecting small objects

Special features

Signal strength light bar

Mechanics/electronics

Supply voltage

10 V DC … 30 V DC

Ripple

< 5 V_pp

Current consumption

≤ 20 mA

Switching output

Push-pull: PNP/NPN

Output function

Complementary

Switching mode

Light/dark switching

Switching output detail
Switching output Q1	Push-pull: PNP/NPN, Light switching
Switching output Q2	Push-pull: PNP/NPN, Dark switching

Output current I_max.

≤ 100 mA

Response time

≤ 0.5 ms

Switching frequency

1,000 Hz

Connection type

Male connector M12, 4-pin

Circuit protection

Protection class

III

Weight

18 g

Polarisation filter

✔

Housing material

Plastic, VISTAL®

Optics material

Plastic, PMMA

Enclosure rating

IP67

IP69K

Items supplied

Fastening nut (1x), M18, plastic, black, flat

Electromagnetic compatibility (EMC)

EN 60947-5-2 (The sensor complies with the Radio Safety Requirements (EMC) for the industrial sector (Radio Safety Class A). It may cause radio interference if used in a residential area.)

Ambient operating temperature

–30 °C … +55 °C

Ambient temperature, storage

–40 °C … +70 °C

UL File No.

E189383

Communication interface

IO-Link	✔ , V1.1
Data transmission rate	38,4 kbit/s (COM2)
Cycle time	2.3 ms
Process data length	16 Bit

Process data structure A

Bit 0 = switching signal Q_L1

Process data structure B

Bit 0 = switching signal Q_L1

Diagnosis

Device status	Yes
Quality of teach	Yes
Quality of run	Yes, Contamination display

Classifications

ECLASS 5.0	27270902
ECLASS 5.1.4	27270902
ECLASS 6.0	27270902
ECLASS 6.2	27270902
ECLASS 7.0	27270902
ECLASS 8.0	27270902
ECLASS 8.1	27270902
ECLASS 9.0	27270902
ECLASS 10.0	27270902
ECLASS 11.0	27270902
ECLASS 12.0	27270902
ETIM 5.0	EC002717
ETIM 6.0	EC002717
ETIM 7.0	EC002717
ETIM 8.0	EC002717
UNSPSC 16.0901	39121528

Connection type/pinouts

Connection type

Male connector M12, 4-pin

Pinouts
BN 1	+ (L+)
WH 2	Q₂
BU 3	– (M)
BK 4	Q₁/C

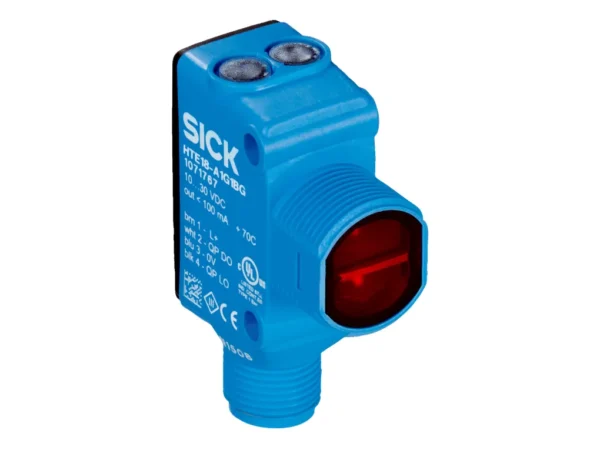

HL18L-F4A5BLA00 – 1100057
