Name: SICK 1122739 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1122739
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Dimensions (W x H x D)	12 mm x 31.5 mm x 21 mm
Sensing distance	≤ 15 mm
Sensing distance tolerance	± 4 mm
Housing design	Small
Light source	LED, RGB
Wave length	640 nm, 525 nm, 470 nm
Light spot size	4.9 mm x 10.1 mm
Light spot direction	Vertical
Adjustment	Teach-in button, cable, IO-Link
Teach-in mode	Teach-in static/dynamic ET: Teach-in dynamic

Mechanics/electronics

Supply voltage	12 V DC … 24 V DC
Ripple	< 5 V_pp
Current consumption	< 50 mA
Switching frequency	1.7 kHz
Response time	300 µs
Jitter	150 µs
Switching output	PNP
Switching output (voltage)	PNP: HIGH = U_V ≤ 2 V / LOW approx. 0 V
Switching mode	Light/dark switching
Output (channel)	8 colors via IO-Link
Output current I_max.	< 100 mA
Connection type	Cable with M12 male connector, 4-pin, 0.2 m
Cable diameter	Ø 3.4 mm
Protection class	III
Circuit protection	U_V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Enclosure rating	IP67
Weight	Approx. 25 g
Housing material	Plastic, ABS
Optics material	Plastic, PMMA

Communication interface

Process data structure A

Bit 0 = switching signal Q_L1

Bit 1 = switching signal Q_L2

Bit 2 = Quality of Run Alarm

Bit 3 … 5 = Emission Color

Bit 6 … 15 = Measurment Value RGB

Process data structure B

Bit 0 = switching signal Q_L1

Bit 1 = switching signal Q_L2

Bit 2 = switching signal Q_L3

Bit 3 = switching signal Q_L4

Bit 4 = switching signal Q_L5

Bit 5 = switching signal Q_L6

Bit 6 = switching signal Q_L7

Bit 7 = switching signal Q_L8

Bit 9 … 15 = empty

Digital output	Q₁, Q₂
Number	2

Ambient data

Ambient operating temperature	–10 °C … +55 °C
Ambient temperature, storage	–20 °C … +75 °C
Shock load	According to IEC 60068
UL File No.	NRKH.E348498 & NRKH7.E348498

Classifications

Connection type/pinouts

Connection type

Cable with M12 male connector, 4-pin, 0.2 m

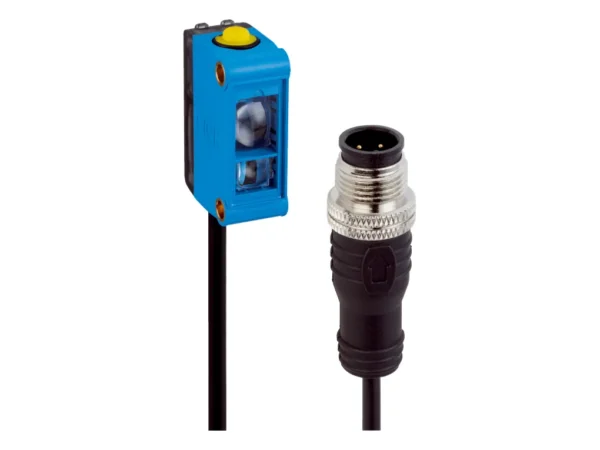

CSM-WP1B7A2P – 1122739
