Name: SICK 1095800 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1095800
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle	Photoelectric proximity sensor
Functional principle detail	Background suppression
Dimensions (W x H x D)	23.3 mm x 24 mm x 26 mm
Housing design (light emission)	Hybrid
Thread diameter (housing)	–
Mounting system type	24 mm, ball, without alignment aid
Housing color	Blue
Sensing range max.	5 mm … 100 mm
Sensing range	5 mm … 100 mm
Type of light	Infrared light
Light source	PinPoint LED
Light spot size (distance)	Ø 8 mm (100 mm)
Wave length	850 nm

Mechanics/electronics

Supply voltage U_B

10 V DC … 30 V DC

Ripple

< 10 %

Current consumption

≤ 15 mA

Switching output

Push-pull: PNP/NPN

Switching mode

Light switching, Dark switching

Switching output detail
Switching output Q1	Push-pull: PNP/NPN, Light switching
Switching output Q2	Push-pull: PNP/NPN, Dark switching

Output current I_max.

100 mA

Response time

≤ 1 ms

Switching frequency

500 kHz

Connection type

Cable with M12 male connector, 4-pin, 150 mm

Cable material

PVC

Conductor cross section

0.13 mm²

Circuit protection

Protection class

III

Weight

4.6 g

Housing material

Plastic, ABS

Optics material

Plastic, PMMA

Enclosure rating

IP67

Ambient operating temperature

–40 °C … +55 °C

Ambient temperature, storage

–40 °C … +70 °C

UL File No.

E189383

Classifications

ECLASS 5.0	27270904
ECLASS 5.1.4	27270904
ECLASS 6.0	27270904
ECLASS 6.2	27270904
ECLASS 7.0	27270904
ECLASS 8.0	27270904
ECLASS 8.1	27270904
ECLASS 9.0	27270904
ECLASS 10.0	27270904
ECLASS 11.0	27270904
ECLASS 12.0	27270903
ETIM 5.0	EC002719
ETIM 6.0	EC002719
ETIM 7.0	EC002719
ETIM 8.0	EC002719
UNSPSC 16.0901	39121528

Connection type/pinouts

Connection type

Cable with M12 male connector, 4-pin, 150 mm

Connection type Detail
Conductor cross section	0.13 mm²
Cable material	PVC

Pinouts
BN 1	+ (L+)
WH 2	Q₂
BU 3	– (M)
BK 4	Q₁

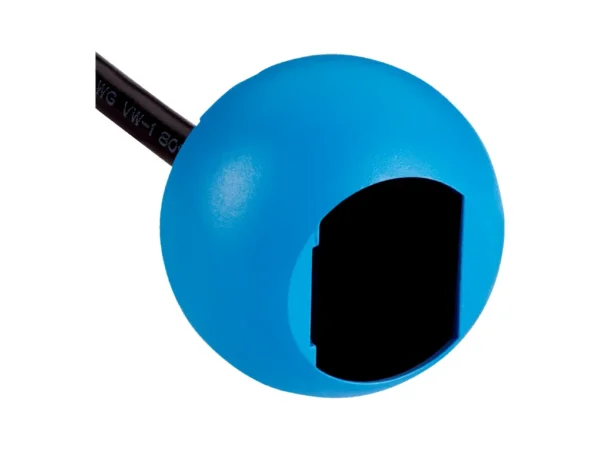

ZTB18-8AB4B1D04 – 1095800
