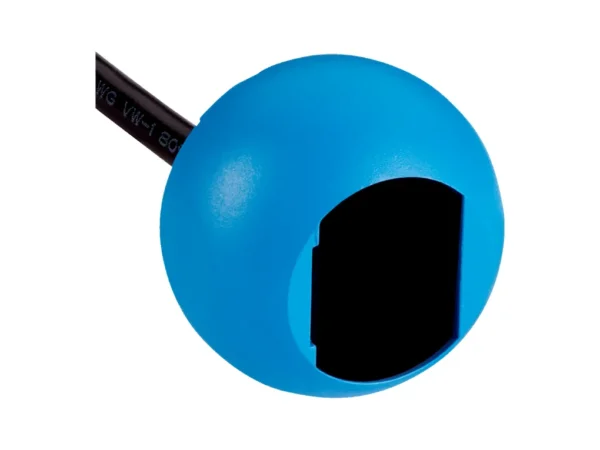

Home Fotoelektrik Sensörler ZTB18-8AB1G1D04 – 1095798 🔍 ZTB18-8AB1G1D04 – 1095798 ✉ Teklif Al Teklif Al Stok kodu: 1095798 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Dimensions (W x H x D) 23.3 mm x 24 mm x 26 mm Housing design (light emission) Hybrid Thread diameter (housing) – Mounting system type 24 mm, ball, without alignment aid Housing color Blue Sensing range max. 5 mm … 100 mm Sensing range 5 mm … 100 mm Type of light Infrared light Light source PinPoint LED Light spot size (distance) Ø 8 mm (100 mm) Wave length 850 nm Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 10 % Current consumption ≤ 15 mA Switching output Push-pull: PNP/NPN Switching mode Light switching, Dark switching Switching output detail Switching output Q1 Push-pull: PNP/NPN, Light switching Switching output Q2 Push-pull: PNP/NPN, Dark switching Output current Imax. 100 mA Response time ≤ 1 ms Switching frequency 500 kHz Connection type Cable open end, 4-wire, 2,000 mm Cable material PVC Conductor cross section 0.13 mm² Circuit protection A B D Protection class III Weight 4.6 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Cable open end, 4-wire, 2,000 mm Connection type Detail Conductor cross section 0.13 mm² Cable material PVC Pinouts BN + (L+) WH Q2 BU – (M) BK Q1 İlgili ürünler Photoelectric Accessories, Mounting, Kit – 129-135ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensors – 42AF-E1UZB1-G4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MPA-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MPB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Dimensions (W x H x D) 23.3 mm x 24 mm x 26 mm Housing design (light emission) Hybrid Thread diameter (housing) – Mounting system type 24 mm, ball, without alignment aid Housing color Blue Sensing range max. 5 mm … 100 mm Sensing range 5 mm … 100 mm Type of light Infrared light Light source PinPoint LED Light spot size (distance) Ø 8 mm (100 mm) Wave length 850 nm Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 10 % Current consumption ≤ 15 mA Switching output Push-pull: PNP/NPN Switching mode Light switching, Dark switching Switching output detail Switching output Q1 Push-pull: PNP/NPN, Light switching Switching output Q2 Push-pull: PNP/NPN, Dark switching Output current Imax. 100 mA Response time ≤ 1 ms Switching frequency 500 kHz Connection type Cable open end, 4-wire, 2,000 mm Cable material PVC Conductor cross section 0.13 mm² Circuit protection A B D Protection class III Weight 4.6 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Cable open end, 4-wire, 2,000 mm Connection type Detail Conductor cross section 0.13 mm² Cable material PVC Pinouts BN + (L+) WH Q2 BU – (M) BK Q1
