Name: SICK 1095860 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1095860
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle	Through-beam photoelectric sensor
Dimensions (W x H x D)	23.3 mm x 24 mm x 26 mm
Housing design (light emission)	Hybrid
Thread diameter (housing)	–
Mounting system type	24 mm, ball, without alignment aid
Housing color	Blue
Sensing range max.	0 m … 22 m
Sensing range	0 m … 20 m
Type of light	Visible red light
Light source	LED
Light spot size (distance)	Ø 125 mm (1,000 mm)
Wave length	625 nm

Mechanics/electronics

Supply voltage U_B

10 V DC … 30 V DC

Ripple

< 10 %

Current consumption

≤ 15 mA

Switching output

Push-pull: PNP/NPN

Switching mode

Light switching, Dark switching

Switching output detail
Switching output Q1	Push-pull: PNP/NPN, Light switching
Switching output Q2	Push-pull: PNP/NPN, Dark switching

Output current I_max.

100 mA

Response time

≤ 500 µs

Switching frequency

1,000 kHz

Connection type

Cable with M12 male connector, 4-pin, 150 mm

Cable material

PVC

Conductor cross section

0.13 mm²

Circuit protection

Protection class

III

Weight

4.6 g

Housing material

Plastic, ABS

Optics material

Plastic, PMMA

Enclosure rating

IP67

Ambient operating temperature

–40 °C … +55 °C

Ambient temperature, storage

–40 °C … +70 °C

UL File No.

E189383

Classifications

ECLASS 5.0	27270901
ECLASS 5.1.4	27270901
ECLASS 6.0	27270901
ECLASS 6.2	27270901
ECLASS 7.0	27270901
ECLASS 8.0	27270901
ECLASS 8.1	27270901
ECLASS 9.0	27270901
ECLASS 10.0	27270901
ECLASS 11.0	27270901
ECLASS 12.0	27270901
ETIM 5.0	EC002716
ETIM 6.0	EC002716
ETIM 7.0	EC002716
ETIM 8.0	EC002716
UNSPSC 16.0901	39121528

Connection type/pinouts

Connection type

Cable with M12 male connector, 4-pin, 150 mm

Connection type Detail
Conductor cross section	0.13 mm²
Cable material	PVC

Pinouts _sender
BN	+ (L+)
WH	Not connected
BU	– (M)
BK	Test _IN

Pinouts _receiver
BN	+ (L+)
WH	Q₂
BU	– (M)
BK	Q₁

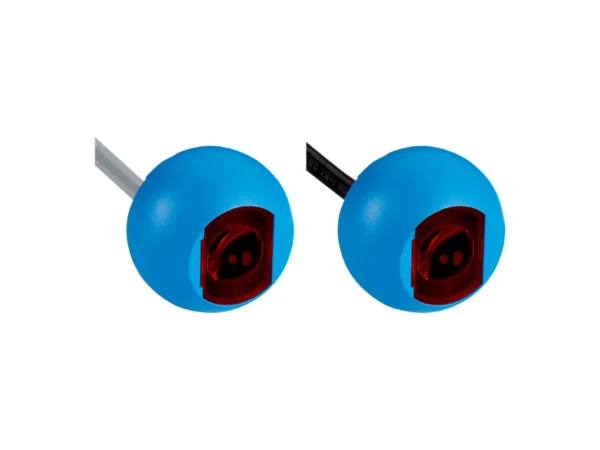

ZSE18-8AB4B8 – 1095860
