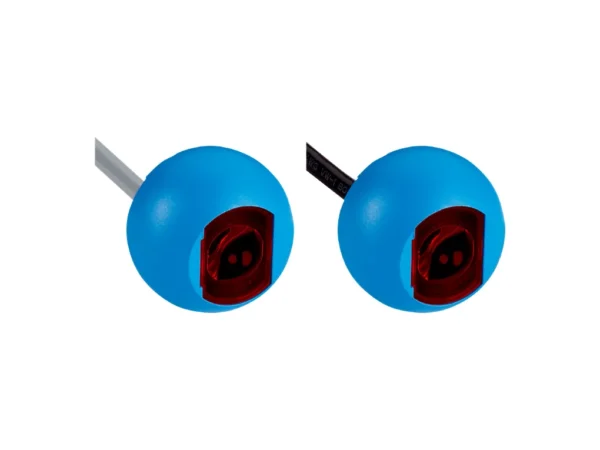

Home Fotoelektrik Sensörler ZSE18-8AB1G8 – 1095858 🔍 ZSE18-8AB1G8 – 1095858 ✉ Teklif Al Teklif Al Stok kodu: 1095858 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Through-beam photoelectric sensor Dimensions (W x H x D) 23.3 mm x 24 mm x 26 mm Housing design (light emission) Hybrid Thread diameter (housing) – Mounting system type 24 mm, ball, without alignment aid Housing color Blue Sensing range max. 0 m … 22 m Sensing range 0 m … 20 m Type of light Visible red light Light source LED Light spot size (distance) Ø 125 mm (1,000 mm) Wave length 625 nm Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 10 % Current consumption ≤ 15 mA Switching output Push-pull: PNP/NPN Switching mode Light switching, Dark switching Switching output detail Switching output Q1 Push-pull: PNP/NPN, Light switching Switching output Q2 Push-pull: PNP/NPN, Dark switching Output current Imax. 100 mA Response time ≤ 500 µs Switching frequency 1,000 kHz Connection type Cable open end, 4-wire, 2,000 mm Cable material PVC Conductor cross section 0.13 mm² Circuit protection A B D Protection class III Weight 4.6 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Cable open end, 4-wire, 2,000 mm Connection type Detail Conductor cross section 0.13 mm² Cable material PVC Pinouts sender BN + (L+) WH Not connected BU – (M) BK Test IN Pinouts receiver BN + (L+) WH Q2 BU – (M) BK Q1 İlgili ürünler Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 120 mm Gap, Plastic, 3 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA4-P3ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MNB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git 18 mm Cylindrical Sensor, 18 mm Cylindrical, Transmitted Beam Source, Infrared, Not Adjustable Sensitivity, Transmitted Beam Source, DC Transmitted Beam Emitter, 4 Pin Micro Quick Disconnect, Plastic, 18mm Mount, 3 mm Minimum Sensing Distance, 16000 mm Op – 42CA-E1EZB1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git PHOTOSWITCH Photoelectric Sensor, 1m (3.3ft), Clear Object Detection, Source (PNP), 4-pin DC Micro QD – 42CSS-C2MPA1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Through-beam photoelectric sensor Dimensions (W x H x D) 23.3 mm x 24 mm x 26 mm Housing design (light emission) Hybrid Thread diameter (housing) – Mounting system type 24 mm, ball, without alignment aid Housing color Blue Sensing range max. 0 m … 22 m Sensing range 0 m … 20 m Type of light Visible red light Light source LED Light spot size (distance) Ø 125 mm (1,000 mm) Wave length 625 nm Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 10 % Current consumption ≤ 15 mA Switching output Push-pull: PNP/NPN Switching mode Light switching, Dark switching Switching output detail Switching output Q1 Push-pull: PNP/NPN, Light switching Switching output Q2 Push-pull: PNP/NPN, Dark switching Output current Imax. 100 mA Response time ≤ 500 µs Switching frequency 1,000 kHz Connection type Cable open end, 4-wire, 2,000 mm Cable material PVC Conductor cross section 0.13 mm² Circuit protection A B D Protection class III Weight 4.6 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Cable open end, 4-wire, 2,000 mm Connection type Detail Conductor cross section 0.13 mm² Cable material PVC Pinouts sender BN + (L+) WH Not connected BU – (M) BK Test IN Pinouts receiver BN + (L+) WH Q2 BU – (M) BK Q1
