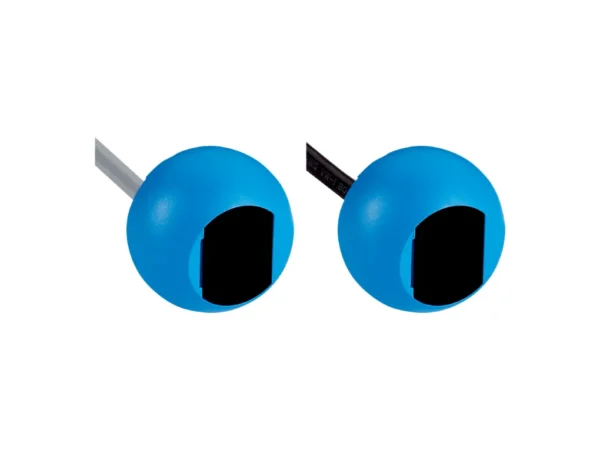

Home Fotoelektrik Sensörler ZSE18-8AB1G3 – 1095857 🔍 ZSE18-8AB1G3 – 1095857 ✉ Teklif Al Teklif Al Stok kodu: 1095857 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Through-beam photoelectric sensor Dimensions (W x H x D) 23.3 mm x 24 mm x 26 mm Housing design (light emission) Hybrid Thread diameter (housing) – Mounting system type 24 mm, ball, without alignment aid Housing color Blue Sensing range max. 0 m … 17 m Sensing range 0 m … 15 m Type of light Infrared light Light source LED Light spot size (distance) Ø 20 mm (500 mm) Wave length 850 nm Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 10 % Current consumption ≤ 15 mA Switching output Push-pull: PNP/NPN Switching mode Light switching, Dark switching Switching output detail Switching output Q1 Push-pull: PNP/NPN, Light switching Switching output Q2 Push-pull: PNP/NPN, Dark switching Output current Imax. 100 mA Response time ≤ 500 µs Switching frequency 1,000 kHz Connection type Cable open end, 4-wire, 2,000 mm Cable material PVC Conductor cross section 0.13 mm² Circuit protection A B D Protection class III Weight 4.6 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Cable open end, 4-wire, 2,000 mm Connection type Detail Conductor cross section 0.13 mm² Cable material PVC Pinouts sender BN + (L+) WH Not connected BU – (M) BK Test IN Pinouts receiver BN + (L+) WH Q2 BU – (M) BK Q1 İlgili ürünler 45LSP Optical Fork Sensor, 50 mm Sensing Gap, 10–30V DC Operating Voltage, Light or Dark Operate Selectable, 3-pin Pico QD, NPN Output Type – 45LSP-2LNA2-P3ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensors – 42AF-R1CHB1-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Distance Measurement Sensor – 45DMS-B8LAT1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MNA-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Through-beam photoelectric sensor Dimensions (W x H x D) 23.3 mm x 24 mm x 26 mm Housing design (light emission) Hybrid Thread diameter (housing) – Mounting system type 24 mm, ball, without alignment aid Housing color Blue Sensing range max. 0 m … 17 m Sensing range 0 m … 15 m Type of light Infrared light Light source LED Light spot size (distance) Ø 20 mm (500 mm) Wave length 850 nm Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 10 % Current consumption ≤ 15 mA Switching output Push-pull: PNP/NPN Switching mode Light switching, Dark switching Switching output detail Switching output Q1 Push-pull: PNP/NPN, Light switching Switching output Q2 Push-pull: PNP/NPN, Dark switching Output current Imax. 100 mA Response time ≤ 500 µs Switching frequency 1,000 kHz Connection type Cable open end, 4-wire, 2,000 mm Cable material PVC Conductor cross section 0.13 mm² Circuit protection A B D Protection class III Weight 4.6 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Cable open end, 4-wire, 2,000 mm Connection type Detail Conductor cross section 0.13 mm² Cable material PVC Pinouts sender BN + (L+) WH Not connected BU – (M) BK Test IN Pinouts receiver BN + (L+) WH Q2 BU – (M) BK Q1
