Name: SICK 1096984 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1096984
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle	Photoelectric retro-reflective sensor
Functional principle detail	Dual lens
Dimensions (W x H x D)	13.6 mm x 34.8 mm x 23 mm
Housing design (light emission)	Hybrid
Thread diameter (housing)	M18
Mounting system type	M18, head/side (24.1 … 25.4 mm)
Housing color	Transparent
Sensing range max.	0 m … 5 m
Sensing range	0 m … 4.2 m
Type of light	Visible red light
Light source	LED
Light spot size (distance)	Ø 125 mm (1,000 mm)
Wave length	625 nm

Mechanics/electronics

Supply voltage U_B

10 V DC … 30 V DC

Ripple

< 10 %

Current consumption

≤ 15 mA

Switching output

NPN

Switching mode

Light switching

Switching output detail
Switching output Q1	NPN, Light switching
Switching output Q2	Not connected

Output current I_max.

100 mA

Response time

≤ 500 µs

Switching frequency

1,000 kHz

Connection type

Cable with M12 male connector, 4-pin, 150 mm

Cable material

PVC

Conductor cross section

0.13 mm²

Circuit protection

Protection class

III

Weight

3.63 g

Polarisation filter

✔

Housing material

Plastic, ABS

Optics material

Plastic, PMMA

Enclosure rating

IP67

Ambient operating temperature

–40 °C … +55 °C

Ambient temperature, storage

–40 °C … +70 °C

UL File No.

E189383

Classifications

ECLASS 5.0	27270902
ECLASS 5.1.4	27270902
ECLASS 6.0	27270902
ECLASS 6.2	27270902
ECLASS 7.0	27270902
ECLASS 8.0	27270902
ECLASS 8.1	27270902
ECLASS 9.0	27270902
ECLASS 10.0	27270902
ECLASS 11.0	27270902
ECLASS 12.0	27270902
ETIM 5.0	EC002717
ETIM 6.0	EC002717
ETIM 7.0	EC002717
ETIM 8.0	EC002717
UNSPSC 16.0901	39121528

Connection type/pinouts

Connection type

Cable with M12 male connector, 4-pin, 150 mm

Connection type Detail
Conductor cross section	0.13 mm²
Cable material	PVC

Pinouts
BN 1	+ (L+)
WH 2	Not connected
BU 3	– (M)
BK 4	Q₁

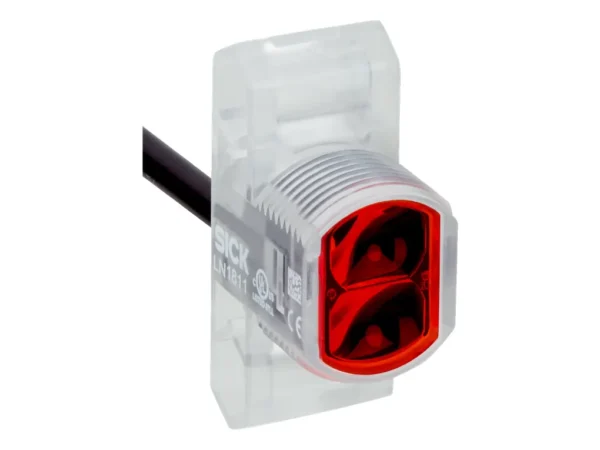

ZLD18-ANZ4B8 – 1096984
