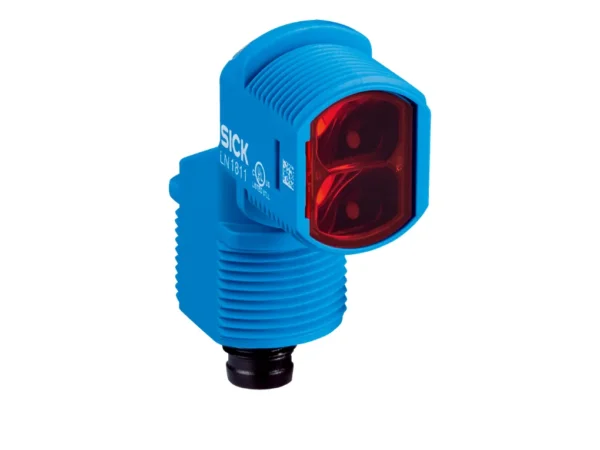

Home Fotoelektrik Sensörler ZLD18-4AB3A2 – 1095872 🔍 ZLD18-4AB3A2 – 1095872 ✉ Teklif Al Teklif Al Stok kodu: 1095872 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail Dual lens Dimensions (W x H x D) 13.6 mm x 40.8 mm x 33.3 mm Housing design (light emission) Hybrid Thread diameter (housing) M18 Mounting system type M18, head/M18, base Housing color Blue Sensing range max. 0 m … 7.8 m Sensing range 0 m … 6.8 m Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 25 mm (1,000 mm) Wave length 625 nm Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 10 % Current consumption ≤ 15 mA Switching output Push-pull: PNP/NPN Switching mode Light switching, Dark switching Switching output detail Switching output Q1 Push-pull: PNP/NPN, Light switching Switching output Q2 Push-pull: PNP/NPN, Dark switching Output current Imax. 100 mA Response time ≤ 500 µs Switching frequency 1,000 kHz Connection type Male connector M8, 4-pin Circuit protection A B D Protection class III Weight 4.54 g Polarisation filter ✔ Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270902 ECLASS 5.1.4 27270902 ECLASS 6.0 27270902 ECLASS 6.2 27270902 ECLASS 7.0 27270902 ECLASS 8.0 27270902 ECLASS 8.1 27270902 ECLASS 9.0 27270902 ECLASS 10.0 27270902 ECLASS 11.0 27270902 ECLASS 12.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Male connector M8, 4-pin Pinouts BN 1 + (L+) WH 2 Q2 BU 3 – (M) BK 4 Q1 İlgili ürünler Endüstriyel bağlantı kablosu – 42CA-P2MPB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensors – 42AF-E1UZB1-G4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MNA-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, PNP Output, 120 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LPA4-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail Dual lens Dimensions (W x H x D) 13.6 mm x 40.8 mm x 33.3 mm Housing design (light emission) Hybrid Thread diameter (housing) M18 Mounting system type M18, head/M18, base Housing color Blue Sensing range max. 0 m … 7.8 m Sensing range 0 m … 6.8 m Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 25 mm (1,000 mm) Wave length 625 nm Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 10 % Current consumption ≤ 15 mA Switching output Push-pull: PNP/NPN Switching mode Light switching, Dark switching Switching output detail Switching output Q1 Push-pull: PNP/NPN, Light switching Switching output Q2 Push-pull: PNP/NPN, Dark switching Output current Imax. 100 mA Response time ≤ 500 µs Switching frequency 1,000 kHz Connection type Male connector M8, 4-pin Circuit protection A B D Protection class III Weight 4.54 g Polarisation filter ✔ Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270902 ECLASS 5.1.4 27270902 ECLASS 6.0 27270902 ECLASS 6.2 27270902 ECLASS 7.0 27270902 ECLASS 8.0 27270902 ECLASS 8.1 27270902 ECLASS 9.0 27270902 ECLASS 10.0 27270902 ECLASS 11.0 27270902 ECLASS 12.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Male connector M8, 4-pin Pinouts BN 1 + (L+) WH 2 Q2 BU 3 – (M) BK 4 Q1
