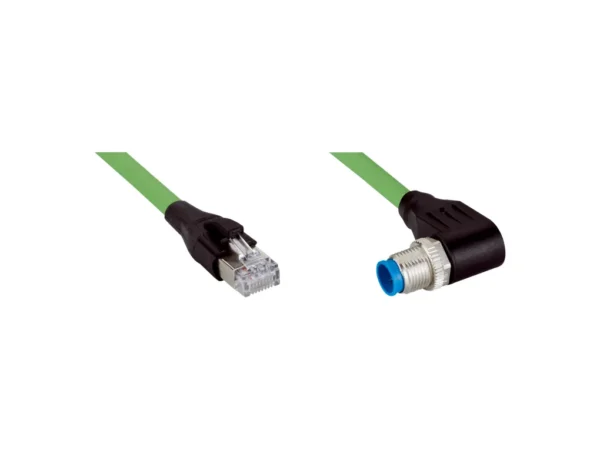

Home Sensör Kabloları YN2X18-050EG1MRJA8 – 2094784 🔍 YN2X18-050EG1MRJA8 – 2094784 ✉ Teklif Al Teklif Al Stok kodu: 2094784 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Connection cables Connection type head A Male connector, M12, 8-pin, angled, X-coded Connection type head B Male connector, RJ45, 8-pin, straight Locking plug connector Screw-on connection (M12), snap-in locking (RJ45) Connector material TPU Connector color Black Locking nut material CuZn, nickel-plated brass Tightening torque 0.6 Nm Width across flats 13 Cable 5 m, 8-wire, AWG26, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Green Cable diameter 6.4 mm Conductor cross section 0,14 mm² Shielding Shielded Bending radius Flexible use > 10 x cable diameter Stationary position > 8 x cable diameter Rated impulse voltage 1 kV Current loading 0.5 A Signal type Ethernet, Gigabit Ethernet Transmission characteristics CAT6A Data transmission rate ≤ 10 Gbit/s Authorizations CE UL UL File No. E513908 Enclosure rating IP65/ IP67 (M12), IP20 (RJ45) Ambient operating temperature Stationary position –40 °C … +80 °C Head –25 °C … +85 °C Contamination rating 3 Insulation resistance ≥ 100 MΩ Overvoltage category III Specific insulation resistance ≤ 30 mΩ Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-F4UC-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-E4HJ-10ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-R8AB-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4HE-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Connection cables Connection type head A Male connector, M12, 8-pin, angled, X-coded Connection type head B Male connector, RJ45, 8-pin, straight Locking plug connector Screw-on connection (M12), snap-in locking (RJ45) Connector material TPU Connector color Black Locking nut material CuZn, nickel-plated brass Tightening torque 0.6 Nm Width across flats 13 Cable 5 m, 8-wire, AWG26, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Green Cable diameter 6.4 mm Conductor cross section 0,14 mm² Shielding Shielded Bending radius Flexible use > 10 x cable diameter Stationary position > 8 x cable diameter Rated impulse voltage 1 kV Current loading 0.5 A Signal type Ethernet, Gigabit Ethernet Transmission characteristics CAT6A Data transmission rate ≤ 10 Gbit/s Authorizations CE UL UL File No. E513908 Enclosure rating IP65/ IP67 (M12), IP20 (RJ45) Ambient operating temperature Stationary position –40 °C … +80 °C Head –25 °C … +85 °C Contamination rating 3 Insulation resistance ≥ 100 MΩ Overvoltage category III Specific insulation resistance ≤ 30 mΩ Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
