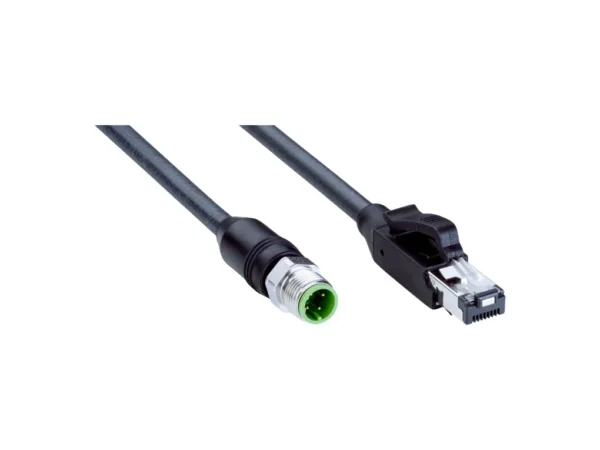

Home Sensör Kabloları YM2D24-050PN4MRJA4 – 6054493 🔍 YM2D24-050PN4MRJA4 – 6054493 ✉ Teklif Al Teklif Al Stok kodu: 6054493 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Connection type head A Male connector, M12, 4-pin, straight, D-coded Connection type head B Male connector, RJ45, 8-pin, straight Connector color Black Locking nut material Stainless steel (V4A/1.4404) Tightening torque 0.6 Nm Cable 5 m, 4-wire, CAT5, CAT5e, PUR Jacket material PUR Jacket color Black Cable diameter Ø 6.7 mm Conductor cross section 2 x 2 x 0.34 mm² Shielding Shielded Reference voltage ≤ 60 V Rated impulse voltage 1 kV Signal type Ethernet Transmission characteristics CAT5 Data transmission rate ≤ 100 Mbit/s Application Outdoor Enclosure rating IP67 (M12), IP20 (RJ45) Operating temperature Stationary position –40 °C … +80 °C Head –25 °C … +85 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-F4WE-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4HC-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-M4HL-10ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-M4HC-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Connection type head A Male connector, M12, 4-pin, straight, D-coded Connection type head B Male connector, RJ45, 8-pin, straight Connector color Black Locking nut material Stainless steel (V4A/1.4404) Tightening torque 0.6 Nm Cable 5 m, 4-wire, CAT5, CAT5e, PUR Jacket material PUR Jacket color Black Cable diameter Ø 6.7 mm Conductor cross section 2 x 2 x 0.34 mm² Shielding Shielded Reference voltage ≤ 60 V Rated impulse voltage 1 kV Signal type Ethernet Transmission characteristics CAT5 Data transmission rate ≤ 100 Mbit/s Application Outdoor Enclosure rating IP67 (M12), IP20 (RJ45) Operating temperature Stationary position –40 °C … +80 °C Head –25 °C … +85 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
