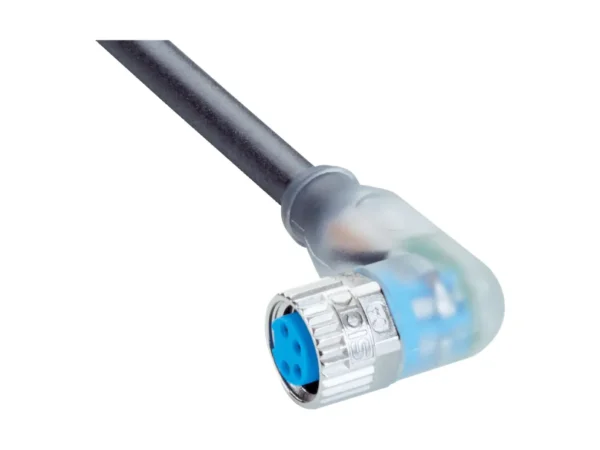

Home Sensör Kabloları YI8U14-050UA3XLEAX – 2095597 🔍 YI8U14-050UA3XLEAX – 2095597 ✉ Teklif Al Teklif Al Stok kodu: 2095597 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Connection type head A Female connector, M8, 4-pin, angled, A-coded Connection type head B Flying leads Locking plug connector Screw connection Connector material TPU Connector color Transparent Locking nut material Zinc die-cast, nickel-plated Seal material FKM Tightening torque 0.4 Nm Width across flats 9 Cable 5 m, 4-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Black Cable diameter 4.5 mm Conductor cross section 0.25 mm² Shielding Unshielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Drag chain operation > 10 x cable diameter Bending cycles 10,000,000 Display LED ✔ Nominal voltage, cable 300 V AC Test voltage, cable 2,500 V AC Reference voltage 24 V DC Rated impulse voltage 0.8 kV Current loading 4 A Traversing speed 3 m/s Travelling distance 10 m Acceleration ≤ 10 m/s² Signal type Sensor/actuator cable Torsion force 180° / 1 m Torsion cycles 2,000,000 Cycles per minutes 35 Application Zones with oils and lubricants Drag chain operation Robot Note Only suitable for PNP sensors Authorizations UL Enclosure rating IP65 / IP66K / IP67 Description LED function display Specialty LED function indicator Operating temperature Flexible use –25 °C … +80 °C Stationary position –40 °C … +80 °C Drag chain operation –25 °C … +80 °C Head –25 °C … +85 °C Contamination rating 3 Insulation resistance 100 MΩ Overvoltage category III Specific insulation resistance 30 mΩ Thermal resistance, piping Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2 Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-F4UC-15ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4UC-30ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-E4HJ-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-R8AB-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Connection type head A Female connector, M8, 4-pin, angled, A-coded Connection type head B Flying leads Locking plug connector Screw connection Connector material TPU Connector color Transparent Locking nut material Zinc die-cast, nickel-plated Seal material FKM Tightening torque 0.4 Nm Width across flats 9 Cable 5 m, 4-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Black Cable diameter 4.5 mm Conductor cross section 0.25 mm² Shielding Unshielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Drag chain operation > 10 x cable diameter Bending cycles 10,000,000 Display LED ✔ Nominal voltage, cable 300 V AC Test voltage, cable 2,500 V AC Reference voltage 24 V DC Rated impulse voltage 0.8 kV Current loading 4 A Traversing speed 3 m/s Travelling distance 10 m Acceleration ≤ 10 m/s² Signal type Sensor/actuator cable Torsion force 180° / 1 m Torsion cycles 2,000,000 Cycles per minutes 35 Application Zones with oils and lubricants Drag chain operation Robot Note Only suitable for PNP sensors Authorizations UL Enclosure rating IP65 / IP66K / IP67 Description LED function display Specialty LED function indicator Operating temperature Flexible use –25 °C … +80 °C Stationary position –40 °C … +80 °C Drag chain operation –25 °C … +80 °C Head –25 °C … +85 °C Contamination rating 3 Insulation resistance 100 MΩ Overvoltage category III Specific insulation resistance 30 mΩ Thermal resistance, piping Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2 Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
