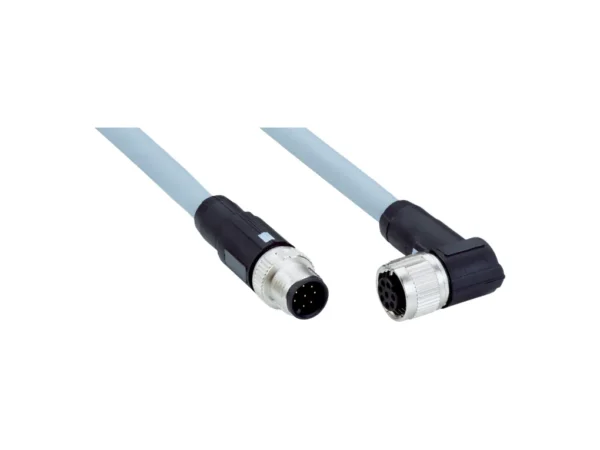

Home Sensör Kabloları YG2A88-050XXXM2A88 – 6049328 🔍 YG2A88-050XXXM2A88 – 6049328 ✉ Teklif Al Teklif Al Stok kodu: 6049328 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Connection type head A Female connector, M12, 8-pin, angled, A-coded Connection type head B Male connector, M12, 8-pin, A-coded Cable 5 m, 8-wire, PUR Jacket material PUR Jacket color Gray Conductor cross section 0.25 mm² Bending radius Flexible use 57 mm Stationary position 57 mm Bending cycles 3,000,000 Reference voltage ≤ 30 V Traversing speed 1.4 m/s Enclosure rating IP65/ IP67/ IP69K Operating temperature Flexible use –40 °C … +80 °C Stationary position –50 °C … +80 °C Contamination rating 3 Insulation resistance ≥ 100 MΩ Overvoltage category II Specific insulation resistance ≤ 5 mΩ Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-F4HC-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-R8AB-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4UC-20ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-M4WE-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
