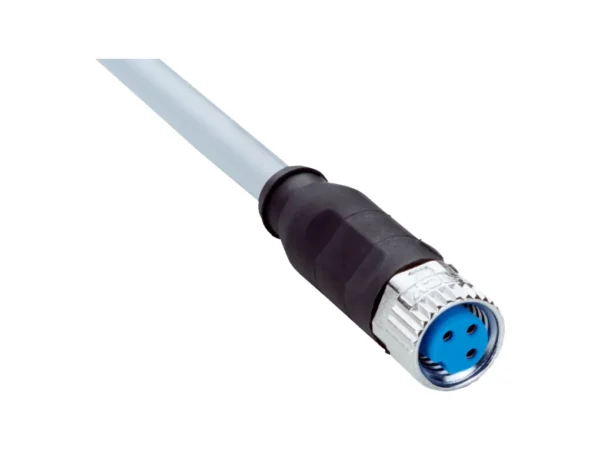

Home Sensör Kabloları YF8U13-100VA1XLEAX – 2095885 🔍 YF8U13-100VA1XLEAX – 2095885 ✉ Teklif Al Teklif Al Stok kodu: 2095885 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Connection type head A Female connector, M8, 3-pin, straight, A-coded Connection type head B Flying leads Locking plug connector Screw connection Connector material TPU Connector color Black Locking nut material Zinc die-cast, nickel-plated Seal material FKM Tightening torque 0.4 Nm Width across flats 9 Cable 10 m, 3-wire, PVC Jacket material PVC Jacket color Gray Cable diameter 4.5 mm Conductor cross section 0.25 mm² Shielding Unshielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Nominal voltage, cable 300 V AC Test voltage, cable 2,000 V AC Reference voltage 50 V AC 60 V DC Rated impulse voltage 1.5 kV Current loading 4 A Signal type Sensor/actuator cable Application Zones with chemicals Authorizations UL UL File No. E335179 Enclosure rating IP65 / IP66K / IP67 Operating temperature Flexible use –5 °C … +80 °C Stationary position –30 °C … +80 °C Head –25 °C … +85 °C Contamination rating 3 Insulation resistance 100 MΩ Overvoltage category III Specific insulation resistance 30 mΩ Thermal resistance, piping Flame retardant according to UL 1581 VW1 / CSA FT1 Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889P-P3AB-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4UB-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-E4HJ-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-M4WE-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Connection type head A Female connector, M8, 3-pin, straight, A-coded Connection type head B Flying leads Locking plug connector Screw connection Connector material TPU Connector color Black Locking nut material Zinc die-cast, nickel-plated Seal material FKM Tightening torque 0.4 Nm Width across flats 9 Cable 10 m, 3-wire, PVC Jacket material PVC Jacket color Gray Cable diameter 4.5 mm Conductor cross section 0.25 mm² Shielding Unshielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Nominal voltage, cable 300 V AC Test voltage, cable 2,000 V AC Reference voltage 50 V AC 60 V DC Rated impulse voltage 1.5 kV Current loading 4 A Signal type Sensor/actuator cable Application Zones with chemicals Authorizations UL UL File No. E335179 Enclosure rating IP65 / IP66K / IP67 Operating temperature Flexible use –5 °C … +80 °C Stationary position –30 °C … +80 °C Head –25 °C … +85 °C Contamination rating 3 Insulation resistance 100 MΩ Overvoltage category III Specific insulation resistance 30 mΩ Thermal resistance, piping Flame retardant according to UL 1581 VW1 / CSA FT1 Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
