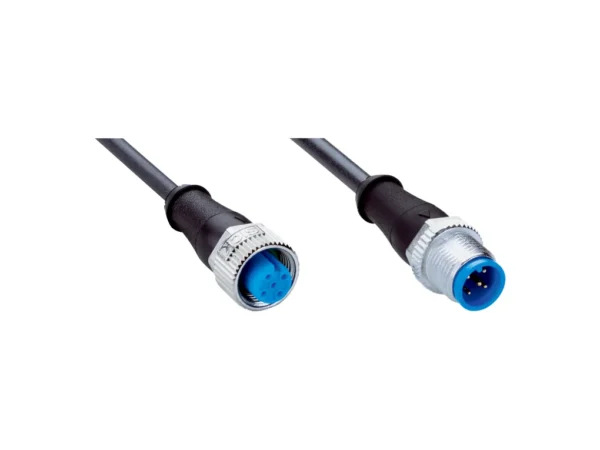

Home Sensör Kabloları YF2A15-300UB5M2A15 – 2095845 🔍 YF2A15-300UB5M2A15 – 2095845 ✉ Teklif Al Teklif Al Stok kodu: 2095845 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Connection type head A Female connector, M12, 5-pin, straight, A-coded Connection type head B Male connector, M12, 5-pin, straight, A-coded Locking plug connector Screw connection Connector material TPU Connector color Black Locking nut material Zinc die-cast, nickel-plated Seal material FKM Tightening torque 0.6 Nm Width across flats 13 Cable 30 m, 5-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Black Cable diameter 4.8 mm Conductor cross section 0.34 mm² Shielding Unshielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Drag chain operation > 10 x cable diameter Bending cycles 10,000,000 Nominal voltage, cable 300 V AC Test voltage, cable 2,500 V AC Reference voltage 125 V AC 125 V DC Rated impulse voltage 1.5 kV Current loading 4 A Traversing speed 3 m/s Travelling distance 10 m Acceleration ≤ 10 m/s² Signal type Sensor/actuator cable Torsion force 180° / 1 m Torsion cycles 2,000,000 Cycles per minutes 35 Application Zones with oils and lubricants Drag chain operation Robot Authorizations CE UL UL File No. E335179 Enclosure rating IP65 / IP66K / IP67 Operating temperature Flexible use –25 °C … +80 °C Stationary position –40 °C … +80 °C Drag chain operation –25 °C … +80 °C Head –25 °C … +85 °C Contamination rating 3 Insulation resistance 100 MΩ Overvoltage category III Specific insulation resistance 30 mΩ Thermal resistance, piping Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2 Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-E4HJ-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4HC-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-R8AB-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-M4HC-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Connection type head A Female connector, M12, 5-pin, straight, A-coded Connection type head B Male connector, M12, 5-pin, straight, A-coded Locking plug connector Screw connection Connector material TPU Connector color Black Locking nut material Zinc die-cast, nickel-plated Seal material FKM Tightening torque 0.6 Nm Width across flats 13 Cable 30 m, 5-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Black Cable diameter 4.8 mm Conductor cross section 0.34 mm² Shielding Unshielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Drag chain operation > 10 x cable diameter Bending cycles 10,000,000 Nominal voltage, cable 300 V AC Test voltage, cable 2,500 V AC Reference voltage 125 V AC 125 V DC Rated impulse voltage 1.5 kV Current loading 4 A Traversing speed 3 m/s Travelling distance 10 m Acceleration ≤ 10 m/s² Signal type Sensor/actuator cable Torsion force 180° / 1 m Torsion cycles 2,000,000 Cycles per minutes 35 Application Zones with oils and lubricants Drag chain operation Robot Authorizations CE UL UL File No. E335179 Enclosure rating IP65 / IP66K / IP67 Operating temperature Flexible use –25 °C … +80 °C Stationary position –40 °C … +80 °C Drag chain operation –25 °C … +80 °C Head –25 °C … +85 °C Contamination rating 3 Insulation resistance 100 MΩ Overvoltage category III Specific insulation resistance 30 mΩ Thermal resistance, piping Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2 Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
