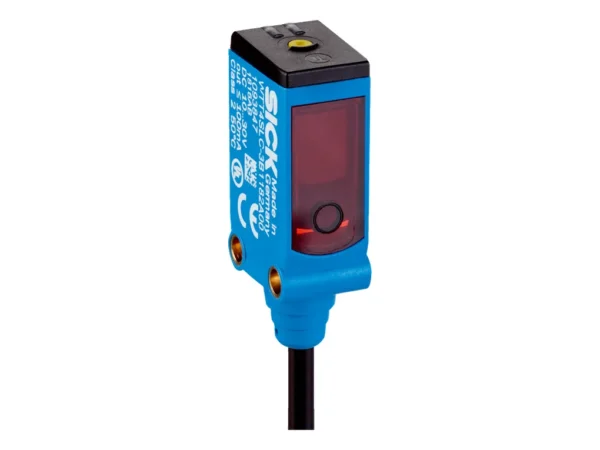

Home Fotoelektrik Sensörler WTT4SLC-3B3262B05 – 1120525 🔍 WTT4SLC-3B3262B05 – 1120525 ✉ Teklif Al Teklif Al Stok kodu: 1120525 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression, Optical time-of-flight Dimensions (W x H x D) 12.2 mm x 41.8 mm x 17.3 mm Housing design (light emission) Rectangular Sensing range max. 50 mm … 1,300 mm Sensing range 100 mm … 1,300 mm Distance value Measuring range 90 mm … 1,300 mm Resolution 1 mm Repeatability 4,5 mm … 11 mm Accuracy – 10 mm, + 80 mm Distance value output Via IO-Link Update rate of the distance value 0.8 ms Type of light Visible red light Light source Laser Light spot size (distance) Ø 4 mm (1,000 mm) Wave length 658 nm Laser class 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11) Adjustment Single teach-in button IO-Link Pin 2 configuration Sender off (test input) Special features Pin 4: sensing range QL1, SP1 preset to 400 mm, inverter active Pin 2: sender off (test input) Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 25 mA Switching output Push-pull: PNP/NPN Output function Factory setting: Pin 2 / white (MF): sender off (test input), Pin 4 / black (QL1 / C) inverted: NPN normally open (light switching), PNP normally closed (dark switching), IO-Link Switching mode Dark/light switching Output current Imax. ≤ 50 mA Response time ≤ 5 ms Switching frequency 100 Hz Input MFin = multifunctional input programmable Connection type Cable with M8 male connector, 4-pin, 120 mm Conductor cross section 0.14 mm² Cable diameter Ø 3.4 mm Circuit protection A B D Protection class III Weight 10 g Housing material Plastic, MABS, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +50 °C Ambient temperature, storage –40 °C … +75 °C Warm-up time < 10 min 10) Initialization time < 300 ms UL File No. E181493 Safety-related parameters MTTFD 256 years DCavg 0 % TM (mission time) 10 years Communication interface Communication interface IO-Link V1.1 Communication Interface detail COM3 (230,4 kBaud) Cycle time 0.8 ms Process data length 4 Byte Process data structure Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = detection signal Qint.1 Bit 3 = detection signal Qint.2 Bit 4 = detection signal Qint.3 Bit 5 = detection signal Qint.4 Bit 6 = detection signal Qint.5 Bit 7 = detection signal Qint.6 Bit 8 = detection signal Qint.7 Bit 9 = detection signal Qint.8 Bit 10 … 15 = empty Bit 16 … 31 = distance value VendorID 26 DeviceID HEX 0x800328 DeviceID DEC 8389416 Smart Task Smart Task name Base logics Logic function Direct AND OR WINDOW Hysteresis Timer function Deactivated On delay Off delay ON and OFF delay Impulse (one shot) Inverter Yes Switching signal Switching signal QL1 Switching output Switching signal QL2 Switching output Diagnosis Device temperature Measuring range -127 °C … +127 °C Device status Yes Operating hour counter Yes Classifications eCl@ss 5.0 27270904 eCl@ss 5.1.4 27270904 eCl@ss 6.0 27270904 eCl@ss 6.2 27270904 eCl@ss 7.0 27270904 eCl@ss 8.0 27270904 eCl@ss 8.1 27270904 eCl@ss 9.0 27270904 eCl@ss 10.0 27270904 eCl@ss 11.0 27270904 eCl@ss 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 İlgili ürünler Endüstriyel bağlantı kablosu – 42CA-P2MPB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git 45LSP Optical Fork Sensor, 50 mm Sensing Gap, 10–30V DC Operating Voltage, Light or Dark Operate Selectable, 3-pin Pico QD, NPN Output Type – 45LSP-2LNA2-P3ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MPA-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MNA-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression, Optical time-of-flight Dimensions (W x H x D) 12.2 mm x 41.8 mm x 17.3 mm Housing design (light emission) Rectangular Sensing range max. 50 mm … 1,300 mm Sensing range 100 mm … 1,300 mm Distance value Measuring range 90 mm … 1,300 mm Resolution 1 mm Repeatability 4,5 mm … 11 mm Accuracy – 10 mm, + 80 mm Distance value output Via IO-Link Update rate of the distance value 0.8 ms Type of light Visible red light Light source Laser Light spot size (distance) Ø 4 mm (1,000 mm) Wave length 658 nm Laser class 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11) Adjustment Single teach-in button IO-Link Pin 2 configuration Sender off (test input) Special features Pin 4: sensing range QL1, SP1 preset to 400 mm, inverter active Pin 2: sender off (test input) Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 25 mA Switching output Push-pull: PNP/NPN Output function Factory setting: Pin 2 / white (MF): sender off (test input), Pin 4 / black (QL1 / C) inverted: NPN normally open (light switching), PNP normally closed (dark switching), IO-Link Switching mode Dark/light switching Output current Imax. ≤ 50 mA Response time ≤ 5 ms Switching frequency 100 Hz Input MFin = multifunctional input programmable Connection type Cable with M8 male connector, 4-pin, 120 mm Conductor cross section 0.14 mm² Cable diameter Ø 3.4 mm Circuit protection A B D Protection class III Weight 10 g Housing material Plastic, MABS, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +50 °C Ambient temperature, storage –40 °C … +75 °C Warm-up time < 10 min 10) Initialization time < 300 ms UL File No. E181493 Safety-related parameters MTTFD 256 years DCavg 0 % TM (mission time) 10 years Communication interface Communication interface IO-Link V1.1 Communication Interface detail COM3 (230,4 kBaud) Cycle time 0.8 ms Process data length 4 Byte Process data structure Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = detection signal Qint.1 Bit 3 = detection signal Qint.2 Bit 4 = detection signal Qint.3 Bit 5 = detection signal Qint.4 Bit 6 = detection signal Qint.5 Bit 7 = detection signal Qint.6 Bit 8 = detection signal Qint.7 Bit 9 = detection signal Qint.8 Bit 10 … 15 = empty Bit 16 … 31 = distance value VendorID 26 DeviceID HEX 0x800328 DeviceID DEC 8389416 Smart Task Smart Task name Base logics Logic function Direct AND OR WINDOW Hysteresis Timer function Deactivated On delay Off delay ON and OFF delay Impulse (one shot) Inverter Yes Switching signal Switching signal QL1 Switching output Switching signal QL2 Switching output Diagnosis Device temperature Measuring range -127 °C … +127 °C Device status Yes Operating hour counter Yes Classifications eCl@ss 5.0 27270904 eCl@ss 5.1.4 27270904 eCl@ss 6.0 27270904 eCl@ss 6.2 27270904 eCl@ss 7.0 27270904 eCl@ss 8.0 27270904 eCl@ss 8.1 27270904 eCl@ss 9.0 27270904 eCl@ss 10.0 27270904 eCl@ss 11.0 27270904 eCl@ss 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528
