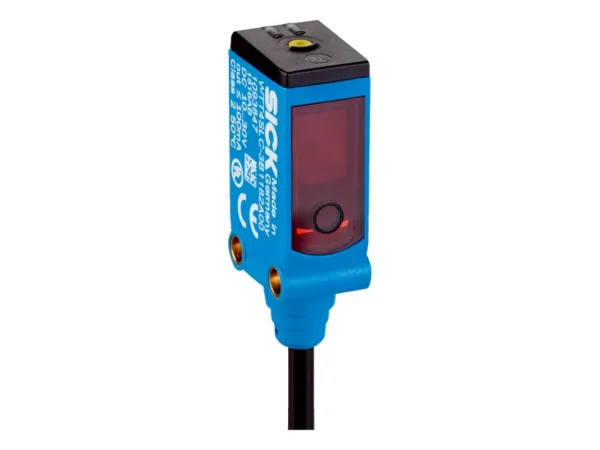

Name: SICK 1097222 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1097222
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle

Photoelectric proximity sensor

Functional principle detail

Background suppression, Optical time-of-flight

Dimensions (W x H x D)

12.2 mm x 41.8 mm x 17.3 mm

Housing design (light emission)

Rectangular

Sensing range max.

50 mm … 1,000 mm

Sensing range

100 mm … 1,000 mm

Distance value
Measuring range	90 mm … 1,000 mm
Resolution	1 mm
Repeatability	7,5 mm … 13 mm
Accuracy	– 10 mm, + 80 mm
Distance value output	Via IO-Link
Update rate of the distance value	0.8 ms

Type of light

Visible red light

Light source

Laser

Light spot size (distance)

Ø 4 mm (1,000 mm)

Wave length

658 nm

Laser class

1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)

Adjustment

Single teach-in button

IO-Link

Pin 2 configuration

External input, Teach-in input, Sender off input, Detection output, logic output

Mechanics/electronics

Supply voltage U_B	10 V DC … 30 V DC
Ripple	< 5 V_pp
Current consumption	25 mA
Switching output	Push-pull: PNP/NPN
Output function	Factory setting: Pin 2 / white (MF): NPN normally open (light switching), PNP normally closed (dark switching), Pin 4 / black (QL1 / C): NPN normally closed (dark switching), PNP normally open (light switching), IO-Link
Switching mode	Dark/light switching
Output current I_max.	≤ 50 mA
Response time	0.5 ms
Switching frequency	1,000 Hz
Input	MF_in = multifunctional input programmable
Connection type	Cable with M8 male connector, 4-pin, 120 mm
Conductor cross section	0.14 mm²
Cable diameter	Ø 3.4 mm
Circuit protection	A B D
Protection class	III
Weight	10 g
Housing material	Plastic, MABS, ABS
Optics material	Plastic, PMMA
Enclosure rating	IP67
Ambient operating temperature	–40 °C … +50 °C
Ambient temperature, storage	–40 °C … +75 °C
Warm-up time	< 10 min
Initialization time	< 300 ms
UL File No.	E181493

Safety-related parameters

MTTF_D	256 years
DC_avg	0 %
T_M (mission time)	20 years

Communication interface

Communication interface	IO-Link V1.1
Communication Interface detail	COM3 (230,4 kBaud)
Cycle time	0.8 ms
Process data length	4 Byte
Process data structure	Bit 0 = switching signal Q_L1 Bit 1 = switching signal Q_L2 Bit 2 = detection signal Qint.1 Bit 3 = detection signal Qint.2 Bit 4 = detection signal Qint.3 Bit 5 = detection signal Qint.4 Bit 6 = detection signal Qint.5 Bit 7 = detection signal Qint.6 Bit 8 = detection signal Qint.7 Bit 9 = detection signal Qint.8 Bit 10 … 15 = empty Bit 16 … 31 = distance value
VendorID	26
DeviceID HEX	0x7FFA4B
DeviceID DEC	8387147

Smart Task

Smart Task name

Base logics

Logic function

Direct

AND

WINDOW

Hysteresis

Timer function

Deactivated

On delay

Off delay

ON and OFF delay

Impulse (one shot)

Inverter

Yes

Switching signal
Switching signal Q_L1	Switching output
Switching signal Q_L2	Switching output

Diagnosis

Device temperature
Measuring range	-127 °C … +127 °C

Device status

Yes

Operating hour counter

Yes

Classifications

eCl@ss 5.0	27270904
eCl@ss 5.1.4	27270904
eCl@ss 6.0	27270904
eCl@ss 6.2	27270904
eCl@ss 7.0	27270904
eCl@ss 8.0	27270904
eCl@ss 8.1	27270904
eCl@ss 9.0	27270904
eCl@ss 10.0	27270904
eCl@ss 11.0	27270904
eCl@ss 12.0	27270903
ETIM 5.0	EC002719
ETIM 6.0	EC002719
ETIM 7.0	EC002719
ETIM 8.0	EC002719
UNSPSC 16.0901	39121528
