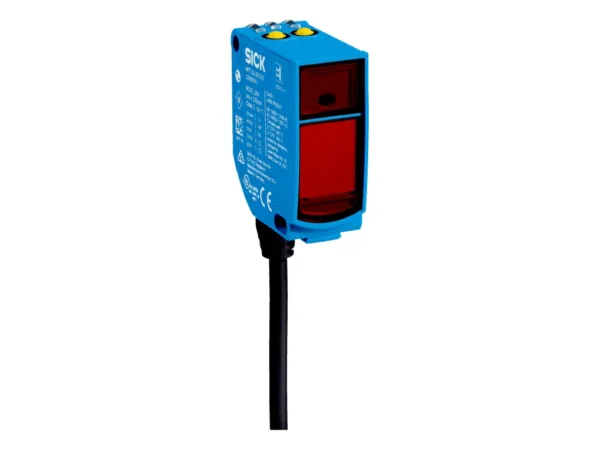

Name: SICK 1103602 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1103602
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle

Photoelectric proximity sensor

Functional principle detail

Background suppression, Optical time-of-flight

Dimensions (W x H x D)

20 mm x 49.6 mm x 44.2 mm

Housing design (light emission)

Rectangular

Sensing range max.

50 mm … 3,800 mm

Sensing range

100 mm … 3,800 mm

Type of light

Visible red light

Light source

Laser

Light spot size (distance)

Ø 18 mm (3,800 mm)

Wave length

658 nm

Laser class

1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)

Adjustment

Single teach-in button (2 x)

IO-Link

Mechanics/electronics

Supply voltage U_B	10 V DC … 30 V DC
Ripple	< 5 V_pp
Current consumption	70 mA
Switching output	Push-pull: PNP/NPN
Number of switching outputs	2 (Q₁, Q₂)
Switching mode	Light switching
Output current I_max.	≤ 100 mA
Response time	≤ 5 ms
Switching frequency	100 Hz
Analog output	–
Input	MF_in = multifunctional input programmable
Connection type	Cable, 5-wire, 2 m
Cable material	PVC
Conductor cross section	0.14 mm²
Circuit protection	A B ¹⁰⁾ C ¹¹⁾
Protection class	III
Weight	48 g
Housing material	Plastic, VISTAL®
Optics material	Plastic, PMMA
Enclosure rating	IP67
Ambient operating temperature	–35 °C … +50 °C ¹²⁾
Ambient temperature, storage	–40 °C … +70 °C
Warm-up time	< 15 min ¹³⁾
Initialization time	< 300 ms
UL File No.	NRKH.E181493

Safety-related parameters

MTTF_D	138 years
DC_avg	0 %

Communication interface

Communication interface	IO-Link V1.1
Communication Interface detail	COM2 (38,4 kBaud)
Cycle time	5 ms
Process data length	32 Bit
Process data structure	Bit 0 = switching signal Q_O1 Bit 1 = switching signal Q_O2 Bit 2 … 8 = BDC 2 … 8 Bit 9 … 15 = empty Bit 16 … 31 = distance value
Additional features	8 switching points for distance to object, of which 2 can be inverted, 1 switching point as switching window or configurable with hysteresis., multifunctional input: sender off, external teach, inactive
VendorID	26
DeviceID HEX	0x800097
DeviceID DEC	8388759

Classifications

WTT12LC-B1563 – 1103602
