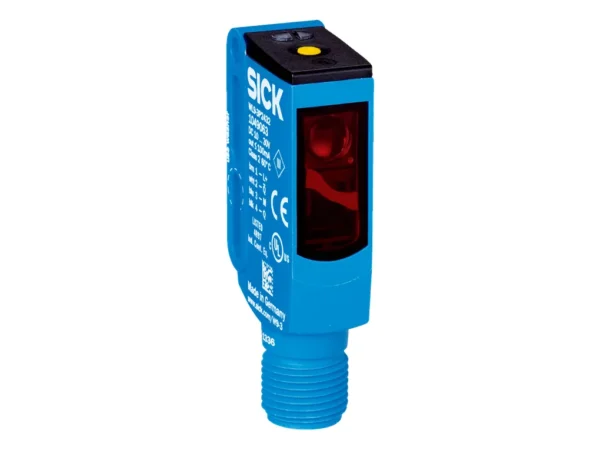

Name: SICK 1099064 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1099064
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle	Photoelectric proximity sensor
Functional principle detail	Foreground suppression
Dimensions (W x H x D)	12.2 mm x 52.2 mm x 23.6 mm
Housing design (light emission)	Rectangular
Mounting hole	M3
Sensing range max.	20 mm … 350 mm
Sensing range	20 mm … 200 mm
Type of light	Visible red light
Light source	PinPoint LED
Light spot size (distance)	Ø 4.5 mm (75 mm)
Wave length	650 nm
Adjustment	IO-Link Single teach-in button
Pin 2 configuration	External input, Teach-in input, Sender off input, Detection output, logic output

Mechanics/electronics

Supply voltage U_B	10 V DC … 30 V DC
Ripple	< 5 V_pp
Current consumption	30 mA
Switching output	PNP
Output function	Complementary
Switching mode	Light/dark switching
Output current I_max.	≤ 100 mA
Response time	< 0.333 ms
Response time Q/ on Pin 2	200 µs … 300 µs
Switching frequency	1,500 Hz
Switching frequency Q / to pin 2	≤ 1,500 Hz ¹⁰⁾
Connection type	Male connector M12, 4-pin
Circuit protection	A ¹¹⁾ B ¹²⁾ C ¹³⁾
Protection class	III
Weight	13 g
Housing material	Plastic, VISTAL®
Optics material	Plastic, PMMA
Enclosure rating	IP66 IP67 IP69K
Ambient operating temperature	–40 °C … +60 °C
Ambient temperature, storage	–40 °C … +75 °C
UL File No.	NRKH.E181493
Repeatability Q/ on Pin 2:	100 µs

Safety-related parameters

MTTF_D	865 years
DC_avg	0 %
T_M (mission time)	20 years

Communication interface

Communication interface	IO-Link V1.1
Communication Interface detail	COM2 (38,4 kBaud)
Cycle time	2.3 ms
Process data length	16 Bit
Process data structure	Bit 0 = switching signal Q_L1 Bit 1 = switching signal Q_L2 Bit 2 … 15 = empty
VendorID	26
DeviceID HEX	0x800226
DeviceID DEC	8389158

Smart Task

Smart Task name

Base logics

Logic function

Direct

AND

WINDOW

Hysteresis

Timer function

Deactivated

On delay

Off delay

ON and OFF delay

Impulse (one shot)

Inverter

Yes

Switching frequency

SIO Direct: 1500 Hz

SIO Logic: 600 Hz

IOL: 450 Hz

Response time

SIO Direct: 200 µs … 300 µs

SIO Logic: 650 µs … 750 µs

IOL: 650 µs … 1000 µs

Repeatability

SIO Direct: 100 µs

SIO Logic: 100 µs

IOL: 350 µs

Switching signal
Switching signal Q_L1	Output type (dependant on the adjusted threshold)
Switching signal Q_L2	Output type (dependant on the adjusted threshold)

Diagnosis

Device status

Yes

Classifications

ECLASS 5.0	27270904
ECLASS 5.1.4	27270904
ECLASS 6.0	27270904
ECLASS 6.2	27270904
ECLASS 7.0	27270904
ECLASS 8.0	27270904
ECLASS 8.1	27270904
ECLASS 9.0	27270904
ECLASS 10.0	27270904
ECLASS 11.0	27270904
ECLASS 12.0	27270903
ETIM 5.0	EC002719
ETIM 6.0	EC002719
ETIM 7.0	EC002719
ETIM 8.0	EC002719
UNSPSC 16.0901	39121528

WTF9C-3P2462A00 – 1099064
