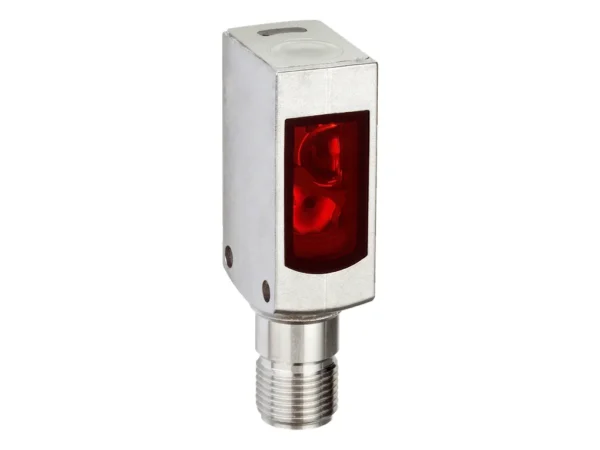

Home Fotoelektrik Sensörler WTB4S-3P3462VS15 – 1098603 🔍 WTB4S-3P3462VS15 – 1098603 ✉ Teklif Al Teklif Al Stok kodu: 1098603 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Sensing range max. 4 mm … 500 mm Sensing range 50 mm … 350 mm Emitted beam Light source PinPoint LED Type of light Visible red light Light spot size (distance) Ø 6.5 mm (150 mm) Key LED figures Wave length 650 nm Adjustment Single teach-in button Special applications Hygienic and washdown zones Housing design Washdown Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 30 mA Protection class III Digital output Type PNP Switching mode Light/dark switching Output current Imax. ≤ 100 mA Response time < 1 ms Switching frequency 600 Hz Circuit protection A B C Mechanical data Housing Rectangular Design detail Slim Dimensions (W x H x D) 15.25 mm x 49.2 mm x 22.2 mm Connection Cable with M12 male connector, 4-pin Connection detail Length of cable (L) 150 mm Material Housing Stainless steel, Stainless steel V4A (1.4404, 316L) Front screen Plastic, PMMA Cable PVC Weight 60 g Ambient data Enclosure rating IP66 IP67 IP68 IP69K Ambient operating temperature –30 °C … +70 °C –30 °C … +60 °C Ambient temperature, storage –30 °C … +75 °C UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 İlgili ürünler Photoelectric Sensors – 42AF-E1UZB1-G4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 80 mm Gap, Plastic, 3 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA3-P3ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Accessories, Reflector, Fog Resistant, 100X100 mm – 92-108ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 50 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA2-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Sensing range max. 4 mm … 500 mm Sensing range 50 mm … 350 mm Emitted beam Light source PinPoint LED Type of light Visible red light Light spot size (distance) Ø 6.5 mm (150 mm) Key LED figures Wave length 650 nm Adjustment Single teach-in button Special applications Hygienic and washdown zones Housing design Washdown Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 30 mA Protection class III Digital output Type PNP Switching mode Light/dark switching Output current Imax. ≤ 100 mA Response time < 1 ms Switching frequency 600 Hz Circuit protection A B C Mechanical data Housing Rectangular Design detail Slim Dimensions (W x H x D) 15.25 mm x 49.2 mm x 22.2 mm Connection Cable with M12 male connector, 4-pin Connection detail Length of cable (L) 150 mm Material Housing Stainless steel, Stainless steel V4A (1.4404, 316L) Front screen Plastic, PMMA Cable PVC Weight 60 g Ambient data Enclosure rating IP66 IP67 IP68 IP69K Ambient operating temperature –30 °C … +70 °C –30 °C … +60 °C Ambient temperature, storage –30 °C … +75 °C UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528
