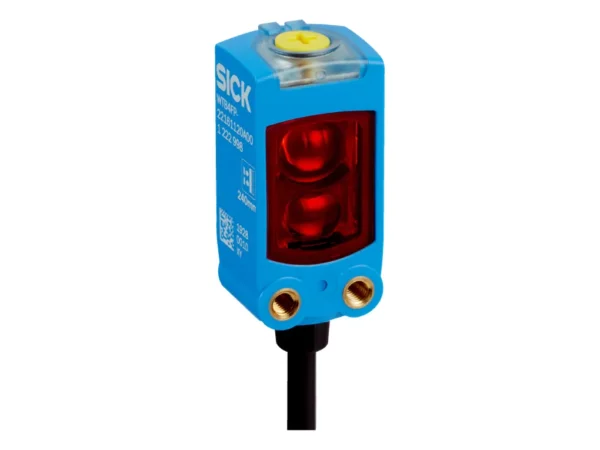

Home Fotoelektrik Sensörler WTB4FP-XX312120ZZZZ2ZZZZZZZ041 – 1127217 🔍 WTB4FP-XX312120ZZZZ2ZZZZZZZ041 – 1127217 ✉ Teklif Al Teklif Al Stok kodu: 1127217 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Sensing range Sensing range min. 4 mm Sensing range max. 220 mm Adjustable switching threshold for background suppression 15 mm … 220 mm Reference object Object with 90% remission factor (complies with standard white according to DIN 5033) Minimum distance between set sensing range and background (black 6% / white 90%) 3 mm, at a distance of 80 mm Recommended sensing range for the best performance 40 mm … 140 mm Emitted beam Light source PinPoint LED Type of light Visible red light Shape of light spot Point-shaped Light spot size (distance) Ø 4.2 mm (130 mm) Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.5° (at Ta = +23 °C) Key LED figures Normative reference EN 62471:2008-09 | IEC 62471:2006, modified LED risk group marking Free group Wave length 635 nm Average service life 100,000 h at Ta = +25 °C Smallest detectable object (MDO) typ. 0.2 mm (At 130 mm distance (object with 90% remission (complies with standard white according to DIN 5033))) Adjustment Teach-Turn adjustment BluePilot: For setting the sensing range Indication LED blue BluePilot: sensing range indicator LED green Operating indicatorStatic on: power on LED yellow Status of received light beamStatic on: object presentStatic off: object not present Special applications Detecting flat objects Safety-related parameters MTTFD 642 years DCavg 0 % TM (mission time) 20 years (EN ISO 13849, rate of use: 60 %) Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple ≤ 5 Vpp Usage category DC-12 (According to EN 60947-5-2) DC-13 (According to EN 60947-5-2) Current consumption ≤ 25 mA, without load. At UB = 24 V Protection class III Digital output Number 1 Type Push-pull: PNP/NPN Signal voltage PNP HIGH/LOW Approx. UB-2.5 V / 0 V Signal voltage NPN HIGH/LOW Approx. UB / < 2.5 V Output current Imax. ≤ 100 mA Circuit protection outputs Reverse polarity protected Overcurrent protected Short-circuit protected Response time ≤ 500 µs Repeatability (response time) 150 µs Switching frequency 1,000 Hz Pin/Wire assignment Function of pin 4/black (BK) Digital output, dark switching, object present → output Q LOW Mechanical data Housing Rectangular Design detail Flat Dimensions (W x H x D) 16 mm x 40.1 mm x 12.1 mm Connection Cable with special connector, 1,015 mm Connection detail Deep-freeze property Do not bend below 0 °C Conductor size 0.14 mm² Cable diameter Ø 3.4 mm Length of cable (L) 1,000 mm Material Housing Plastic, VISTAL® Front screen Plastic, PMMA Cable PVC Male connector Plastic, VISTAL® Weight Approx. 30 g Maximum tightening torque of the fixing screws 0.4 Nm Ambient data Enclosure rating IP66 (EN 60529) IP67 (EN 60529) Ambient operating temperature –40 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C Typ. Ambient light immunity Artificial light: ≤ 50,000 lx Sunlight: ≤ 50,000 lx Shock resistance 30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27)) Vibration resistance 10 Hz … 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6)) Air humidity 35 % … 95 %, Relative humidity (no condensation) Electromagnetic compatibility (EMC) EN 60947-5-2 Resistance to cleaning agent ECOLAB UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 İlgili ürünler Accessory, Series 4000 Photoelectric, Mounting Bracket, Right Angle – 60-1479ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Accessories, Mounting, Kit – 129-135ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MPB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensors – 42AF-E1UZB1-G4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Sensing range Sensing range min. 4 mm Sensing range max. 220 mm Adjustable switching threshold for background suppression 15 mm … 220 mm Reference object Object with 90% remission factor (complies with standard white according to DIN 5033) Minimum distance between set sensing range and background (black 6% / white 90%) 3 mm, at a distance of 80 mm Recommended sensing range for the best performance 40 mm … 140 mm Emitted beam Light source PinPoint LED Type of light Visible red light Shape of light spot Point-shaped Light spot size (distance) Ø 4.2 mm (130 mm) Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.5° (at Ta = +23 °C) Key LED figures Normative reference EN 62471:2008-09 | IEC 62471:2006, modified LED risk group marking Free group Wave length 635 nm Average service life 100,000 h at Ta = +25 °C Smallest detectable object (MDO) typ. 0.2 mm (At 130 mm distance (object with 90% remission (complies with standard white according to DIN 5033))) Adjustment Teach-Turn adjustment BluePilot: For setting the sensing range Indication LED blue BluePilot: sensing range indicator LED green Operating indicatorStatic on: power on LED yellow Status of received light beamStatic on: object presentStatic off: object not present Special applications Detecting flat objects Safety-related parameters MTTFD 642 years DCavg 0 % TM (mission time) 20 years (EN ISO 13849, rate of use: 60 %) Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple ≤ 5 Vpp Usage category DC-12 (According to EN 60947-5-2) DC-13 (According to EN 60947-5-2) Current consumption ≤ 25 mA, without load. At UB = 24 V Protection class III Digital output Number 1 Type Push-pull: PNP/NPN Signal voltage PNP HIGH/LOW Approx. UB-2.5 V / 0 V Signal voltage NPN HIGH/LOW Approx. UB / < 2.5 V Output current Imax. ≤ 100 mA Circuit protection outputs Reverse polarity protected Overcurrent protected Short-circuit protected Response time ≤ 500 µs Repeatability (response time) 150 µs Switching frequency 1,000 Hz Pin/Wire assignment Function of pin 4/black (BK) Digital output, dark switching, object present → output Q LOW Mechanical data Housing Rectangular Design detail Flat Dimensions (W x H x D) 16 mm x 40.1 mm x 12.1 mm Connection Cable with special connector, 1,015 mm Connection detail Deep-freeze property Do not bend below 0 °C Conductor size 0.14 mm² Cable diameter Ø 3.4 mm Length of cable (L) 1,000 mm Material Housing Plastic, VISTAL® Front screen Plastic, PMMA Cable PVC Male connector Plastic, VISTAL® Weight Approx. 30 g Maximum tightening torque of the fixing screws 0.4 Nm Ambient data Enclosure rating IP66 (EN 60529) IP67 (EN 60529) Ambient operating temperature –40 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C Typ. Ambient light immunity Artificial light: ≤ 50,000 lx Sunlight: ≤ 50,000 lx Shock resistance 30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27)) Vibration resistance 10 Hz … 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6)) Air humidity 35 % … 95 %, Relative humidity (no condensation) Electromagnetic compatibility (EMC) EN 60947-5-2 Resistance to cleaning agent ECOLAB UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528
