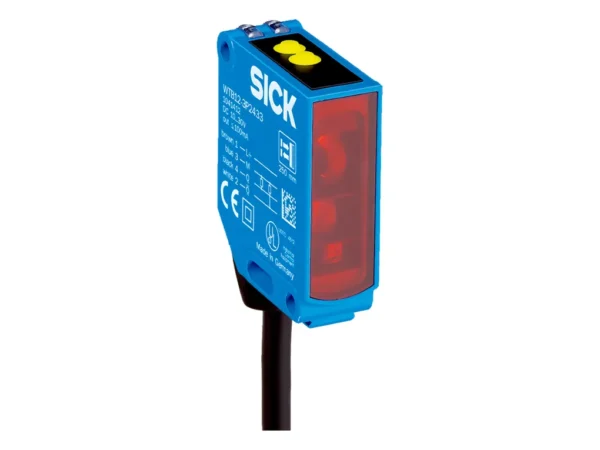

Home Fotoelektrik Sensörler WTB12-3P3433 – 1112363 🔍 WTB12-3P3433 – 1112363 ✉ Teklif Al Teklif Al Stok kodu: 1112363 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Sensing range max. 20 mm … 350 mm Sensing range 20 mm … 350 mm Emitted beam Light source LED Type of light Visible red light Light spot size (distance) Ø 6 mm (200 mm) Key LED figures Wave length 640 nm Adjustment Double teach-in button Items supplied 2 x clamps BEF-KH-W12, incl. screws Safety-related parameters MTTFD 815 years DCavg 0 % TM (mission time) 20 years Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 45 mA Protection class III Digital output Type PNP Switching mode Light/dark switching Signal voltage PNP HIGH/LOW > Uv – 2,5 V / ca. 0 V Output current Imax. ≤ 100 mA Response time ≤ 330 µs Switching frequency 1,500 Hz Output function Complementary Circuit protection A C D Mechanical data Housing Rectangular Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm Connection Cable with M12 male connector, 4-pin, 270 mm Connection detail Length of cable (L) 270 mm Material Housing Metal Front screen Plastic, PMMA Ambient data Enclosure rating IP66 IP67 Ambient operating temperature –40 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 İlgili ürünler Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 50 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA2-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git 45LSP Optical Fork Sensor, 50 mm Sensing Gap, 10–30V DC Operating Voltage, Light or Dark Operate Selectable, 3-pin Pico QD, NPN Output Type – 45LSP-2LNA2-P3ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-P2MNB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Accessories, Reflector, Fog Resistant, 100X100 mm – 92-108ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Sensing range max. 20 mm … 350 mm Sensing range 20 mm … 350 mm Emitted beam Light source LED Type of light Visible red light Light spot size (distance) Ø 6 mm (200 mm) Key LED figures Wave length 640 nm Adjustment Double teach-in button Items supplied 2 x clamps BEF-KH-W12, incl. screws Safety-related parameters MTTFD 815 years DCavg 0 % TM (mission time) 20 years Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 45 mA Protection class III Digital output Type PNP Switching mode Light/dark switching Signal voltage PNP HIGH/LOW > Uv – 2,5 V / ca. 0 V Output current Imax. ≤ 100 mA Response time ≤ 330 µs Switching frequency 1,500 Hz Output function Complementary Circuit protection A C D Mechanical data Housing Rectangular Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm Connection Cable with M12 male connector, 4-pin, 270 mm Connection detail Length of cable (L) 270 mm Material Housing Metal Front screen Plastic, PMMA Ambient data Enclosure rating IP66 IP67 Ambient operating temperature –40 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528
