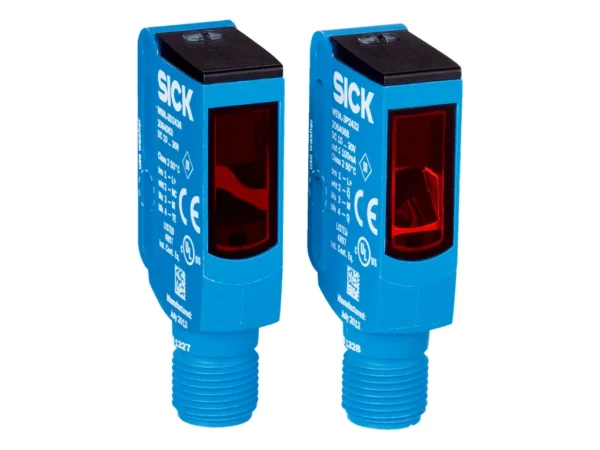

Name: SICK 1098211 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1098211
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle	Through-beam photoelectric sensor
Dimensions (W x H x D)	12.2 mm x 52.2 mm x 23.6 mm
Housing design (light emission)	Rectangular
Mounting hole	M3
Sensing range max.	0 m … 60 m
Sensing range	0 m … 50 m
Type of light	Visible red light
Light source	Laser
Light spot size (distance)	Ø 1 mm (500 mm)
Wave length	650 nm
Laser class	1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
Adjustment	IO-Link Single teach-in button
Pin 2 configuration	External input, Teach-in input, Detection output, logic output, Device contamination alarm output
Special applications	Detecting small objects

Mechanics/electronics

Supply voltage U_B	10 V DC … 30 V DC
Ripple	< 5 V_pp
Current consumption	30 mA
Switching output	PNP
Output function	Complementary
Switching mode	Light/dark switching
Output current I_max.	≤ 100 mA
Response time	≤ 0.5 ms
Response time Q/ on Pin 2	300 µs … 450 µs
Switching frequency	1,000 Hz
Switching frequency Q / to pin 2	≤ 1,000 Hz
Connection type	Cable with M12 male connector, 4-pin, 120 mm
Circuit protection	A ¹⁰⁾ B ¹¹⁾ C ¹²⁾
Protection class	III
Weight	13 g
Housing material	Plastic, VISTAL®
Optics material	Plastic, PMMA
Enclosure rating	IP66 IP67 IP69K
Ambient operating temperature	–10 °C … +50 °C
Ambient operating temperature extended	–30 °C … +55 °C ¹³⁾ ¹⁴⁾
Ambient temperature, storage	–30 °C … +70 °C
UL File No.	NRKH.E181493
Repeatability Q/ on Pin 2:	150 µs

Safety-related parameters

Communication interface

Communication interface	IO-Link V1.1
Communication Interface detail	COM2 (38,4 kBaud)
Cycle time	2.3 ms
Process data length	16 Bit
Process data structure	Bit 0 = switching signal Q_L1 Bit 1 = switching signal Q_L2 Bit 2 … 15 = empty
VendorID	26
DeviceID HEX	0x80011C
DeviceID DEC	8388892

Smart Task

Smart Task name

Base logics

Logic function

Direct

AND

WINDOW

Hysteresis

Timer function

Deactivated

On delay

Off delay

ON and OFF delay

Impulse (one shot)

Inverter

Yes

Switching frequency

SIO Direct: 1000 Hz

SIO Logic: 1000 Hz

IOL: 900 Hz

Response time

SIO Direct: 300 µs … 450 µs

SIO Logic: 500 µs … 600 µs

IOL: 500 µs … 900 µs

Repeatability

SIO Direct: 150 µs

SIO Logic: 150 µs

IOL: 400 µs

Switching signal
Switching signal Q_L1	Output type (dependant on the adjusted threshold)
Switching signal Q_L2	Output type (dependant on the adjusted threshold)

Diagnosis

Device status	Yes
Function reserve	Yes
