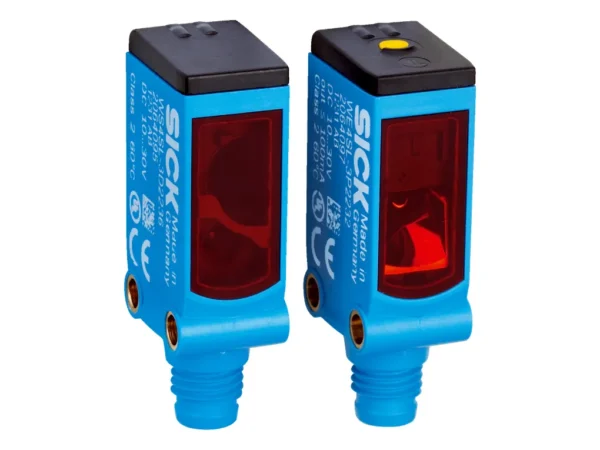

Home Fotoelektrik Sensörler WSE4SL-3P3237 – 1095976 🔍 WSE4SL-3P3237 – 1095976 ✉ Teklif Al Teklif Al Stok kodu: 1095976 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Through-beam photoelectric sensor Sensing range max. 0 m … 60 m Sensing range 0 m … 50 m Emitted beam Light source Laser Type of light Visible red light Light spot size (distance) Ø 1 mm (500 mm) Key laser figures Normative reference EN 60825-1:2014, IEC 60825-1:2014 / CDRH 21 CFR 1040.10 & 1040.11 Laser class 1 Wave length 650 nm Adjustment Single teach-in button Special applications Detecting small objects Mounting hole M3 Safety-related parameters MTTFD 444 years (EN ISO 13849-1) DCavg 0 % Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 30 mA Protection class III Digital output Type PNP Switching mode Light/dark switching Output current Imax. ≤ 100 mA Response time ≤ 0.5 ms Switching frequency 1,000 Hz Output function Complementary Circuit protection A B C Mechanical data Housing Rectangular Design detail Slim Dimensions (W x H x D) 12.2 mm x 41.8 mm x 17.3 mm Connection Cable with M8 male connector, 4-pin Connection detail Conductor size 0.14 mm² Length of cable (L) 100 mm Material Housing Plastic, Novodur Front screen Plastic, PMMA Cable PVC Weight 100 g Ambient data Enclosure rating IP66 IP67 Ambient operating temperature –10 °C … +50 °C Ambient operating temperature extended –30 °C … +55 °C Ambient temperature, storage –30 °C … +70 °C Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528 İlgili ürünler Endüstriyel bağlantı kablosu – 42CA-P2MNB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-P2MPB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git 45LSP Optical Fork Sensor, 50 mm Sensing Gap, 10–30V DC Operating Voltage, Light or Dark Operate Selectable, 3-pin Pico QD, NPN Output Type – 45LSP-2LNA2-P3ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Distance Measurement Sensor – 45DMS-B8LAT1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Through-beam photoelectric sensor Sensing range max. 0 m … 60 m Sensing range 0 m … 50 m Emitted beam Light source Laser Type of light Visible red light Light spot size (distance) Ø 1 mm (500 mm) Key laser figures Normative reference EN 60825-1:2014, IEC 60825-1:2014 / CDRH 21 CFR 1040.10 & 1040.11 Laser class 1 Wave length 650 nm Adjustment Single teach-in button Special applications Detecting small objects Mounting hole M3 Safety-related parameters MTTFD 444 years (EN ISO 13849-1) DCavg 0 % Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 30 mA Protection class III Digital output Type PNP Switching mode Light/dark switching Output current Imax. ≤ 100 mA Response time ≤ 0.5 ms Switching frequency 1,000 Hz Output function Complementary Circuit protection A B C Mechanical data Housing Rectangular Design detail Slim Dimensions (W x H x D) 12.2 mm x 41.8 mm x 17.3 mm Connection Cable with M8 male connector, 4-pin Connection detail Conductor size 0.14 mm² Length of cable (L) 100 mm Material Housing Plastic, Novodur Front screen Plastic, PMMA Cable PVC Weight 100 g Ambient data Enclosure rating IP66 IP67 Ambient operating temperature –10 °C … +50 °C Ambient operating temperature extended –30 °C … +55 °C Ambient temperature, storage –30 °C … +70 °C Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528
