Name: SICK 1097831 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1097831
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle

Through-beam photoelectric sensor

Sensing range max.

0 m … 5 m

Sensing range

0 m … 4.5 m

Emitted beam
Light source	PinPoint LED
Type of light	Visible red light
Light spot size (distance)	Ø 50 mm (2 m)

Key LED figures
Wave length	650 nm

Special applications

Hygienic and washdown zones

Part number of individual components

2058707 WS4S-3D3430V 2058709 WE4S-3F3430V

Housing design

Washdown

Pin 2 configuration

Status indicator operating reserve, external input, Teach-in input, Detection output, logic output, alarm output operating reserve

Safety-related parameters

MTTF_D	693 years
DC_avg	0 %
T_M (mission time)	20 years

Communication interface

IO-Link	✔ , IO-Link V1.1
VendorID	26
DeviceID HEX	0x8001E8
DeviceID DEC	8389096

Electrical data

Supply voltage U_B

10 V DC … 30 V DC

Ripple

< 5 V_pp

Protection class

III

Digital output
Type	PNP
Switching mode	Dark switching
Output current I_max.	≤ 100 mA
Response time	< 0.5 ms
Repeatability (response time)	150 µs
Switching frequency	1,000 Hz

Circuit protection

A, B, C

Response time Q/ on Pin 2

300 µs … 450 µs

Switching frequency Q / to pin 2

1,000 Hz ¹⁰⁾

Test input sender off

TE to 0 V

Mechanical data

Housing

Rectangular

Design detail

Slim

Dimensions (W x H x D)

15.25 mm x 49.2 mm x 22.2 mm

Connection

Cable with M12 male connector, 4-pin

Connection detail
Length of cable (L)	150 mm

Material
Housing	Stainless steel, Stainless steel V4A (1.4404, 316L)
Front screen	Plastic, PMMA
Cable	PVC

Weight

60 g

Ambient data

Enclosure rating	IP66 IP67 IP68 IP69K
Ambient operating temperature	–30 °C … +70 °C
Ambient temperature, storage	–30 °C … +75 °C
UL File No.	NRKH.E181493 & NRKH7.E181493

Smart Task

Smart Task name

Base logics

Logic function

Direct

AND

WINDOW

Hysteresis

Timer function

Deactivated

On delay

Off delay

ON and OFF delay

Impulse (one shot)

Inverter

Yes

Switching frequency

SIO Direct: 1000 Hz

SIO Logic: 1000 Hz

IOL: 900 Hz

Response time

SIO Direct: 300 µs … 450 µs

SIO Logic: 500 µs … 600 µs

IOL: 500 µs … 900 µs

Repeatability

SIO Direct: 150 µs

SIO Logic: 150 µs

IOL: 400 µs

Switching signal
Switching signal Q_L1	Switching output
Switching signal Q_L2	Switching output

Diagnosis

Device status	Yes
Function reserve	Yes

Classifications

ECLASS 5.0	27270901
ECLASS 5.1.4	27270901
ECLASS 6.0	27270901
ECLASS 6.2	27270901
ECLASS 7.0	27270901
ECLASS 8.0	27270901
ECLASS 8.1	27270901
ECLASS 9.0	27270901
ECLASS 10.0	27270901
ECLASS 11.0	27270901
ECLASS 12.0	27270901
ETIM 5.0	EC002716
ETIM 6.0	EC002716
ETIM 7.0	EC002716
ETIM 8.0	EC002716
UNSPSC 16.0901	39121528

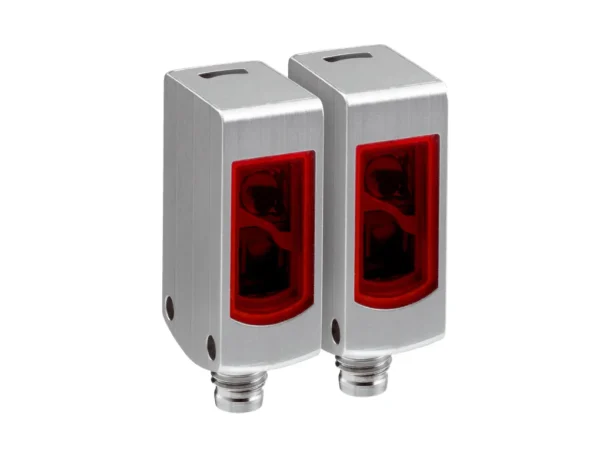

WSE4SC-3P3430VA00 – 1097831
