Tecnichal data

Features

Functional principle

Through-beam photoelectric sensor

Sensing range
Sensing range min.	0 m
Sensing range max.	10 m
Maximum distance range from receiver to sender (operating reserve 1)	0 m … 10 m
Recommended distance range from receiver to sender (operating reserve 2)	0 m … 7.5 m
Recommended sensing range for the best performance	0 m … 7.5 m

Emitted beam
Light source	PinPoint LED
Type of light	Visible red light
Shape of light spot	Point-shaped
Light spot size (distance)	Ø 40 mm (1,000 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)	< +/- 1.5° (at Ta = +23 °C)

Key LED figures
Normative reference	EN 62471:2008-09 \| IEC 62471:2006, modified
LED risk group marking	Free group
Wave length	635 nm
Average service life	100,000 h at T_a = +25 °C

Adjustment
Wire/pin	For deactivation of the sender and execution of test logic

Indication
LED blue	BluePilot: Alignment aid
LED green	Operating indicator Static on: power on
LED yellow	Status of received light beam Static on: object not present Static off: object present

Part number of individual components

WSO4FP-313ZZ1A0ZZZ, 2121135

WEO4FP-31311100ZZZ, 2124452

Safety-related parameters

MTTF_D	574 years
DC_avg	0 %
T_M (mission time)	20 years

Electrical data

Supply voltage U_B

10 V DC … 30 V DC

Ripple

≤ 5 V_pp

Usage category

DC-12 (According to EN 60947-5-2)

DC-13 (According to EN 60947-5-2)

Current consumption

≤ 20 mA, without load. At U_B = 24 V

Protection class

III

Digital output
Number	1
Type	Push-pull: PNP/NPN
Signal voltage PNP HIGH/LOW	Approx. U_B-2.5 V / 0 V
Signal voltage NPN HIGH/LOW	Approx. U_B / < 2.5 V
Output current I_max.	≤ 100 mA
Circuit protection outputs	Reverse polarity protected
	Overcurrent protected
	Short-circuit protected
Response time	≤ 500 µs
Switching frequency	1,000 Hz

Pin/Wire assignment, sender
Function of pin 4/black (BK)	Input, sender off, LOW active

Pin/Wire assignment, receiver
Function of pin 4/black (BK)	Digital output, dark switching, object present → output Q HIGH

Mechanical data

Housing

Rectangular

Design detail

Flat

Dimensions (W x H x D)

16 mm x 40.1 mm x 12.1 mm

Connection

Cable with connector M8, 3-pin, 110 mm

Connection detail
Deep-freeze property	Do not bend below 0 °C
Conductor size	0.14 mm²
Cable diameter	Ø 3.4 mm
Length of cable (L)	77 mm

Material
Housing	Plastic, VISTAL®
Front screen	Plastic, PMMA
Cable	PVC
Male connector	Plastic, VISTAL®

Weight

Approx. 30 g

Maximum tightening torque of the fixing screws

0.4 Nm

Ambient data

Enclosure rating	IP66 (EN 60529) IP67 (EN 60529)
Ambient operating temperature	–40 °C … +60 °C
Ambient temperature, storage	–40 °C … +75 °C
Typ. Ambient light immunity	Artificial light: ≤ 15,000 lx Sunlight: ≤ 50,000 lx
Shock resistance	30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27))
Vibration resistance	10 Hz … 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6))
Air humidity	35 % … 95 %, Relative humidity (no condensation)
Electromagnetic compatibility (EMC)	EN 60947-5-2
Resistance to cleaning agent	ECOLAB
UL File No.	NRKH.E181493 & NRKH7.E181493

Classifications

ECLASS 5.0	27270901
ECLASS 5.1.4	27270901
ECLASS 6.0	27270901
ECLASS 6.2	27270901
ECLASS 7.0	27270901
ECLASS 8.0	27270901
ECLASS 8.1	27270901
ECLASS 9.0	27270901
ECLASS 10.0	27270901
ECLASS 11.0	27270901
ECLASS 12.0	27270901
ETIM 5.0	EC002716
ETIM 6.0	EC002716
ETIM 7.0	EC002716
ETIM 8.0	EC002716
UNSPSC 16.0901	39121528

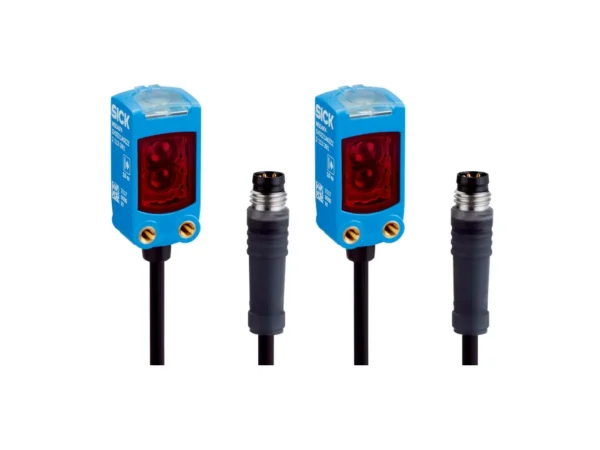

WSE4FP-31311100ZZZZ2ZZZZZZZZZ1 – 1123398
