Name: SICK 1097830 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1097830
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle

Photoelectric retro-reflective sensor

Functional principle detail

Autocollimation

Sensing range max.

0 m … 5 m

Sensing range

0 m … 3 m

Polarisation filters

Yes

Emitted beam
Light source	PinPoint LED
Type of light	Visible red light
Light spot size (distance)	Ø 45 mm (1.5 m)

Key LED figures
Wave length	650 nm

Adjustment

Single teach-in button

Special applications

Hygienic and washdown zones, Detecting transparent objects

Housing design

Washdown

Pin 2 configuration

External input, Teach-in input, Sender off input, Detection output, logic output, Device contamination alarm output

AutoAdapt

✔

Safety-related parameters

MTTF_D	1,222 years
DC_avg	0 %

Communication interface

IO-Link	✔ , COM2 (38,4 kBaud)
Data transmission rate	COM2 (38,4 kBaud)
Cycle time	2.3 ms
Process data length	16 Bit
Process data structure	Bit 0 = switching signal Q_L1
	Bit 1 = switching signal Q_L2
	Bit 2 … 15 = empty
VendorID	26
DeviceID HEX	0x8001CF
DeviceID DEC	8389071

Electrical data

Supply voltage U_B

10 V DC … 30 V DC

Ripple

< 5 V_pp

Current consumption

30 mA

Protection class

III

Digital output
Type	PNP
Switching mode	Light/dark switching
Output current I_max.	≤ 100 mA
Response time	< 0.5 ms
Repeatability (response time)	150 µs
Switching frequency	1,000 Hz

Attenuation along light beam

> 8 %

Output function

Complementary

Circuit protection

A, B, C

Response time Q/ on Pin 2

300 µs … 450 µs ¹⁰⁾

Switching frequency Q / to pin 2

1,000 Hz ¹¹⁾

Mechanical data

Housing

Rectangular

Design detail

Slim

Dimensions (W x H x D)

15.25 mm x 44.9 mm x 22.2 mm

Connection

Male connector M8, 4-pin

Material
Housing	Stainless steel, Stainless steel V4A (1.4404, 316L)
Front screen	Plastic, PMMA

Weight

40 g

Ambient data

Enclosure rating	IP66 IP67 IP68 IP69K
Ambient operating temperature	–30 °C … +70 °C –30 °C … +60 °C
Ambient temperature, storage	–30 °C … +75 °C
UL File No.	NRKH.E181493 & NRKH7.E181493

Smart Task

Smart Task name

Base logics

Logic function

Direct

AND

WINDOW

Hysteresis

Timer function

Deactivated

On delay

Off delay

ON and OFF delay

Impulse (one shot)

Inverter

Yes

Switching frequency

SIO Direct: 1000 Hz

SIO Logic: 1000 Hz

IOL: 900 Hz

Response time

SIO Direct: 300 µs … 450 µs

SIO Logic: 500 µs … 600 µs

IOL: 500 µs … 900 µs

Repeatability

SIO Direct: 150 µs

SIO Logic: 150 µs

IOL: 400 µs

Switching signal
Switching signal Q_L1	Switching output
Switching signal Q_L2	Switching output

Diagnosis

Device status	Yes
Quality of teach	Yes
Quality of run	Yes, Contamination display

Classifications

ECLASS 5.0	27270902
ECLASS 5.1.4	27270902
ECLASS 6.0	27270902
ECLASS 6.2	27270902
ECLASS 7.0	27270902
ECLASS 8.0	27270902
ECLASS 8.1	27270902
ECLASS 9.0	27270902
ECLASS 10.0	27270902
ECLASS 11.0	27270902
ECLASS 12.0	27270902
ETIM 5.0	EC002717
ETIM 6.0	EC002717
ETIM 7.0	EC002717
ETIM 8.0	EC002717
UNSPSC 16.0901	39121528

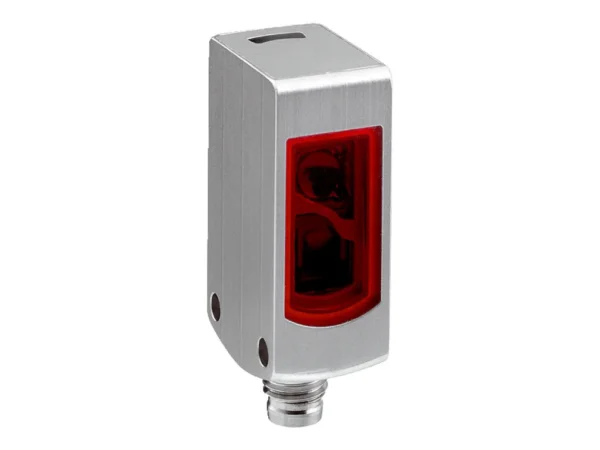

WLG4SC-3P2232VA00 – 1097830
