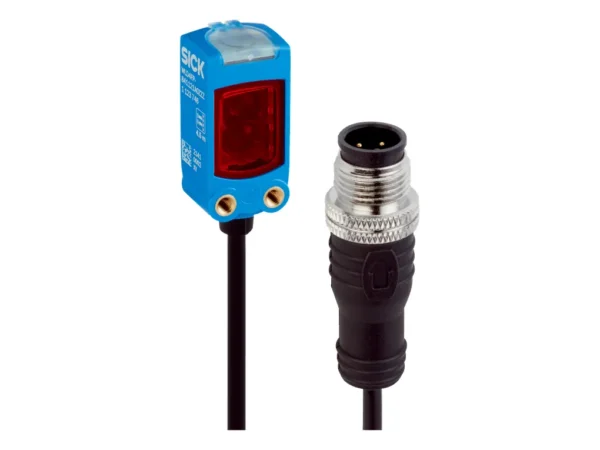

Home Fotoelektrik Sensörler WLD4FP-841111A0ZZZZ2ZZZZZZZZZ1 – 1123748 🔍 WLD4FP-841111A0ZZZZ2ZZZZZZZZZ1 – 1123748 ✉ Teklif Al Teklif Al Stok kodu: 1123748 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail With minimum distance to reflector (dual lens system) Sensing range Sensing range min. 0 m Sensing range max. 4.5 m Maximum distance range from reflector to sensor (operating reserve 1) 0.015 m … 4.5 m Recommended distance range from reflector to sensor (operating reserve 3,75) 0.035 m … 3.9 m Reference reflector Reflector P250 Recommended sensing range for the best performance 0.035 m … 3.9 m Polarisation filters Yes Emitted beam Light source PinPoint LED Type of light Visible red light Shape of light spot Point-shaped Light spot size (distance) Ø 38 mm (1,000 mm) Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.5° (at Ta = +23 °C) Key LED figures Normative reference EN 62471:2008-09 | IEC 62471:2006, modified LED risk group marking Free group Wave length 635 nm Average service life 100,000 h at Ta = +25 °C Adjustment None – Indication LED green Operating indicatorStatic on: power on LED yellow Status of received light beamStatic on: object not presentStatic off: object presentFlashing: Below the 1.5 function reserve Safety-related parameters MTTFD 1,390 years DCavg 0 % TM (mission time) 20 years (EN ISO 13849, rate of use: 60 %) Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple ≤ 5 Vpp Usage category DC-12 (According to EN 60947-5-2) DC-13 (According to EN 60947-5-2) Current consumption ≤ 20 mA, without load. At UB = 24 V Protection class III Digital output Number 2 (Complementary) Type Push-pull: PNP/NPN Signal voltage PNP HIGH/LOW Approx. UB-2.5 V / 0 V Signal voltage NPN HIGH/LOW Approx. UB / < 2.5 V Output current Imax. ≤ 100 mA Circuit protection outputs Reverse polarity protected Overcurrent protected Short-circuit protected Response time ≤ 500 µs Repeatability (response time) 150 µs Switching frequency 1,000 Hz Pin/Wire assignment Function of pin 4/black (BK) Digital output, dark switching, object present → output Q HIGH Function of pin 2/white (WH) Digital output, light switching, object present → output Q LOW Mechanical data Housing Rectangular Design detail Flat Dimensions (W x H x D) 16 mm x 40.1 mm x 12.1 mm Connection Cable with M12 male connector, 4-pin, 182 mm Connection detail Deep-freeze property Do not bend below 0 °C Conductor size 0.14 mm² Cable diameter Ø 3.4 mm Length of cable (L) 140 mm Material Housing Plastic, VISTAL® Front screen Plastic, PMMA Cable PVC Male connector Plastic, VISTAL® Weight Approx. 30 g Maximum tightening torque of the fixing screws 0.4 Nm Ambient data Enclosure rating IP66 (EN 60529) IP67 (EN 60529) IP69 (EN 60529) Ambient operating temperature –40 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C Typ. Ambient light immunity Artificial light: ≤ 50,000 lx Sunlight: ≤ 50,000 lx Shock resistance 30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27)) Vibration resistance 10 Hz … 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6)) Air humidity 35 % … 95 %, Relative humidity (no condensation) Electromagnetic compatibility (EMC) EN 60947-5-2 Resistance to cleaning agent ECOLAB UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270902 ECLASS 5.1.4 27270902 ECLASS 6.0 27270902 ECLASS 6.2 27270902 ECLASS 7.0 27270902 ECLASS 8.0 27270902 ECLASS 8.1 27270902 ECLASS 9.0 27270902 ECLASS 10.0 27270902 ECLASS 11.0 27270902 ECLASS 12.0 27270904 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528 İlgili ürünler Photoelectric Accessories, Reflector, Fog Resistant, 100X100 mm – 92-108ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Accessories, Mounting, Kit – 129-135ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MNB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MPA-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail With minimum distance to reflector (dual lens system) Sensing range Sensing range min. 0 m Sensing range max. 4.5 m Maximum distance range from reflector to sensor (operating reserve 1) 0.015 m … 4.5 m Recommended distance range from reflector to sensor (operating reserve 3,75) 0.035 m … 3.9 m Reference reflector Reflector P250 Recommended sensing range for the best performance 0.035 m … 3.9 m Polarisation filters Yes Emitted beam Light source PinPoint LED Type of light Visible red light Shape of light spot Point-shaped Light spot size (distance) Ø 38 mm (1,000 mm) Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.5° (at Ta = +23 °C) Key LED figures Normative reference EN 62471:2008-09 | IEC 62471:2006, modified LED risk group marking Free group Wave length 635 nm Average service life 100,000 h at Ta = +25 °C Adjustment None – Indication LED green Operating indicatorStatic on: power on LED yellow Status of received light beamStatic on: object not presentStatic off: object presentFlashing: Below the 1.5 function reserve Safety-related parameters MTTFD 1,390 years DCavg 0 % TM (mission time) 20 years (EN ISO 13849, rate of use: 60 %) Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple ≤ 5 Vpp Usage category DC-12 (According to EN 60947-5-2) DC-13 (According to EN 60947-5-2) Current consumption ≤ 20 mA, without load. At UB = 24 V Protection class III Digital output Number 2 (Complementary) Type Push-pull: PNP/NPN Signal voltage PNP HIGH/LOW Approx. UB-2.5 V / 0 V Signal voltage NPN HIGH/LOW Approx. UB / < 2.5 V Output current Imax. ≤ 100 mA Circuit protection outputs Reverse polarity protected Overcurrent protected Short-circuit protected Response time ≤ 500 µs Repeatability (response time) 150 µs Switching frequency 1,000 Hz Pin/Wire assignment Function of pin 4/black (BK) Digital output, dark switching, object present → output Q HIGH Function of pin 2/white (WH) Digital output, light switching, object present → output Q LOW Mechanical data Housing Rectangular Design detail Flat Dimensions (W x H x D) 16 mm x 40.1 mm x 12.1 mm Connection Cable with M12 male connector, 4-pin, 182 mm Connection detail Deep-freeze property Do not bend below 0 °C Conductor size 0.14 mm² Cable diameter Ø 3.4 mm Length of cable (L) 140 mm Material Housing Plastic, VISTAL® Front screen Plastic, PMMA Cable PVC Male connector Plastic, VISTAL® Weight Approx. 30 g Maximum tightening torque of the fixing screws 0.4 Nm Ambient data Enclosure rating IP66 (EN 60529) IP67 (EN 60529) IP69 (EN 60529) Ambient operating temperature –40 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C Typ. Ambient light immunity Artificial light: ≤ 50,000 lx Sunlight: ≤ 50,000 lx Shock resistance 30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27)) Vibration resistance 10 Hz … 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6)) Air humidity 35 % … 95 %, Relative humidity (no condensation) Electromagnetic compatibility (EMC) EN 60947-5-2 Resistance to cleaning agent ECOLAB UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270902 ECLASS 5.1.4 27270902 ECLASS 6.0 27270902 ECLASS 6.2 27270902 ECLASS 7.0 27270902 ECLASS 8.0 27270902 ECLASS 8.1 27270902 ECLASS 9.0 27270902 ECLASS 10.0 27270902 ECLASS 11.0 27270902 ECLASS 12.0 27270904 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528
