Name: SICK 1098509 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1098509
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle

Photoelectric retro-reflective sensor

Functional principle detail

Autocollimation

Sensing range max.

0 m … 12 m

Sensing range

0 m … 8 m

Polarisation filters

Yes

Emitted beam
Light source	Laser
Type of light	Visible red light
Light spot size (distance)	Ø 1 mm (500 mm)

Key laser figures
Normative reference	EN 60825-1:2014, IEC 60825-1:2014 / CDRH 21 CFR 1040.10 & 1040.11
Laser class	1
Wave length	650 nm

Adjustment

IO-Link, Single teach-in button

Required accessories

Auxiliary sensor (e.g. WL4SL-3P2232, 1061561), Smart-Sensor Y-junction SYL-8204-G0M11-X2 (6055012), 2 x connecting cable (e.g. YF8U14-C60VA3M8U14, 2096612), 2 x reflector (e.g. P250F, 5308843)

Mounting hole

Safety-related parameters

MTTF_D	562 years (EN ISO 13849-1)
DC_avg	0 %
T_M (mission time)	10 years

Communication interface

IO-Link	✔ , COM2 (38,4 kBaud)
Data transmission rate	COM2 (38,4 kBaud)
Cycle time	2.3 ms
Process data length	16 Bit
Process data structure	Bit 0 = switching signal Q_L1
	Bit 1 = Detection signal Qint.1
	Bit 2 … 15 = measuring value
VendorID	26
DeviceID HEX	0x800222
DeviceID DEC	8389154

Electrical data

Supply voltage U_B

10 V DC … 30 V DC

Ripple

< 5 V_pp

Current consumption

30 mA

Protection class

III

Digital output
Type	PNP
Switching mode	Light/dark switching
Output current I_max.	≤ 100 mA
Response time	≤ 0.5 ms
Repeatability (response time)	150 µs
Switching frequency	1,000 Hz

Output function

Complementary

Circuit protection

B ¹⁰⁾

C ¹¹⁾

Response time Q/ on Pin 2

300 µs … 450 µs

Switching frequency Q / to pin 2

1,000 Hz ¹²⁾

Mechanical data

Housing

Rectangular

Design detail

Slim

Dimensions (W x H x D)

12.2 mm x 41.8 mm x 17.3 mm

Connection

Male connector M8, 4-pin

Material
Housing	Plastic, Novodur
Front screen	Plastic, PMMA

Weight

100 g

Ambient data

Enclosure rating	IP66 IP67
Ambient operating temperature	–10 °C … +50 °C
Ambient operating temperature extended	–30 °C … +55 °C
Ambient temperature, storage	–30 °C … +70 °C
UL File No.	NRKH.E181493

Smart Task

Smart Task name

Speed and Length Monitoring

Measurement mode

Speed

Length

Length incremental

Relative measurement error related to the measured value

≤ 1 %

Resolution measurement value

1 mm / 1 mm/s

Logic function

WINDOW

Timer function

Impulse width, impulse shift

Max. pulse frequency at the external input (pin 2 / white wire)

≤ 1,000 Hz

Switching signal
Switching signal Q_L1	Switching output to measuring value switching thresholds

Measuring value

Speed measurement value / length measurement value

Diagnosis

Device status	Yes
Quality of teach	Yes
Quality of run	Yes, Contamination display

Classifications

ECLASS 5.0	27270902
ECLASS 5.1.4	27270902
ECLASS 6.0	27270902
ECLASS 6.2	27270902
ECLASS 7.0	27270902
ECLASS 8.0	27270902
ECLASS 8.1	27270902
ECLASS 9.0	27270902
ECLASS 10.0	27270902
ECLASS 11.0	27270902
ECLASS 12.0	27270902
ETIM 5.0	EC002717
ETIM 6.0	EC002717
ETIM 7.0	EC002717
ETIM 8.0	EC002717
UNSPSC 16.0901	39121528

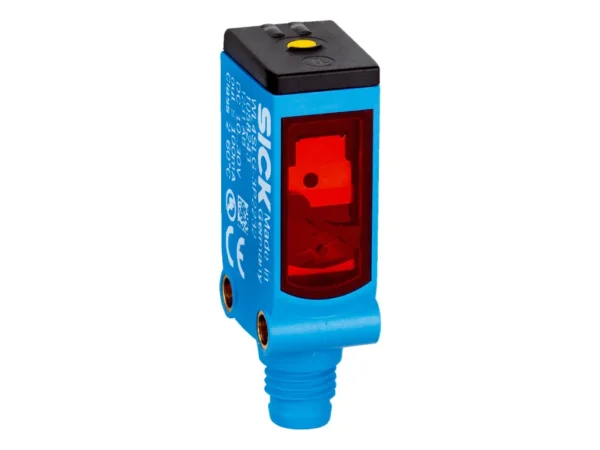

WL4SLC-3P2232A72 – 1098509
