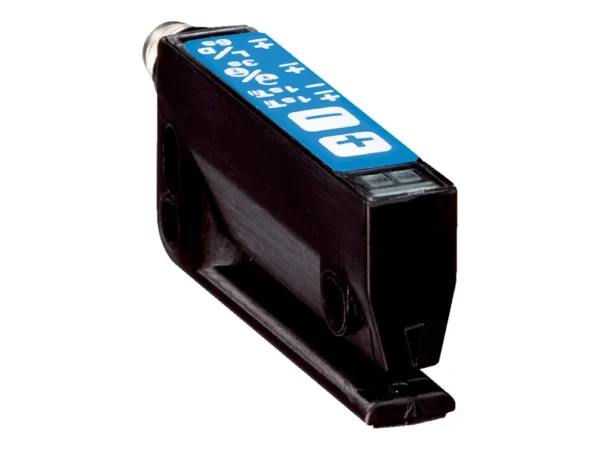

Home Çatal Sensörler WFS3-40P115 – 6055433 🔍 WFS3-40P115 – 6055433 ✉ Teklif Al Teklif Al Stok kodu: 6055433 Kategoriler: Çatal Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Fork sensor Functional principle detail Optical detection principle Dimensions (W x H x D) 10 mm x 25 mm x 64.3 mm Fork width 3 mm Fork depth 42 mm Minimum detectable object (MDO) Gap between Labels / Size of labels: 2 mm Label detection ✔ Light source LED, infrared Adjustment Plus/minus button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic) Teach-in mode 2-point teach-in Teach-in dynamic Mechanics/electronics Current consumption 20 mA Switching frequency 10 kHz Stability of response time ± 20 µs Jitter 40 µs Switching output PNP Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V Switching mode Light/dark switching Output current Imax. 100 mA Input, teach-in (ET) PNP Teach: U > 5 V … < UV Run: U < 4 V Initialization time 20 ms Connection type Cable, 4-wire, 2 m Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight Approx. 36 g Housing material Plastic, PA (glass-fiber reinforced) Safety-related parameters MTTFD 97 years DCavg 0 % Ambient data Shock load According to EN 60068-2-27 UL File No. NRKH.E191603 Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528 İlgili ürünler WFL80-60B416 – 6036833SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFL15-60B416 – 6036830SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFE-080060B337 – 1106556SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFE-030040B321 – 1106551SICKÇatal Sensörler ₺2.800,00 Ürüne Git
Tecnichal data Features Functional principle Fork sensor Functional principle detail Optical detection principle Dimensions (W x H x D) 10 mm x 25 mm x 64.3 mm Fork width 3 mm Fork depth 42 mm Minimum detectable object (MDO) Gap between Labels / Size of labels: 2 mm Label detection ✔ Light source LED, infrared Adjustment Plus/minus button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic) Teach-in mode 2-point teach-in Teach-in dynamic Mechanics/electronics Current consumption 20 mA Switching frequency 10 kHz Stability of response time ± 20 µs Jitter 40 µs Switching output PNP Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V Switching mode Light/dark switching Output current Imax. 100 mA Input, teach-in (ET) PNP Teach: U > 5 V … < UV Run: U < 4 V Initialization time 20 ms Connection type Cable, 4-wire, 2 m Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight Approx. 36 g Housing material Plastic, PA (glass-fiber reinforced) Safety-related parameters MTTFD 97 years DCavg 0 % Ambient data Shock load According to EN 60068-2-27 UL File No. NRKH.E191603 Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528
