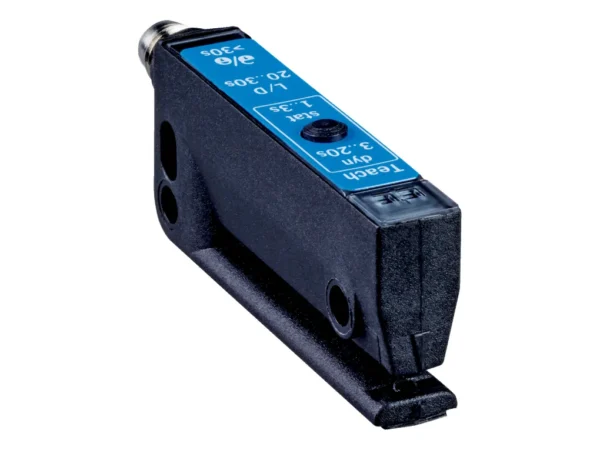

Home Çatal Sensörler WFS3-40B41CA71 – 6058651 🔍 WFS3-40B41CA71 – 6058651 ✉ Teklif Al Teklif Al Stok kodu: 6058651 Kategoriler: Çatal Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Fork sensor Functional principle detail Optical detection principle Dimensions (W x H x D) 10 mm x 25 mm x 64.3 mm Fork width 3 mm Fork depth 42 mm Minimum detectable object (MDO) Gap between Labels / Size of labels: 2 mm Label detection ✔ Light source LED, infrared Adjustment Teach-in button, cable (Teach-in, sensitivity, light/dark switching, key lock, Teach-in dynamic) Teach-in mode 1-point teach-in 2-point teach-in Teach-in dynamic Mechanics/electronics Current consumption 20 mA Switching frequency 15 kHz Stability of response time ± 20 µs Jitter 17 µs Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN High = UV – < 2 V/Low: ≤ 2 V Switching mode Light/dark switching Output current Imax. 100 mA Input, teach-in (ET) Teach: U > 5 V … < UV Run: U < 4 V Initialization time 40 ms Time delay Switch-off delay, 0 ms / 8 ms / 16 ms / 32 ms / 65 ms / 130 ms / 260 ms / 520 ms, adjustable via IO-Link (0 ms = default) Connection type Male connector M8, 4-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight Approx. 36 g Housing material Plastic, PA (glass-fiber reinforced) Safety-related parameters MTTFD 97 years DCavg 0 % Communication interface IO-Link ✔ VendorID 26 DeviceID HEX 8000B0 DeviceID DEC 8388784 Cycle time 2.3 ms Process data structure A Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = not used Bit 3 = Teach busy Bit 4 … 15 = empty Process data structure B Bit 0 = switching signal QL1 Bit 1 = Quality of Run Alarm Bit 2 = not used Bit 3 = Teach busy Bit 4 … 15 = empty Process data structure C Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = not used Bit 3 = Teach busy Bit 4 … 5 = empty Bit 6 … 15 = measuring value Process data structure D Bit 0 = switching signal QL1 Bit 1 = Quality of Run Alarm Bit 2 = not used Bit 3 = Teach busy Bit 4 … 5 = empty Bit 6 … 15 = measuring value Process data structure E Bit 0 = switching signal QL1 (AFC Q1 Output) Bit 1 = switching signal QL2 (AFC Q2 Output) Bit 2 … 15 = counting value Ambient data Shock load According to EN 60068-2-27 UL File No. NRKH.E191603 Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528 İlgili ürünler WFL80-40B416 – 6036826SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFE-030040B137 – 1106554SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFL15-60B416 – 6036830SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFE-080060B337 – 1106556SICKÇatal Sensörler ₺2.800,00 Ürüne Git
Tecnichal data Features Functional principle Fork sensor Functional principle detail Optical detection principle Dimensions (W x H x D) 10 mm x 25 mm x 64.3 mm Fork width 3 mm Fork depth 42 mm Minimum detectable object (MDO) Gap between Labels / Size of labels: 2 mm Label detection ✔ Light source LED, infrared Adjustment Teach-in button, cable (Teach-in, sensitivity, light/dark switching, key lock, Teach-in dynamic) Teach-in mode 1-point teach-in 2-point teach-in Teach-in dynamic Mechanics/electronics Current consumption 20 mA Switching frequency 15 kHz Stability of response time ± 20 µs Jitter 17 µs Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN High = UV – < 2 V/Low: ≤ 2 V Switching mode Light/dark switching Output current Imax. 100 mA Input, teach-in (ET) Teach: U > 5 V … < UV Run: U < 4 V Initialization time 40 ms Time delay Switch-off delay, 0 ms / 8 ms / 16 ms / 32 ms / 65 ms / 130 ms / 260 ms / 520 ms, adjustable via IO-Link (0 ms = default) Connection type Male connector M8, 4-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight Approx. 36 g Housing material Plastic, PA (glass-fiber reinforced) Safety-related parameters MTTFD 97 years DCavg 0 % Communication interface IO-Link ✔ VendorID 26 DeviceID HEX 8000B0 DeviceID DEC 8388784 Cycle time 2.3 ms Process data structure A Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = not used Bit 3 = Teach busy Bit 4 … 15 = empty Process data structure B Bit 0 = switching signal QL1 Bit 1 = Quality of Run Alarm Bit 2 = not used Bit 3 = Teach busy Bit 4 … 15 = empty Process data structure C Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = not used Bit 3 = Teach busy Bit 4 … 5 = empty Bit 6 … 15 = measuring value Process data structure D Bit 0 = switching signal QL1 Bit 1 = Quality of Run Alarm Bit 2 = not used Bit 3 = Teach busy Bit 4 … 5 = empty Bit 6 … 15 = measuring value Process data structure E Bit 0 = switching signal QL1 (AFC Q1 Output) Bit 1 = switching signal QL2 (AFC Q2 Output) Bit 2 … 15 = counting value Ambient data Shock load According to EN 60068-2-27 UL File No. NRKH.E191603 Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528
