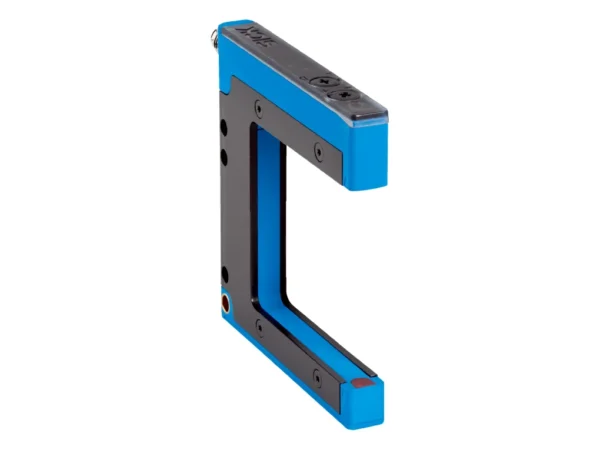

Home Çatal Sensörler WFE-050060B337 – 1106555 🔍 WFE-050060B337 – 1106555 ✉ Teklif Al Teklif Al Stok kodu: 1106555 Kategoriler: Çatal Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Fork sensor Dimensions (W x H x D) 10 mm x 79.3 mm x 78.5 mm Fork width 50 mm Fork depth 60 mm Minimum detectable object (MDO) 0.5 mm Adjustment Potentiometer, light/dark switching Mechanics/electronics Supply voltage 10 V DC … 30 V DC Current consumption < 30 mA Switching frequency 5 kHz Stability of response time ± 20 µs Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN High = UV – < 2 V/Low: ≤ 2 V Switching mode Light/dark switching Switching output hysteresis < 0.1 mm Output current Imax. 100 mA Initialization time 100 ms Connection type Connector M8, 3-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Housing material Plastic, ABS, Coated carbon steel (frame) Indication LED indicator green: power on LED indicator, yellow: Status switching output Q Safety-related parameters MTTFD 1,217 years DCavg 0 % TM (mission time) 20 years Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C Ambient light immunity Sunlight Shock load According to IEC 60068-2-27 (30 g/11 ms) UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528 Connection/Pin assignment Connection type Connector M8, 3-pin Pin assignment BN 1 + (L+) BU 3 – (M) BK 4 Q İlgili ürünler WFL2-40B416 – 6036821SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFL30-40B416 – 6036824SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFE-180120B337 – 1106558SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFL30-60B416 – 6036831SICKÇatal Sensörler ₺2.800,00 Ürüne Git
Tecnichal data Features Functional principle Fork sensor Dimensions (W x H x D) 10 mm x 79.3 mm x 78.5 mm Fork width 50 mm Fork depth 60 mm Minimum detectable object (MDO) 0.5 mm Adjustment Potentiometer, light/dark switching Mechanics/electronics Supply voltage 10 V DC … 30 V DC Current consumption < 30 mA Switching frequency 5 kHz Stability of response time ± 20 µs Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN High = UV – < 2 V/Low: ≤ 2 V Switching mode Light/dark switching Switching output hysteresis < 0.1 mm Output current Imax. 100 mA Initialization time 100 ms Connection type Connector M8, 3-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Housing material Plastic, ABS, Coated carbon steel (frame) Indication LED indicator green: power on LED indicator, yellow: Status switching output Q Safety-related parameters MTTFD 1,217 years DCavg 0 % TM (mission time) 20 years Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C Ambient light immunity Sunlight Shock load According to IEC 60068-2-27 (30 g/11 ms) UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528 Connection/Pin assignment Connection type Connector M8, 3-pin Pin assignment BN 1 + (L+) BU 3 – (M) BK 4 Q
