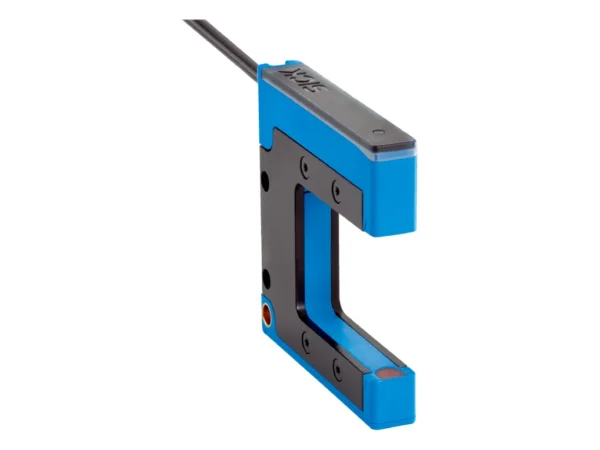

Home Çatal Sensörler WFE-030040B121 – 1106552 🔍 WFE-030040B121 – 1106552 ✉ Teklif Al Teklif Al Stok kodu: 1106552 Kategoriler: Çatal Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Fork sensor Dimensions (W x H x D) 10 mm x 59.3 mm x 60.5 mm Fork width 30 mm Fork depth 40 mm Minimum detectable object (MDO) 0.5 mm Adjustment No adjustment possibility Mechanics/electronics Supply voltage 10 V DC … 30 V DC Current consumption < 30 mA Switching frequency 5 kHz Stability of response time ± 20 µs Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN High = UV – < 2 V/Low: ≤ 2 V Switching mode Dark switching Switching output hysteresis < 0.1 mm Output current Imax. 100 mA Initialization time 100 ms Connection type Cable, open-ended, 3-wire, 2 m Cable diameter 4 mm Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Housing material Plastic, ABS, Coated carbon steel (frame) Indication LED indicator green: power on LED indicator, yellow: Status switching output Q Safety-related parameters MTTFD 1,217 years DCavg 0 % TM (mission time) 20 years Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C Ambient light immunity Sunlight Shock load According to IEC 60068-2-27 (30 g/11 ms) UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528 Connection/Pin assignment Connection type Cable, open-ended, 3-wire, 2 m Connection type Detail Cable diameter 4 mm Pin assignment BN + (L+) BU – (M) BK Q İlgili ürünler WFL50-40B416 – 6036825SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFL120-60B416 – 6036834SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFL2-95B416 – 6036835SICKÇatal Sensörler ₺2.800,00 Ürüne Git WFE-120120B337 – 1106557SICKÇatal Sensörler ₺2.800,00 Ürüne Git
Tecnichal data Features Functional principle Fork sensor Dimensions (W x H x D) 10 mm x 59.3 mm x 60.5 mm Fork width 30 mm Fork depth 40 mm Minimum detectable object (MDO) 0.5 mm Adjustment No adjustment possibility Mechanics/electronics Supply voltage 10 V DC … 30 V DC Current consumption < 30 mA Switching frequency 5 kHz Stability of response time ± 20 µs Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN High = UV – < 2 V/Low: ≤ 2 V Switching mode Dark switching Switching output hysteresis < 0.1 mm Output current Imax. 100 mA Initialization time 100 ms Connection type Cable, open-ended, 3-wire, 2 m Cable diameter 4 mm Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Housing material Plastic, ABS, Coated carbon steel (frame) Indication LED indicator green: power on LED indicator, yellow: Status switching output Q Safety-related parameters MTTFD 1,217 years DCavg 0 % TM (mission time) 20 years Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C Ambient light immunity Sunlight Shock load According to IEC 60068-2-27 (30 g/11 ms) UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270909 ECLASS 5.1.4 27270909 ECLASS 6.0 27270909 ECLASS 6.2 27270909 ECLASS 7.0 27270909 ECLASS 8.0 27270909 ECLASS 8.1 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 UNSPSC 16.0901 39121528 Connection/Pin assignment Connection type Cable, open-ended, 3-wire, 2 m Connection type Detail Cable diameter 4 mm Pin assignment BN + (L+) BU – (M) BK Q
