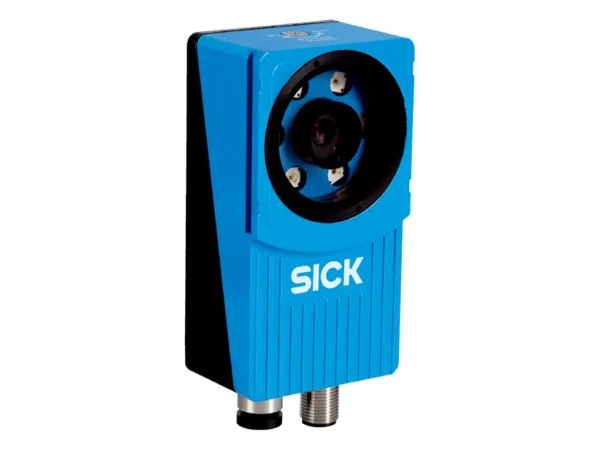

Home Vision Sensor VSPM-6B2413P01 – 1097255 🔍 VSPM-6B2413P01 – 1097255 ✉ Teklif Al Teklif Al Stok kodu: 1097255 Kategoriler: Vision Sensor Marka: SICK Açıklama Tecnichal data Features Task Presence inspection Quality check Measuring, 2D Position determination Technology 2D snapshot Product category Configurable Toolkit Object locator Pixel counter Edge pixel counter Pattern Blob Finder Polygon Edge Circle Distance Angle Edge counter Find maximum Sensor CMOS matrix sensor, grayscale values Optical focus Adjustable focus (manually) Calibration Perspective and lens distortion correction, mm results Robot coordinate alignment ✔ Working distance ≥ 50 mm LED class Risk group 1 (low risk, IEC62471 : 2006) Offline support Emulator Lens S-mount Optical format 1/3″ Mechanics/electronics Connection type M12, 12-pin male connector M12, 4-pin female connector Supply voltage 24 V DC, ± 20 % Ripple < 5 Vpp Current consumption < 450 mA, without output load Enclosure rating IP67 Housing material Aluminum Dimensions (L x W x H) 100 mm x 53 mm x 38 mm Performance Sensor resolution 640 px x 480 px Scan/frame rate 40 fps Number of inspections 64 Reference images 32 objects Interfaces Ethernet ✔ , TCP/IP Data transmission rate 100 Mbit/s EtherNet/IP™ ✔ Data transmission rate 100 Mbit/s Operator interfaces Web server Configuration software SOPAS ET Data storage and retrieval Log for 30 images, record images on PC, store images to FTP Ethernet communication Web API Digital input 4 inputs (24 V) Configurable inputs External trigger, encoder input, External teach, reference object selection Digital output 3 digital outputs, 24 V (B-type) Configurable outputs Output by logical expressions, Additional image storage possibility via FTP Output current ≤ 100 mA Standard outputs No object detected, Everything OK, Detail error Maximum encoder frequency 40 kHz External illumination 5 V TTL I/O box extension 5 x inputs for object selection, 16 outputs Ambient data Shock load EN 60068-2-27 Vibration load IEC 60068-2-6 Ambient operating temperature 0 °C … +45 °C Storage temperature –20 °C … +70 °C Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731 İlgili ürünler V2D652R-MCXXA6 – 1063404SICKVision Sensor ₺28.000,00 Ürüne Git ISD400-7321 – 1071580SICKVision Sensor ₺850,00 Ürüne Git ISD400-7311 – 1071522SICKVision Sensor ₺850,00 Ürüne Git ISD400-7322 – 1071581SICKVision Sensor ₺850,00 Ürüne Git
Tecnichal data Features Task Presence inspection Quality check Measuring, 2D Position determination Technology 2D snapshot Product category Configurable Toolkit Object locator Pixel counter Edge pixel counter Pattern Blob Finder Polygon Edge Circle Distance Angle Edge counter Find maximum Sensor CMOS matrix sensor, grayscale values Optical focus Adjustable focus (manually) Calibration Perspective and lens distortion correction, mm results Robot coordinate alignment ✔ Working distance ≥ 50 mm LED class Risk group 1 (low risk, IEC62471 : 2006) Offline support Emulator Lens S-mount Optical format 1/3″ Mechanics/electronics Connection type M12, 12-pin male connector M12, 4-pin female connector Supply voltage 24 V DC, ± 20 % Ripple < 5 Vpp Current consumption < 450 mA, without output load Enclosure rating IP67 Housing material Aluminum Dimensions (L x W x H) 100 mm x 53 mm x 38 mm Performance Sensor resolution 640 px x 480 px Scan/frame rate 40 fps Number of inspections 64 Reference images 32 objects Interfaces Ethernet ✔ , TCP/IP Data transmission rate 100 Mbit/s EtherNet/IP™ ✔ Data transmission rate 100 Mbit/s Operator interfaces Web server Configuration software SOPAS ET Data storage and retrieval Log for 30 images, record images on PC, store images to FTP Ethernet communication Web API Digital input 4 inputs (24 V) Configurable inputs External trigger, encoder input, External teach, reference object selection Digital output 3 digital outputs, 24 V (B-type) Configurable outputs Output by logical expressions, Additional image storage possibility via FTP Output current ≤ 100 mA Standard outputs No object detected, Everything OK, Detail error Maximum encoder frequency 40 kHz External illumination 5 V TTL I/O box extension 5 x inputs for object selection, 16 outputs Ambient data Shock load EN 60068-2-27 Vibration load IEC 60068-2-6 Ambient operating temperature 0 °C … +45 °C Storage temperature –20 °C … +70 °C Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731
