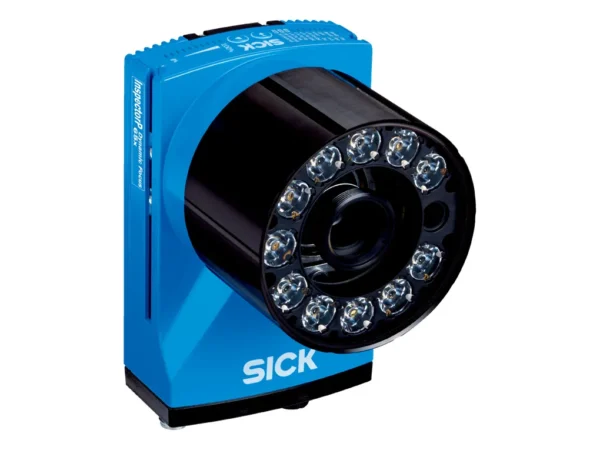

| Features |
| Task |
Classification
Identifying
Position determination
1D code
2D code
Presence inspection
Quality check
Measuring, 2D
OCR
|
| Technology |
2D snapshot |
| Product category |
Programmable |
| SensorApp |
Nova InspectorP |
| License included |
Quality Inspection License
Optional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset. |
| Sensor |
CMOS matrix sensor, grayscale values |
| Shutter technology |
Global-Shutter |
| Optical focus |
Dynamic focus control |
| Illumination |
Integrated |
| Illumination color |
White, LED, Visible,
Blue, LED, Visible, 455 nm
|
| Feedback spot |
Laser, Visible, green, 525 nm, ± 15 nm |
| Alignment aid |
Laser, Red, 630 nm … 680 nm |
| Laser class |
1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014) |
| LED class |
“White + feedback LED” option: risk group 1 (low risk) according to IEC 62471-1:2006-07/EN 62471-1:2008-09
Irradiance: LB: < 10 x 103 W/(m2sr) within 100 s; at a distance of ≥ 200 mm
LR: < 7 x 105 W/(m2sr) within 10 s; at a distance of ≥ 200 mm, “Blue + feedback LED” option: risk group 2 (moderate risk) according to IEC 62471-1:2006-07/EN 62471-1:2008-09 due to exposure to blue light.
Irradiance: LB: < 10 x 103 W/(m2sr) within 50 s (RG 2); at a distance of ≥ 200 mm
LR: < 7 x 105 W/(m2sr) within 10 s (RG 1); at a distance of ≥ 200 mm
Risk RG 1 (low risk) corresponding to LB < 10 x 103 W/(m2sr) within 100 s for distances > 1 m |
| Spectral range |
Approx. 400 nm … 900 nm |
|
|
|
| Mechanics/electronics |
| Connection type |
1 x M12, 17-pin male connector (serial, I/Os, voltage supply)
1 x M8, 4-pin female connector (USB, not used)
2 x M12, 8-pin female connector (Gigabit Ethernet, only one connection used)
|
| Supply voltage |
24 V DC, ± 20 % |
| Power consumption |
Typ. 20 W, ± 20 % |
| Enclosure rating |
IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02)) |
| Protection class |
III (EN 60950-1 (2014-08)) |
| Housing material |
Aluminum die cast |
| Window material |
Glass |
| Weight |
963 g |
| Dimensions (L x W x H) |
142.8 mm x 90 mm x 106.1 mm |
|
| Performance |
| Sensor resolution |
2,048 px x 2,048 px (4.2 Mpixel) |
| Scan/frame rate |
40 Hz |
|
| Interfaces |
| Serial |
✔ , RS-232, RS-422 |
| Data transmission rate |
300 Baud … 115.2 kBaud |
|
| Ethernet |
✔ , TCP/IP |
| Function |
FTP, HTTP |
| Data transmission rate |
10/100/1,000 Mbit/s |
|
| CAN |
✔ |
| Function |
SICK CAN sensor network (CAN controller/CAN device) |
|
| EtherNet/IP™ |
✔ |
| Data transmission rate |
10/100/1,000 Mbit/s |
|
| PROFINET |
✔ |
| Function |
PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2) |
| Data transmission rate |
10/100 MBit/s |
|
| Operator interfaces |
Web server |
| Configuration software |
SICK AppStudio |
| Data storage and retrieval |
Image and data logging via microSD memory card and external FTP |
| Inputs/outputs |
2 opto-decoupled inputs, 4 inputs/outputs, configurable |
| Output current |
≤ 100 mA |
| Maximum encoder frequency |
1 kHz |
| External illumination |
Via digital output (max. 24 V trigger) |
| Control elements |
2 buttons |
| Optical indicators |
21 LEDs (10 x status display, 10 x LED bar graph, 1 green feedback spot) |
| Acoustic indicators |
Beeper |
|
| Ambient data |
| Shock load |
EN 60068-2-27:2009-05 |
| Vibration load |
EN 60068-2-6:2008-02 |
| Ambient operating temperature |
0 °C … +50 °C |
| Storage temperature |
–20 °C … +70 °C |
|
| Classifications |
| ECLASS 5.0 |
27310205 |
| ECLASS 5.1.4 |
27310205 |
| ECLASS 6.0 |
27310205 |
| ECLASS 6.2 |
27310205 |
| ECLASS 7.0 |
27310205 |
| ECLASS 8.0 |
27310205 |
| ECLASS 8.1 |
27310205 |
| ECLASS 9.0 |
27310205 |
| ECLASS 10.0 |
27310205 |
| ECLASS 11.0 |
27310205 |
| ECLASS 12.0 |
27310205 |
| ETIM 5.0 |
EC001820 |
| ETIM 6.0 |
EC001820 |
| ETIM 7.0 |
EC001820 |
| ETIM 8.0 |
EC001820 |
| UNSPSC 16.0901 |
43211731 |
|
