| Features |
| Variant |

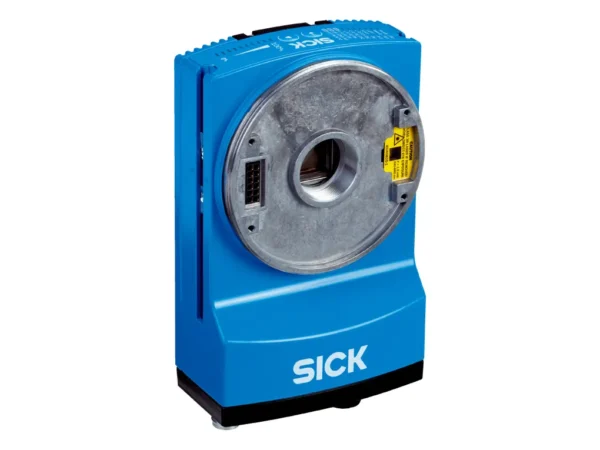

Main unit |
| Optical focus |
Adjustable focus (manually) |
| Sensor |
CMOS matrix sensor, grayscale values |
| Sensor resolution |
2,048 px x 1,088 px |
| Illumination |
To be ordered separately as accessories |
| Alignment aid |
Laser, Red, 630 nm … 680 nm |
| Laser class |
1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021) |
| Lens |
C-mount |
| Optical format |
1″ |
| Note |
To be ordered separately as accessories |
|
| Reading distance |
300 mm … 2,200 mm |
| Scanning frequency |
70 Hz, With resolution of 2 megapixels |
| Code resolution |
≥ 0.1 mm |
|
| Mechanics/electronics |
| Connection type |
1 x M12, 17-pin plug (serial, CAN, I/Os, power supply)
1 x M12, 8-pin socket (Ethernet, 1 GBit/s)
1 x M8, 4-pin socket (USB)
2 x M12, 4-pin female connector (Ethernet, 100 mBit/s)
|
| Supply voltage |
24 V DC, ± 20 % |
| Power consumption |
Typ. 20 W, ± 20 % |
| Output current |
≤ 100 mA |
| Housing |
Aluminum die cast |
| Housing color |
Light blue (RAL 5012) |
| Window material |
Plastic (To be ordered separately as accessories)
Glass (To be ordered separately as accessories)
|
| Enclosure rating |
IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02)) |
| Protection class |
III |
| Electrical safety |
EN 60950-1 (2011-01) |
| Weight |
635 g |
| Dimensions (L x W x H) |
142 mm x 89 mm x 46 mm |
| MTBF |
100,000 h |
|
| Performance |
| Readable code structures |
1D codes, Stacked, 2D codes |
| Bar code types |
GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, USPS (Postnet, Planet, USPS4SCB), Australian Post, Dutch KIX Post, Royal Mail, Swedish Post |
| 2D code types |
Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code |
| Stacked code types |
PDF417 |
| Code qualification |
On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 18004 |
| Internal image storage |
512 MB |
|
| Interfaces |
| Ethernet |
✔ , TCP/IP |
| Function |
Data interface (read result output), Service interface, FTP (image transmission) |
| Data transmission rate |
10/100/1,000 Mbit/s |
|
| PROFINET |
✔ |
| Function |
PROFINET Single Port, PROFINET Dual Port |
|
| EtherNet/IP™ |
✔ |
| Data transmission rate |
10/100/1,000 Mbit/s |
|
| Serial |
✔ , RS-232, RS-422 |
| Function |
Data interface (read result output), Service interface |
| Data transmission rate |
0.3 kBaud … 115.2 kBaud, AUX: 57.6 kBaud (RS-232) |
|
| CAN |
✔ |
| Function |
SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| Data transmission rate |
20 kbit/s … 1 Mbit/s |
|
| PROFIBUS DP |
✔ |
| Type of fieldbus integration |
Optional over external fieldbus module CDF600-2 |
|
| Digital inputs |
4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 parameter memory in CDB650/CDM420) |
| Configurable inputs |
Encoder input, external trigger |
| Digital outputs |
6 (CDB650: “Result 1”, “Result 2”, “Result 3”, “Result 4”, 2 external outputs via CMC600 or CDM420: “Result 1”, “Result 2”, 2 external outputs via CMC600 or cable with open end: “Result 1”, “Result 2”, “Result 3”, “Result 4”) |
| Configurable outputs |
Good read, External illumination control, free configurable output condition, “device ready” |
| Reading pulse |
Digital inputs, non-powered, serial interface, Ethernet, CAN, auto pulse, presentation mode |
| Optical indicators |
21 LEDs (10 x status display, 10 x LED bar graph, 1 green feedback spot) |
| Acoustic indicators |
Beeper/buzzer (can be switched off, can be assigned a function to signal a result) |
| Control elements |
2 buttons (choose and start/stop functions) |
| Operator interfaces |
Web server |
| Configuration software |
SOPAS ET |
| Memory card |
Micro SD memory card (flash card) max. 16 GB, optional |
| Data storage and retrieval |
Image and data storage via microSD memory card and external FTP |
| Maximum encoder frequency |
1 kHz |
| External illumination control |
Via digital output (max. 24 V trigger) or external illumination connection |
|
| Ambient data |
| Electromagnetic compatibility (EMC) |
EN 61000-6-2:2005-08 / EN 61000-6-3 (2007-01) |
| Vibration resistance |
EN 60068-2-6:2008-02 |
| Shock resistance |
EN 60068-2-6 |
| Ambient operating temperature |
0 °C … +50 °C |
| Storage temperature |
–20 °C … +70 °C |
| Permissible relative humidity |
90 %, Non-condensing |
| Ambient light immunity |
2,000 lx, on code |
|
| Classifications |
| ECLASS 5.0 |
27280103 |
| ECLASS 5.1.4 |
27280103 |
| ECLASS 6.0 |
27280103 |
| ECLASS 6.2 |
27280103 |
| ECLASS 7.0 |
27280103 |
| ECLASS 8.0 |
27280103 |
| ECLASS 8.1 |
27280103 |
| ECLASS 9.0 |
27280103 |
| ECLASS 10.0 |
27280103 |
| ECLASS 11.0 |
27280103 |
| ECLASS 12.0 |
27280103 |
| ETIM 5.0 |
EC002550 |
| ETIM 6.0 |
EC002550 |
| ETIM 7.0 |
EC002999 |
| ETIM 8.0 |
EC002999 |
| UNSPSC 16.0901 |
43211701 |
|
