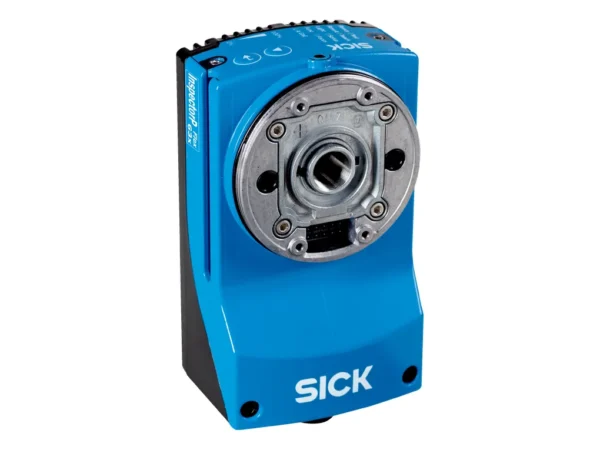

Home Vision Sensor V2D631P-2MXSXB0 – 1082299 🔍 V2D631P-2MXSXB0 – 1082299 ✉ Teklif Al Teklif Al Stok kodu: 1082299 Kategoriler: Vision Sensor Marka: SICK Açıklama Tecnichal data Features Task Classification Identifying Position determination 1D code 2D code Presence inspection Quality check Measuring, 2D OCR Technology 2D snapshot Product category Programmable SensorApp Nova InspectorP License included Quality Inspection LicenseOptional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset. Toolkit HALCON Sensor CMOS matrix sensor, grayscale values Shutter technology Global-Shutter Optical focus Adjustable focus Illumination To be ordered separately as accessories Alignment aid Laser, Red, 630 nm … 680 nm Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014) Spectral range Approx. 400 nm … 900 nm Lens S-mount Optical format 1/1.8″ Note To be ordered separately as accessories Mechanics/electronics Connection type 1 x M12, 17-pin male connector (serial, I/Os, voltage supply) 1 x M8, 4-pin female connector (USB, not used) 1 x M12, 8-pin female connector (gigabit Ethernet) 1 x M8, 4-pin female connector (external illumination) Supply voltage 12 V DC … 24 V DC, ± 20 % Power consumption Typ. 10 W, ± 20 % Enclosure rating IP67 (EN 60529 (1991-10), EN 60529/A2 (2002-02)) Protection class III (EN 60950-1 (2014-08)) Housing material Aluminum die cast Window material PMMA Weight 430 g Dimensions (L x W x H) 108 mm x 63 mm x 46 mm Performance Sensor resolution 1,280 px x 1,024 px (1.3 Mpixel) Scan/frame rate 50 Hz Interfaces Serial ✔ , RS-232, RS-422 Data transmission rate 300 Baud … 115.2 kBaud Ethernet ✔ , TCP/IP Function FTP, HTTP Data transmission rate 10/100/1,000 Mbit/s CAN ✔ Function SICK CAN sensor network (CAN controller/CAN device) EtherNet/IP™ ✔ Data transmission rate 10/100/1,000 Mbit/s PROFINET ✔ Function PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2) Data transmission rate 10/100 MBit/s Operator interfaces Web server Configuration software SICK AppStudio Data storage and retrieval Image and data logging via microSD memory card and external FTP Inputs/outputs 2 opto-decoupled inputs, 4 inputs/outputs, configurable Output current ≤ 100 mA Maximum encoder frequency 1 kHz External illumination Via digital output (max. 24 V trigger) or external illumination connection Control elements 2 buttons Optical indicators 11 LEDs (5 x status display, 5 x LED bar graph, 1 green/red feedback spot) Acoustic indicators Beeper Ambient data Shock load EN 60068-2-27:2009-05 Vibration load EN 60068-2-6:2008-02 Ambient operating temperature 0 °C … +50 °C Storage temperature –20 °C … +70 °C Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731 İlgili ürünler VSPM-6B2113 – 1064565SICKVision Sensor ₺28.000,00 Ürüne Git I12-SA205 – 1064506SICKVision Sensor ₺850,00 Ürüne Git V2D654R-MEBKA6 – 1072316SICKVision Sensor ₺28.000,00 Ürüne Git I16-SA205 – 1064508SICKVision Sensor ₺850,00 Ürüne Git
Tecnichal data Features Task Classification Identifying Position determination 1D code 2D code Presence inspection Quality check Measuring, 2D OCR Technology 2D snapshot Product category Programmable SensorApp Nova InspectorP License included Quality Inspection LicenseOptional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset. Toolkit HALCON Sensor CMOS matrix sensor, grayscale values Shutter technology Global-Shutter Optical focus Adjustable focus Illumination To be ordered separately as accessories Alignment aid Laser, Red, 630 nm … 680 nm Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014) Spectral range Approx. 400 nm … 900 nm Lens S-mount Optical format 1/1.8″ Note To be ordered separately as accessories Mechanics/electronics Connection type 1 x M12, 17-pin male connector (serial, I/Os, voltage supply) 1 x M8, 4-pin female connector (USB, not used) 1 x M12, 8-pin female connector (gigabit Ethernet) 1 x M8, 4-pin female connector (external illumination) Supply voltage 12 V DC … 24 V DC, ± 20 % Power consumption Typ. 10 W, ± 20 % Enclosure rating IP67 (EN 60529 (1991-10), EN 60529/A2 (2002-02)) Protection class III (EN 60950-1 (2014-08)) Housing material Aluminum die cast Window material PMMA Weight 430 g Dimensions (L x W x H) 108 mm x 63 mm x 46 mm Performance Sensor resolution 1,280 px x 1,024 px (1.3 Mpixel) Scan/frame rate 50 Hz Interfaces Serial ✔ , RS-232, RS-422 Data transmission rate 300 Baud … 115.2 kBaud Ethernet ✔ , TCP/IP Function FTP, HTTP Data transmission rate 10/100/1,000 Mbit/s CAN ✔ Function SICK CAN sensor network (CAN controller/CAN device) EtherNet/IP™ ✔ Data transmission rate 10/100/1,000 Mbit/s PROFINET ✔ Function PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2) Data transmission rate 10/100 MBit/s Operator interfaces Web server Configuration software SICK AppStudio Data storage and retrieval Image and data logging via microSD memory card and external FTP Inputs/outputs 2 opto-decoupled inputs, 4 inputs/outputs, configurable Output current ≤ 100 mA Maximum encoder frequency 1 kHz External illumination Via digital output (max. 24 V trigger) or external illumination connection Control elements 2 buttons Optical indicators 11 LEDs (5 x status display, 5 x LED bar graph, 1 green/red feedback spot) Acoustic indicators Beeper Ambient data Shock load EN 60068-2-27:2009-05 Vibration load EN 60068-2-6:2008-02 Ambient operating temperature 0 °C … +50 °C Storage temperature –20 °C … +70 °C Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731
