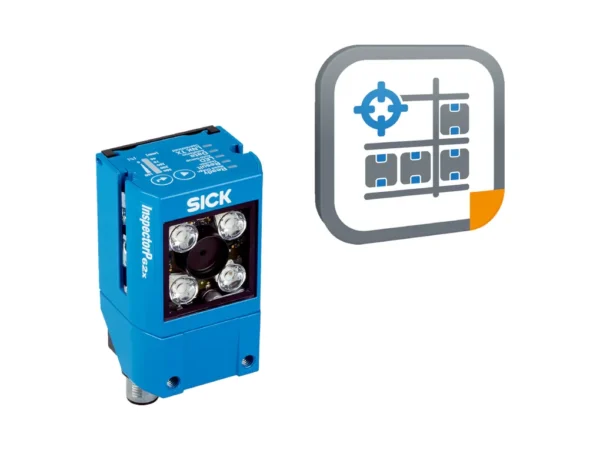

Home Vision Sensor V2D621P-2MCFFB6S01 – 1121695 🔍 V2D621P-2MCFFB6S01 – 1121695 ✉ Teklif Al Teklif Al Stok kodu: 1121695 Kategoriler: Vision Sensor Marka: SICK Açıklama Tecnichal data Features Task Position determination Navigation Technology 2D snapshot Product category Configurable Sensor CMOS matrix sensor, grayscale values Shutter technology Global-Shutter Optical focus Adjustable focus (electric) Working distance 50 mm … 1,950 mm Illumination Integrated Illumination color Red, LED, Visible, 617 nm, ± 15 nm Blue, LED, Visible, 470 nm, ± 15 nm Feedback spot LED, Visible, green, 525 nm, ± 15 nm Cold storage applications ✔ Lens Focal length 17 mm Mechanics/electronics Connection type 1 x M12, 17-pin male connector (serial, I/Os, voltage supply) 1 x M12, 4-pin female connector (Ethernet) Supply voltage 12 V DC … 24 V DC, ± 10 % Power consumption Typ. 4 … 6 W Enclosure rating IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02)) Protection class III Housing material Aluminum die cast Window material PMMA Weight 170 g Dimensions (L x W x H) 71 mm x 43 mm x 35.6 mm Performance Sensor resolution 1,280 px x 1,024 px (1.3 Mpixel) Repeatability 0.05 mm … 0.1 mm typical Target Drill holes (Hole diameter 8 mm … 15 mm) Interfaces Ethernet ✔ , TCP/IP Function FTP, HTTP Data transmission rate 10/100 MBit/s PROFINET ✔ Data transmission rate 10/100 MBit/s Operator interfaces Web-Interface Configuration software Web-Interface, PLC interface Data storage and retrieval Image and data logging via microSD memory card and external FTP Digital output 4 digital outputs, 24 V Output current ≤ 100 mA Optical indicators 11 LEDs (5 x status display, 5 x LED bar graph, 1 green/red feedback spot) Ambient data Shock load EN 60068-2-27:2009-05 Vibration load EN 60068-2-6:2008-02 Ambient operating temperature 0 °C … +50 °C –35 °C … +40 °C, Special cold storage conditions apply that must be complied with at all times. See sick.com/8027368. Storage temperature –35 °C … +70 °C Depth precision 0.05 mm … 0.1 mm typical Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731 İlgili ürünler ISD400-7312 – 1071579SICKVision Sensor ₺850,00 Ürüne Git V2D642R-MCXXH6 – 1071472SICKVision Sensor ₺28.000,00 Ürüne Git I12-SB215 – 1064507SICKVision Sensor ₺850,00 Ürüne Git ISD400-7222 – 1065103SICKVision Sensor ₺850,00 Ürüne Git
Tecnichal data Features Task Position determination Navigation Technology 2D snapshot Product category Configurable Sensor CMOS matrix sensor, grayscale values Shutter technology Global-Shutter Optical focus Adjustable focus (electric) Working distance 50 mm … 1,950 mm Illumination Integrated Illumination color Red, LED, Visible, 617 nm, ± 15 nm Blue, LED, Visible, 470 nm, ± 15 nm Feedback spot LED, Visible, green, 525 nm, ± 15 nm Cold storage applications ✔ Lens Focal length 17 mm Mechanics/electronics Connection type 1 x M12, 17-pin male connector (serial, I/Os, voltage supply) 1 x M12, 4-pin female connector (Ethernet) Supply voltage 12 V DC … 24 V DC, ± 10 % Power consumption Typ. 4 … 6 W Enclosure rating IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02)) Protection class III Housing material Aluminum die cast Window material PMMA Weight 170 g Dimensions (L x W x H) 71 mm x 43 mm x 35.6 mm Performance Sensor resolution 1,280 px x 1,024 px (1.3 Mpixel) Repeatability 0.05 mm … 0.1 mm typical Target Drill holes (Hole diameter 8 mm … 15 mm) Interfaces Ethernet ✔ , TCP/IP Function FTP, HTTP Data transmission rate 10/100 MBit/s PROFINET ✔ Data transmission rate 10/100 MBit/s Operator interfaces Web-Interface Configuration software Web-Interface, PLC interface Data storage and retrieval Image and data logging via microSD memory card and external FTP Digital output 4 digital outputs, 24 V Output current ≤ 100 mA Optical indicators 11 LEDs (5 x status display, 5 x LED bar graph, 1 green/red feedback spot) Ambient data Shock load EN 60068-2-27:2009-05 Vibration load EN 60068-2-6:2008-02 Ambient operating temperature 0 °C … +50 °C –35 °C … +40 °C, Special cold storage conditions apply that must be complied with at all times. See sick.com/8027368. Storage temperature –35 °C … +70 °C Depth precision 0.05 mm … 0.1 mm typical Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731
