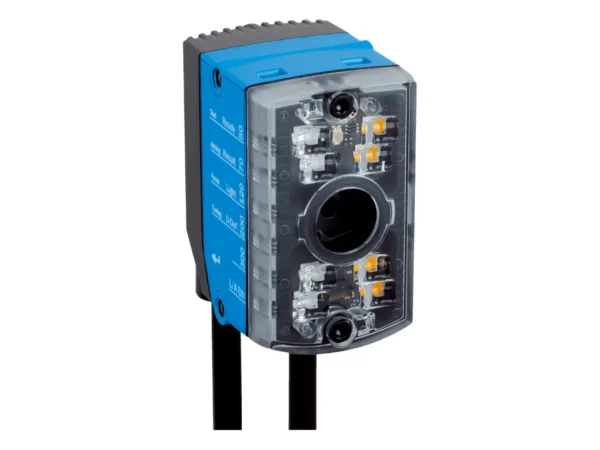

| Features |
| Task |
Classification
Identifying
Position determination
1D code
2D code
Presence inspection
Quality check
Measuring, 2D
OCR
|
| Technology |
2D snapshot |
| Product category |
Programmable, configurable |
| SensorApp |
Nova InspectorP |
| License included |
Quality Inspection License Optional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset. |
| Toolkit |
SICK algorithm API
HALCON
|
| Sensor |
CMOS matrix sensor, grayscale values |
| Shutter technology |
Global-Shutter |
| Optical focus |
Adjustable focus (manually) |
| Working distance |
50 mm … 300 mm, with internal illumination, can be extended to longer distances when using external illumination |
| Illumination |
Integrated |
| Illumination color |
Amber, LED, Visible, 617 nm, ± 50 nm
Blue, LED, Visible, 470 nm, ± 15 nm
|
| Feedback spot |
LED, Visible, green, 525 nm, ± 15 nm |
| Alignment aid |
LED, Red, 630 nm, ± 15 nm |
| Laser class |
1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (IEC 60825-1:2014, EN 60825-1:2014) |
| LED class |
Risk group 1 (IEC 62471 (2006-07) / EN 62471 (2008-09)) |
| Spectral range |
Approx. 400 nm … 900 nm |
|
|
|
| Mechanics/electronics |
| Connection type |
1 x M12, 17-pin male connector (serial, I/Os, voltage supply)
1 x M12, 4-pin female connector (Ethernet)
|
| Supply voltage |
12 V DC … 24 V DC, ± 15 % |
| Power consumption |
Typ. 3.5 W |
| Enclosure rating |
IP54 (EN 60529, EN 60529/A2) |
| Protection class |
III |
| Housing material |
Zinc diecast |
| Window material |
PMMA |
| Weight |
165 g |
| Dimensions (L x W x H) |
50 mm x 40.3 mm x 29.6 mm |
| MTBF |
75,000 h |
|
| Performance |
| Sensor resolution |
1,280 px x 960 px (1.2 Mpixel) |
| Scan/frame rate |
40 Hz |
|
| Interfaces |
| Serial |
✔ , RS-232 |
| Remark |
Not yet available in the pre-installed Quality Inspection SensorApp |
| Data transmission rate |
300 Baud … 115.2 kBaud |
|
| Ethernet |
✔ , TCP/IP |
| Function |
FTP |
| Data transmission rate |
10/100 MBit/s |
|
| EtherNet/IP™ |
✔ |
| Data transmission rate |
10/100 MBit/s |
|
| PROFINET |
✔ |
| Function |
PROFINET Single Port |
| Data transmission rate |
10/100 MBit/s |
|
| Operator interfaces |
Web server |
| Configuration software |
Web GUI (SensorApp configuration), SICK AppManager (IP determination and configuration, SensorApp installation), SICK AppStudio (programming) |
| Data storage and retrieval |
Image and data logging via external FTP |
| Inputs/outputs |
2 × input, physical, switching
3 x configurable input / output, physical, switching
|
| Output current |
≤ 50 mA |
| Maximum encoder frequency |
300 Hz |
| External illumination |
Via digital output (max. 24 V trigger) |
| Control elements |
1 pushbutton |
| Optical indicators |
9 LEDs (6 status displays, 2 LED alignment aids, 1 feedback spot) |
|
| Ambient data |
| Shock load |
EN 60068-2-27:2009-05 |
| Vibration load |
EN 60068-2-6:2008-02 |
| Ambient operating temperature |
0 °C … +40 °C |
| Storage temperature |
–20 °C … +70 °C |
|
| Classifications |
| ECLASS 5.0 |
27310205 |
| ECLASS 5.1.4 |
27310205 |
| ECLASS 6.0 |
27310205 |
| ECLASS 6.2 |
27310205 |
| ECLASS 7.0 |
27310205 |
| ECLASS 8.0 |
27310205 |
| ECLASS 8.1 |
27310205 |
| ECLASS 9.0 |
27310205 |
| ECLASS 10.0 |
27310205 |
| ECLASS 11.0 |
27310205 |
| ECLASS 12.0 |
27310205 |
| ETIM 5.0 |
EC001820 |
| ETIM 6.0 |
EC001820 |
| ETIM 7.0 |
EC001820 |
| ETIM 8.0 |
EC001820 |
| UNSPSC 16.0901 |
43211731 |
|
