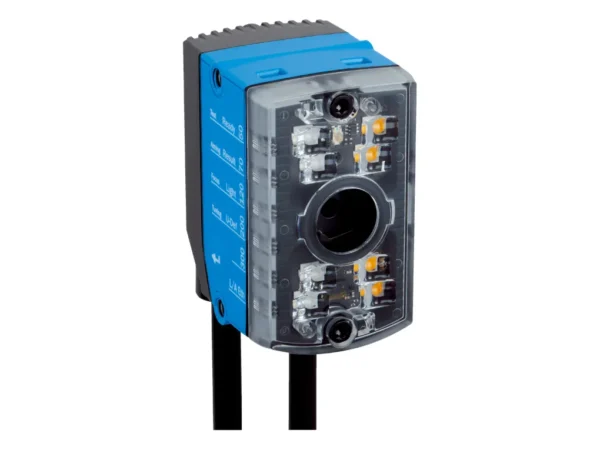

| Features |
| Optical focus |
Adjustable focus (manually) |
| Sensor |
CMOS matrix sensor, grayscale values |
| Sensor resolution |
640 px x 480 px |
| Illumination |
Integrated |
| Illumination color |
Amber, LED, Visible, 617 nm, ± 15 nm
Blue, LED, Visible, 470 nm, ± 15 nm
|
| Feedback spot |
LED, Visible, green, 525 nm, ± 15 nm
LED, Visible, Red, 635 nm, ± 15 nm
|
| Alignment aid |
LED, Red, 630 nm, ± 15 nm |
| LED class |
1 (IEC 62471:2006-07, EN 62471:2008-09) |
| Laser class |
1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021) |
|
|
| Reading distance |
50 mm … 300 mm, with internal illumination, can be extended to longer distances when using external illumination |
| Scanning frequency |
40 Hz |
| Code resolution |
0.1 mm |
|
| Mechanics/electronics |
| Connection type |
1 x Cable with M12 male connector, 17-pin
1 x Cable with M12 Ethernet socket, 4-pin
Circular plug-in connector
|
| Supply voltage |
12 V DC … 24 V DC, ± 15 % |
| Power consumption |
Typ. 3.5 W |
| Output current |
≤ 50 mA |
| Housing |
Zinc diecast |
| Housing color |
Light blue (RAL 5012) |
| Window material |
Plastic |
| Enclosure rating |
IP54 (EN 60529, EN 60529/A2) |
| Protection class |
III |
| Electrical safety |
EN 62368-1 |
| Weight |
165 g |
| Dimensions (L x W x H) |
50 mm x 40.3 mm x 29.6 mm |
|
| Performance |
| Readable code structures |
1D codes, 2D codes, Stacked |
| Bar code types |
GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey Code, MSI/Plessey, Telepen, postal codes |
| 2D code types |
Data Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code, MaxiCode |
| Code qualification |
On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 18004 |
| No. of codes per reading interval |
1 … 50 |
| No. of characters per reading interval |
500 (for multiplexer function in CAN operation) |
| Exposure time |
≥ 60 µs |
| Automated parameter switching |
✔ |
|
| Interfaces |
| Ethernet |
✔ , TCP/IP |
| Function |
Data interface (read result output), FTP (image transmission) |
| Data transmission rate |
10/100 MBit/s |
|
| PROFINET |
✔ |
| Function |
PROFINET Single Port |
| Data transmission rate |
10/100 MBit/s |
|
| EtherNet/IP™ |
✔ |
| Data transmission rate |
10/100 MBit/s |
|
| Serial |
✔ , RS-232 |
| Function |
Data interface (read result output) |
| Data transmission rate |
0.3 kBaud … 115.2 kBaud |
|
| CAN |
✔ |
| Function |
SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| Data transmission rate |
20 kbit/s … 1 Mbit/s |
|
| CANopen |
✔ |
| Data transmission rate |
20 kbit/s … 1 Mbit/s |
|
| Digital inputs |
2 (physical, switching, “Sensor 1”, “Sensor 2”) |
| Digital outputs |
3 (physical, switching, “Result 1” … “Result 3”) |
| Reading pulse |
Digital inputs, non-powered, serial interface, Ethernet, CAN, auto pulse, presentation mode |
| Optical indicators |
9 LEDs (6 status displays, 2 LED alignment aids, 1 feedback spot) |
| Control elements |
1 pushbutton (select and start/stop functions) |
| Operator interfaces |
Web server |
| Configuration software |
SOPAS ET |
| Data storage and retrieval |
Image and data storage via external FTP |
| Maximum encoder frequency |
300 Hz |
| External illumination control |
Via digital output (max. 24 V trigger) |
|
| Ambient data |
| Electromagnetic compatibility (EMC) |
EN 61000-6-3:2007+A1:2011 / IEC 61000-6-3:2006+AMD1:2010
EN 61000-6-2:2005-08
|
| Vibration resistance |
EN 60068-2-6:2008-02 |
| Shock resistance |
EN 60068-2-27:2009-05 |
| Ambient operating temperature |
0 °C … +40 °C |
| Storage temperature |
–20 °C … +70 °C |
| Permissible relative humidity |
90 %, Non-condensing |
|
| Classifications |
| ECLASS 5.0 |
27280103 |
| ECLASS 5.1.4 |
27280103 |
| ECLASS 6.0 |
27280103 |
| ECLASS 6.2 |
27280103 |
| ECLASS 7.0 |
27280103 |
| ECLASS 8.0 |
27280103 |
| ECLASS 8.1 |
27280103 |
| ECLASS 9.0 |
27280103 |
| ECLASS 10.0 |
27280103 |
| ECLASS 11.0 |
27280103 |
| ECLASS 12.0 |
27280103 |
| ETIM 5.0 |
EC002550 |
| ETIM 6.0 |
EC002550 |
| ETIM 7.0 |
EC002999 |
| ETIM 8.0 |
EC002999 |
| UNSPSC 16.0901 |
43211701 |
|
