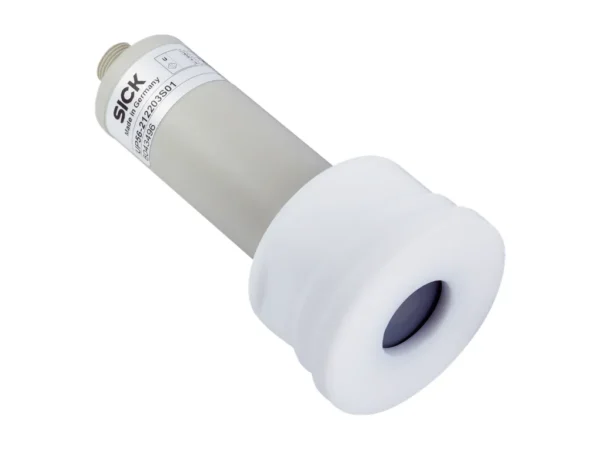

Home Ultrasonik Sensörler UP56-216148 ULTRASONIC SENSOR – 6049450 🔍 UP56-216148 ULTRASONIC SENSOR – 6049450 ✉ Teklif Al Teklif Al Stok kodu: 6049450 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Features Medium Fluids Measurement Switch, Continuous Measuring range in tank 65 mm … 700 mm Measuring range immersion tube 65 mm … 1,500 mm Process pressure 0 bar … 6 barGauge pressure Process temperature –25 °C … +85 °C Performance Accuracy of sensor element ≤ 1 % Reproducibility ± 0.15 % Resolution ≤ 0.18 mm Response time ≤ 84 ms MTTF > 100 years Electronics Supply voltage 9 V DC … 30 V DC Residual ripple ± 10 % Power consumption ≤ 80 mA Protection class III Connection type Round connector M12 x 1, 5-pin Output signal 1 x PNP + 4 mA … 20 mA / 0 V … 10 V Hysteresis 5 mm Output current 200 mA Time delay before availability ≤ 300 ms Enclosure rating IP67 Ultrasonic frequency 200 kHz Ultrasonic transducer PTFE coating, FFKM Mechanics Process connection GF connection D40 Housing material PTFE, PP, FKM Housing design Standard Weight 210 g Ambient data Ambient operating temperature –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200506 ECLASS 5.1.4 27200506 ECLASS 6.0 27200506 ECLASS 6.2 27200506 ECLASS 7.0 27200506 ECLASS 8.0 27200506 ECLASS 8.1 27200506 ECLASS 9.0 27200506 ECLASS 10.0 27200506 ECLASS 11.0 27200506 ECLASS 12.0 27200506 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950 İlgili ürünler UM30-211112 ULTRASONIC SENSOR – 6037664SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git ULTRASONIC REDIRECT.F. ULTRASONIC SENSOR – 5323658SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-211118 ULTRASONIC SENSOR – 6036921SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git 873P 900mm Ultrasonic Sensor – 873P-D18P2-900-D5ALLEN BRADLEYUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Fluids Measurement Switch, Continuous Measuring range in tank 65 mm … 700 mm Measuring range immersion tube 65 mm … 1,500 mm Process pressure 0 bar … 6 barGauge pressure Process temperature –25 °C … +85 °C Performance Accuracy of sensor element ≤ 1 % Reproducibility ± 0.15 % Resolution ≤ 0.18 mm Response time ≤ 84 ms MTTF > 100 years Electronics Supply voltage 9 V DC … 30 V DC Residual ripple ± 10 % Power consumption ≤ 80 mA Protection class III Connection type Round connector M12 x 1, 5-pin Output signal 1 x PNP + 4 mA … 20 mA / 0 V … 10 V Hysteresis 5 mm Output current 200 mA Time delay before availability ≤ 300 ms Enclosure rating IP67 Ultrasonic frequency 200 kHz Ultrasonic transducer PTFE coating, FFKM Mechanics Process connection GF connection D40 Housing material PTFE, PP, FKM Housing design Standard Weight 210 g Ambient data Ambient operating temperature –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200506 ECLASS 5.1.4 27200506 ECLASS 6.0 27200506 ECLASS 6.2 27200506 ECLASS 7.0 27200506 ECLASS 8.0 27200506 ECLASS 8.1 27200506 ECLASS 9.0 27200506 ECLASS 10.0 27200506 ECLASS 11.0 27200506 ECLASS 12.0 27200506 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950
