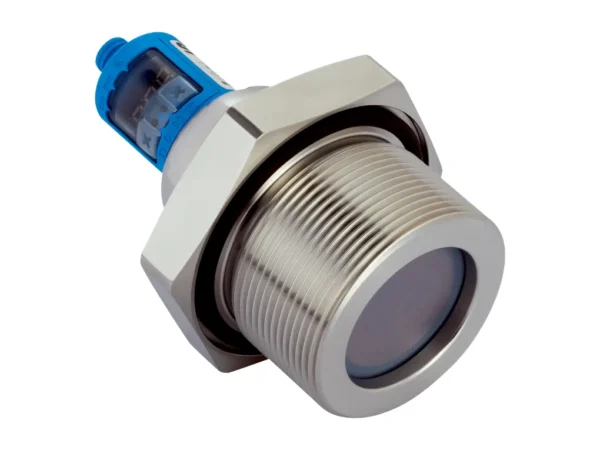

Home Ultrasonik Sensörler UP56-214118 ULTRASCHALLSENSOR – 6041693 🔍 UP56-214118 ULTRASCHALLSENSOR – 6041693 ✉ Teklif Al Teklif Al Stok kodu: 6041693 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Features Medium Fluids, bulk solids Measurement Switch, Continuous Measuring range in tank 350 mm … 3,400 mm Measuring range immersion tube 350 mm … 8,000 mm Process pressure 0 bar … 6 barGauge pressure Process temperature –25 °C … +70 °C Performance Accuracy of sensor element ≤ 2 % Reproducibility ± 0.15 % Resolution ≤ 0.18 mm Response time ≤ 240 ms MTTF > 100 years Display ✔ Electronics Supply voltage 9 V DC … 30 V DC Residual ripple ± 10 % Power consumption ≤ 80 mA Protection class III Connection type Round connector M12 x 1, 5-pin Output signal 1 x PNP + 4 mA … 20 mA / 0 V … 10 V Hysteresis 50 mm Output current 200 mA Time delay before availability ≤ 300 ms Enclosure rating IP67 Ultrasonic frequency 120 kHz Ultrasonic transducer PTFE coating, FFKM Mechanics Process connection G 2 A PN 6 Housing material Stainless steel 1.4571, PBT, TPU, FKM Housing design Standard Weight 1,200 g Ambient data Ambient operating temperature –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200506 ECLASS 5.1.4 27200506 ECLASS 6.0 27200506 ECLASS 6.2 27200506 ECLASS 7.0 27200506 ECLASS 8.0 27200506 ECLASS 8.1 27200506 ECLASS 9.0 27200506 ECLASS 10.0 27200506 ECLASS 11.0 27200506 ECLASS 12.0 27200506 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950 İlgili ürünler UM30-215118 ULTRASONIC SENSOR – 6036925SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git 873P 400mm Ultrasonic Sensor – 873P-D18P2-400-D5ALLEN BRADLEYUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-213118 ULTRASONIC SENSOR – 6036923SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-212111 ULTRASONIC SENSOR – 6037661SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Fluids, bulk solids Measurement Switch, Continuous Measuring range in tank 350 mm … 3,400 mm Measuring range immersion tube 350 mm … 8,000 mm Process pressure 0 bar … 6 barGauge pressure Process temperature –25 °C … +70 °C Performance Accuracy of sensor element ≤ 2 % Reproducibility ± 0.15 % Resolution ≤ 0.18 mm Response time ≤ 240 ms MTTF > 100 years Display ✔ Electronics Supply voltage 9 V DC … 30 V DC Residual ripple ± 10 % Power consumption ≤ 80 mA Protection class III Connection type Round connector M12 x 1, 5-pin Output signal 1 x PNP + 4 mA … 20 mA / 0 V … 10 V Hysteresis 50 mm Output current 200 mA Time delay before availability ≤ 300 ms Enclosure rating IP67 Ultrasonic frequency 120 kHz Ultrasonic transducer PTFE coating, FFKM Mechanics Process connection G 2 A PN 6 Housing material Stainless steel 1.4571, PBT, TPU, FKM Housing design Standard Weight 1,200 g Ambient data Ambient operating temperature –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200506 ECLASS 5.1.4 27200506 ECLASS 6.0 27200506 ECLASS 6.2 27200506 ECLASS 7.0 27200506 ECLASS 8.0 27200506 ECLASS 8.1 27200506 ECLASS 9.0 27200506 ECLASS 10.0 27200506 ECLASS 11.0 27200506 ECLASS 12.0 27200506 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950
