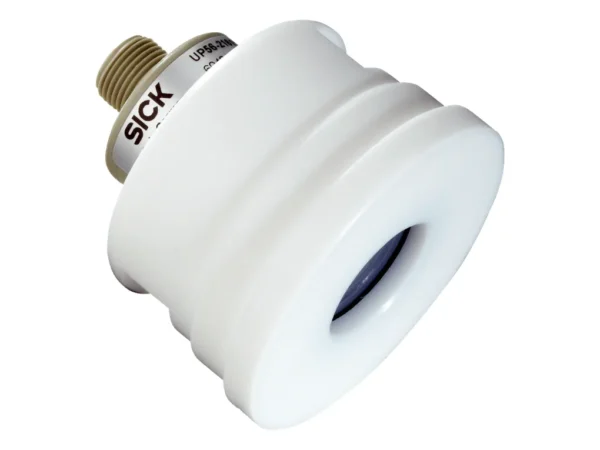

Home Ultrasonik Sensörler UP56-211156 ULTRASONIC SENSOR – 6050441 🔍 UP56-211156 ULTRASONIC SENSOR – 6050441 ✉ Teklif Al Teklif Al Stok kodu: 6050441 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Features Medium Fluids Measurement Switch, Continuous Measuring range in tank 30 mm … 250 mm Measuring range immersion tube 30 mm … 500 mm Process pressure 0 bar … 2 barGauge pressure for UP56 Pure mini Process temperature –25 °C … +85 °C Performance Accuracy of sensor element ≤ 1 % Reproducibility ± 0.15 % Resolution ≤ 0.025 mm Response time ≤ 84 ms MTTF > 100 years Electronics Supply voltage 9 V DC … 30 V DC Residual ripple ± 10 % Power consumption ≤ 80 mA Protection class III Connection type Round connector M12 x 1, 5-pin Output signal 4 mA … 20 mA Hysteresis 3 mm Output current 200 mA Time delay before availability ≤ 300 ms Enclosure rating IP67 Ultrasonic frequency 320 kHz Ultrasonic transducer PTFE coating, FFKM Mechanics Process connection GF connection D40 Housing material PTFE, PP, FKM Housing design Compact Weight + 145 g UP56 Pure Mini Ambient data Ambient operating temperature –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200506 ECLASS 5.1.4 27200506 ECLASS 6.0 27200506 ECLASS 6.2 27200506 ECLASS 7.0 27200506 ECLASS 8.0 27200506 ECLASS 8.1 27200506 ECLASS 9.0 27200506 ECLASS 10.0 27200506 ECLASS 11.0 27200506 ECLASS 12.0 27200506 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950 İlgili ürünler UM30-212113 ULTRASONIC SENSOR – 6036917SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-214111 ULTRASONIC SENSOR – 6037662SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git RightSound Ultrasonic Sensor, Receiver, 4 Pin Micro QD on Pigtail – 873E-RDTT0750F4ALLEN BRADLEYUltrasonik Sensörler ₺4.200,00 Ürüne Git ULTRASONIC REDIRECT.F. ULTRASONIC SENSOR – 5323658SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Fluids Measurement Switch, Continuous Measuring range in tank 30 mm … 250 mm Measuring range immersion tube 30 mm … 500 mm Process pressure 0 bar … 2 barGauge pressure for UP56 Pure mini Process temperature –25 °C … +85 °C Performance Accuracy of sensor element ≤ 1 % Reproducibility ± 0.15 % Resolution ≤ 0.025 mm Response time ≤ 84 ms MTTF > 100 years Electronics Supply voltage 9 V DC … 30 V DC Residual ripple ± 10 % Power consumption ≤ 80 mA Protection class III Connection type Round connector M12 x 1, 5-pin Output signal 4 mA … 20 mA Hysteresis 3 mm Output current 200 mA Time delay before availability ≤ 300 ms Enclosure rating IP67 Ultrasonic frequency 320 kHz Ultrasonic transducer PTFE coating, FFKM Mechanics Process connection GF connection D40 Housing material PTFE, PP, FKM Housing design Compact Weight + 145 g UP56 Pure Mini Ambient data Ambient operating temperature –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200506 ECLASS 5.1.4 27200506 ECLASS 6.0 27200506 ECLASS 6.2 27200506 ECLASS 7.0 27200506 ECLASS 8.0 27200506 ECLASS 8.1 27200506 ECLASS 9.0 27200506 ECLASS 10.0 27200506 ECLASS 11.0 27200506 ECLASS 12.0 27200506 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950
