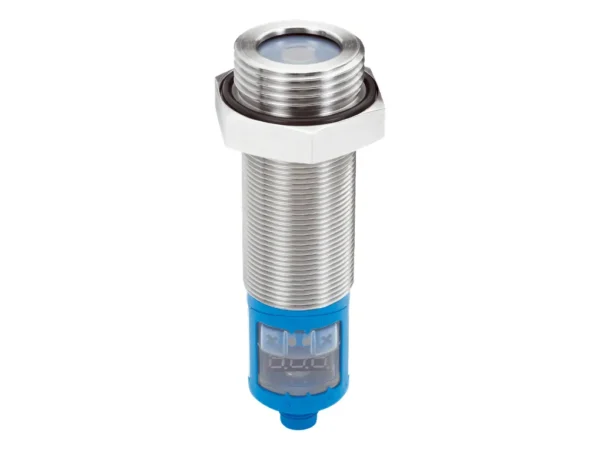

Home Ultrasonik Sensörler UP56-211115 – 6073255 🔍 UP56-211115 – 6073255 ✉ Teklif Al Teklif Al Stok kodu: 6073255 Kategoriler: Ultrasonik Sensörler Marka: SICK Açıklama Tecnichal data Features Medium Fluids, bulk solids Measurement Switch, Continuous Measuring range in tank 30 mm … 250 mm Measuring range immersion tube 30 mm … 990 mm Process pressure 0 bar … 6 barGauge pressure Process temperature –25 °C … +70 °C IO-Link ✔ Performance Accuracy of sensor element ≤ 2 % Reproducibility ± 0.15 % Resolution ≤ 0.18 mm Response time ≤ 68 ms MTTF > 100 years Display ✔ Electronics Supply voltage 9 V DC … 30 V DC Residual ripple ± 10 % Power consumption ≤ 80 mA Protection class III Connection type Round connector M12 x 1, 5-pin Output signal 1 x push-pull: IO-Link 1.1 (process data, diagnostics, parameterization, data repository) Hysteresis 3 mm Output current 200 mA Time delay before availability ≤ 300 ms Enclosure rating IP67 Ultrasonic frequency 320 kHz Ultrasonic transducer PTFE coating, FFKM Mechanics Process connection G 1 A Housing material Stainless steel 1.4571, PBT, TPU, FKM Housing design Standard Weight + 210 g Ambient data Ambient operating temperature –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200506 ECLASS 5.1.4 27200506 ECLASS 6.0 27200506 ECLASS 6.2 27200506 ECLASS 7.0 27200506 ECLASS 8.0 27200506 ECLASS 8.1 27200506 ECLASS 9.0 27200506 ECLASS 10.0 27200506 ECLASS 11.0 27200506 ECLASS 12.0 27200506 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950 İlgili ürünler UM30-213111 ULTRASONIC SENSOR – 6037537SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-215112 ULTRASONIC SENSOR – 6037668SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git ULTRASONIC REDIRECT.F. ULTRASONIC SENSOR – 5323658SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git UM30-211111 ULTRASONIC SENSOR – 6037660SICKUltrasonik Sensörler ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Fluids, bulk solids Measurement Switch, Continuous Measuring range in tank 30 mm … 250 mm Measuring range immersion tube 30 mm … 990 mm Process pressure 0 bar … 6 barGauge pressure Process temperature –25 °C … +70 °C IO-Link ✔ Performance Accuracy of sensor element ≤ 2 % Reproducibility ± 0.15 % Resolution ≤ 0.18 mm Response time ≤ 68 ms MTTF > 100 years Display ✔ Electronics Supply voltage 9 V DC … 30 V DC Residual ripple ± 10 % Power consumption ≤ 80 mA Protection class III Connection type Round connector M12 x 1, 5-pin Output signal 1 x push-pull: IO-Link 1.1 (process data, diagnostics, parameterization, data repository) Hysteresis 3 mm Output current 200 mA Time delay before availability ≤ 300 ms Enclosure rating IP67 Ultrasonic frequency 320 kHz Ultrasonic transducer PTFE coating, FFKM Mechanics Process connection G 1 A Housing material Stainless steel 1.4571, PBT, TPU, FKM Housing design Standard Weight + 210 g Ambient data Ambient operating temperature –25 °C … +70 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200506 ECLASS 5.1.4 27200506 ECLASS 6.0 27200506 ECLASS 6.2 27200506 ECLASS 7.0 27200506 ECLASS 8.0 27200506 ECLASS 8.1 27200506 ECLASS 9.0 27200506 ECLASS 10.0 27200506 ECLASS 11.0 27200506 ECLASS 12.0 27200506 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950
